light version
for tractors from 50 to 100 HP
working width from 125 to 185 cm
DRL bed former with double rotor
DRL bed former with double rotor at work
DRL bed former with double rotor
DRL bed former with double rotor at work
Working principle

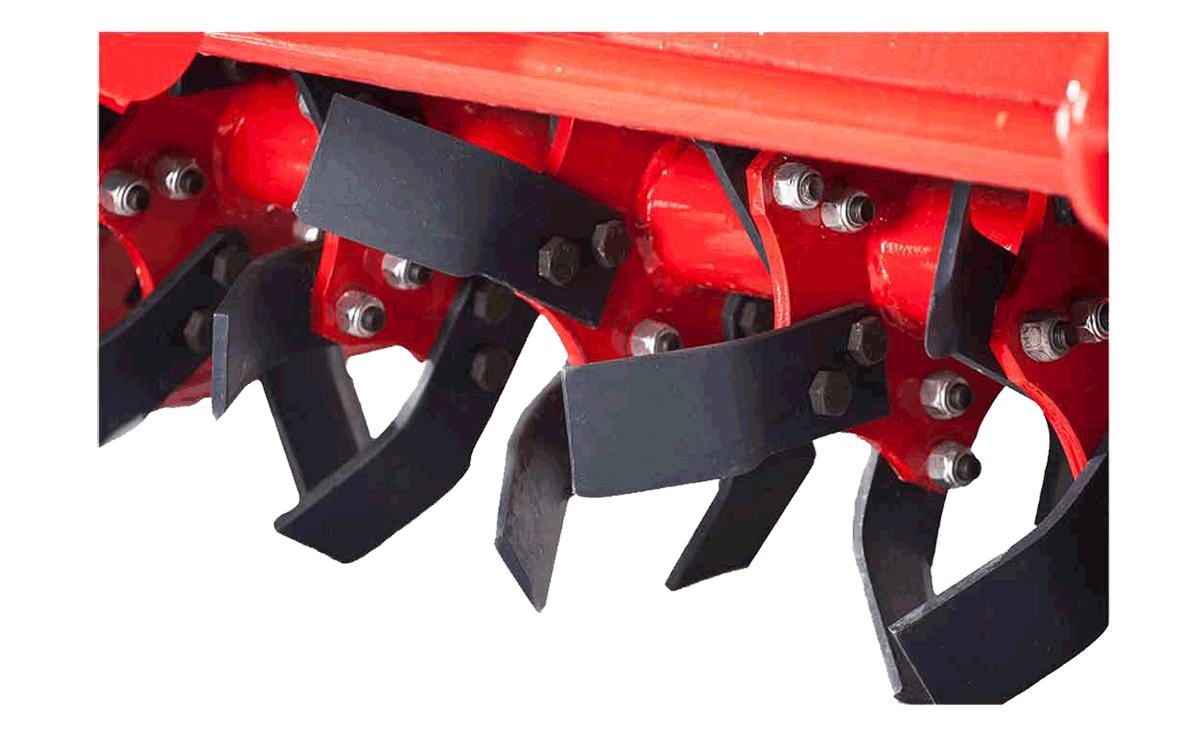

The front rotor works the soil in depth using the FRANGITER system: 6 special blades break up the clods from 10-25 cm depth without compacting the bottom layer like the traditional milling machines. The back rotor uses tools made in special steel welded on a tube of large diameter that turns in the opposite direction and, thanks to the high rotation speed, breaks the surface clods, sends the big clods to the front rotor, levels the soil and lightly presses its top.
Results obtained with the CULTI-MASSANO system:
- Proper water drainage.
- Proper humidity distribution for the plants.
- Reduction of germination’s time.
- Increase of production’s yields.
- Perfect preparation of the soil for sowing or transplanting.
Standard Equipment
- 3-Point linkage cat. 1°-2°.
- Single speed gearbox with 540 rpm PTO.
- Side transmission through reinforced chain type ASA 100 HE 1” ¼ for milling rotor.
- Side transmission through reinforced chain type ASA 100 HE 1” ¼ for rear rotor.
- N°6 Grader blades each flange Frangiter type 60x8mm.
- Double frame made with special steel IMEX 700.
- Rear rotor Ø 360 mm – Tips made with special steel Hardox 400.
- Rear bed former shaper with adjustable manual jacks.
- Rear wheels with adjustable manual jacks.
- Front discs conveyor ploughs.
- Cardan shaft with safety bolt.
- "CE" Safety guards.
-
Bed former with double rotor DRL at work
DRL bed former with double rotor
DRL bed former with double rotor at work
Massano s.n.c. - agricultural machinery
Bed former with double rotor
Massano - Bed former with double rotor
DRL bed former with double rotor at work
DRL bed former with double rotor
Massano s.n.c. - agricultural machinery
Bed former with double rotor
Massano - Bed former with double rotor
Massano s.n.c. - agricultural machinery
DRL bed former with double rotor at work
DRL bed former with double rotor
-
Download pdf technical file of DRL bed former with double rotor
-
- Fertilizer spreader
- Hydraulic rear roller
- Ploughs for bed’s realisation
- Hydraulic lift for seeding machine
- Mulching machine
