fixed
for tractors from 140 to 360 HP
working width from 340 to 580 cm
Stone buriers with bed former shaper RSE-PLUS.2
Massano s.n.c. - Stone buriers with bed former shaper RSE-PLUS.2
Built with a working width from 340 to 580 cm, required power from 140 to 300 HP and working depth from 15 to 30 cm. RSE-PLUS.2 stone burier with bed former shaper is a professional machine used mainly by large horticultural companies in order to improve the preparation of the seeding bed in one pass.
Thanks to the modular structure of our machines it is possible to link to RSE PLUS.2 stone burier with bed former shaper different accessories realized on request of our customers.
Standard Equipment:
- 3-Point linkage cat. 2°-3°.
- Single speed gearbox with 1000 rpm PTO.
- Double transmission by gears.
- Central support bearing.
- 4/6 blades each flange type Rotostone.
- Double frame made with special steel IMEX 700.
- Rear adjustable and self- cleaned selection grill.
- Rear Bed Former shaper with adjustable manual jacks.
- Side ploughs adjustable.
- Rear wheels with adjustable manual jacks.
- Front discs conveyor ploughs.
- Side Cardan shaft with disc release.
- 1 Central Cardan shaft direct.
- “CE” Safety guards.
-

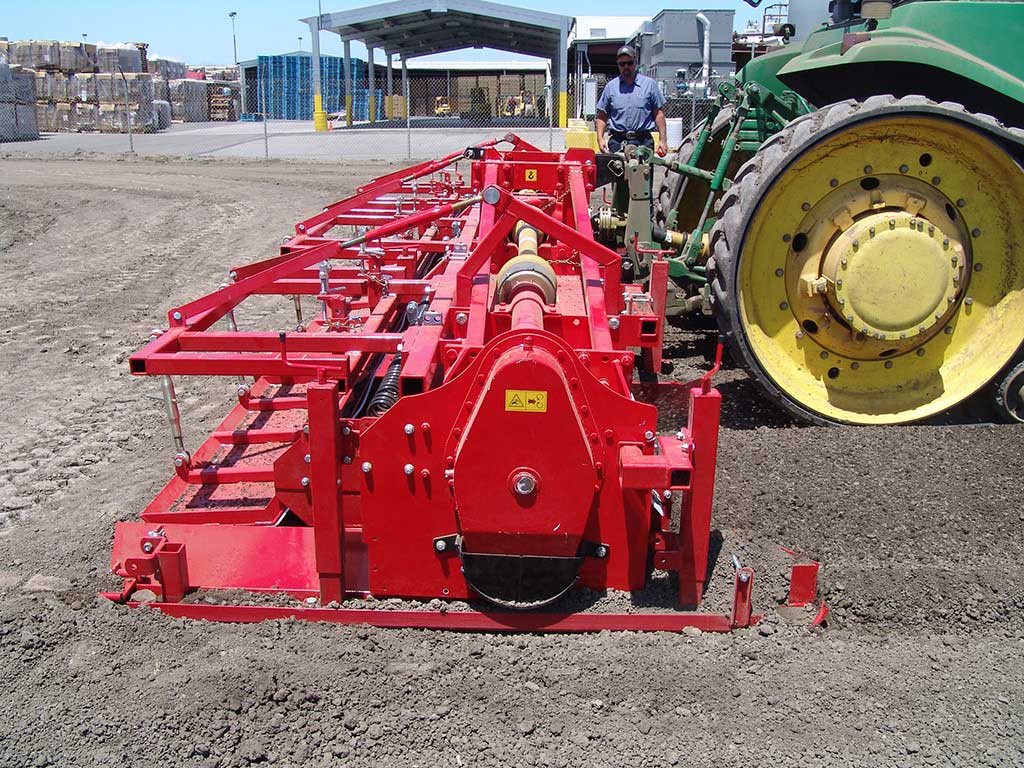

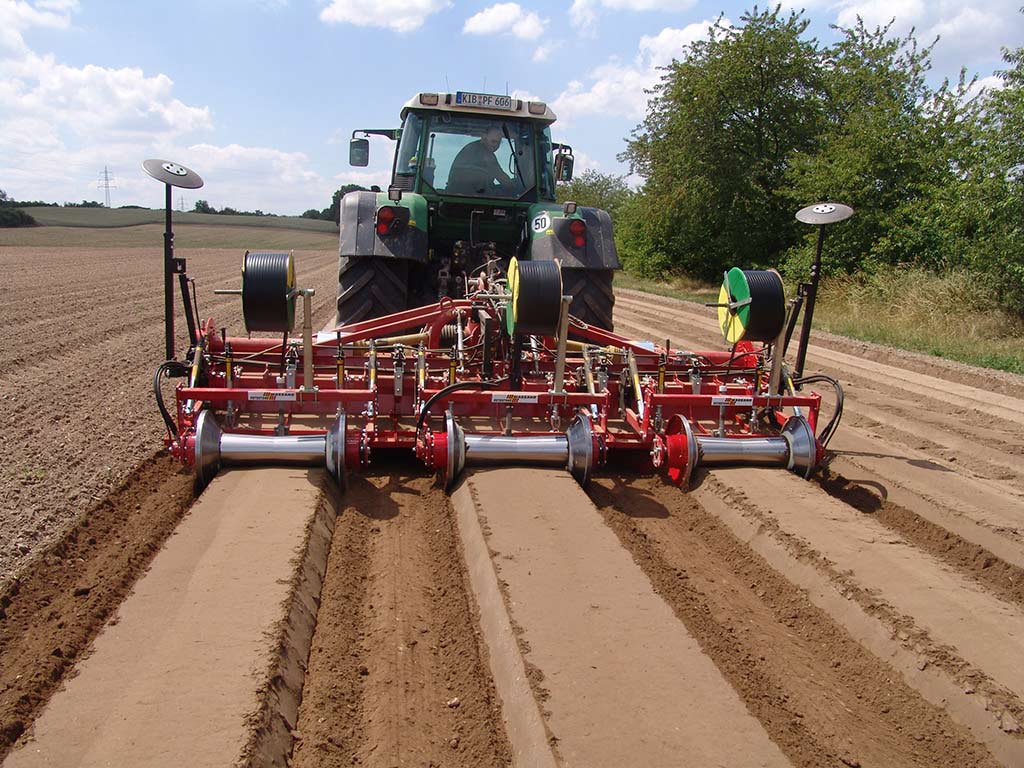

Stone burier with bed former shaper RSE PLUS.2 at work
Stone buriers with bed former shaper RSE-PLUS.2
Stone buriers with bed former shaper RSE-PLUS.2 at work
Stone buriers with bed former shaper for horticulture
Massano - Machines for horticulture
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper RSE-PLUS.2
Stone buriers with bed former shaper RSE-PLUS.2 at work
Massano - Machines for horticulture
Stone buriers with bed former shaper
Stone buriers with bed former shaper for horticulture
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper RSE-PLUS.2 at work
Stone buriers with bed former shaper RSE-PLUS.2
-
Stone burier with bed former shaper RSE PLUS.2 at work
-
Download pdf technical file of stone burier with bed former shaper RSE PLUS.2
-
