folding
for tractors from 140 to 240 HP
working width from 340 to 520 cm
Stone buriers with bed former shaper MEGA - Massano macchine agricole

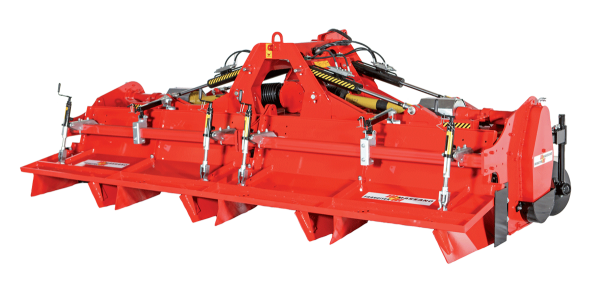

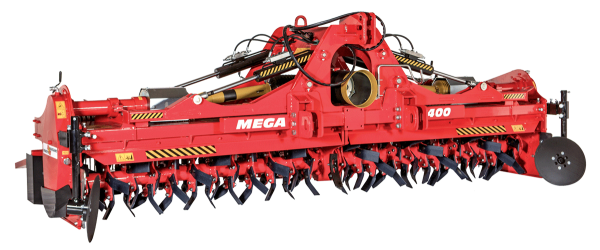

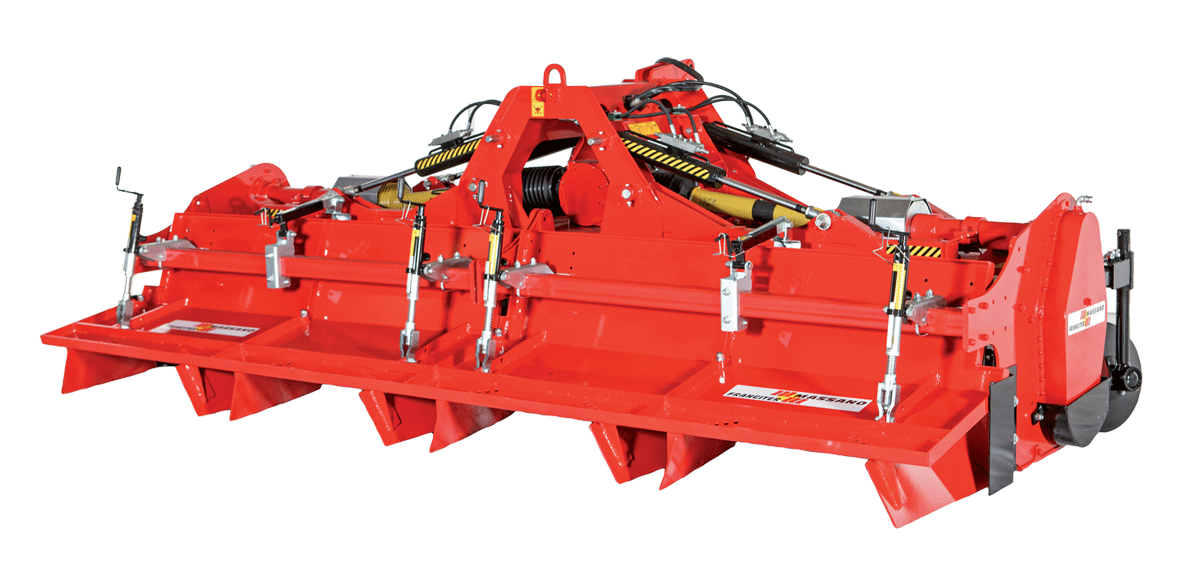

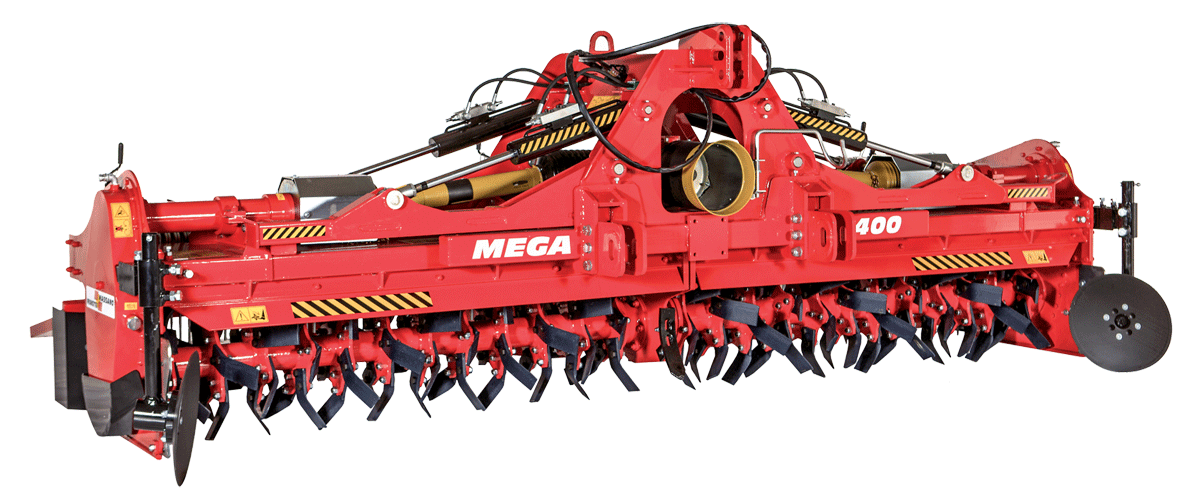

Stone buriers with bed former shaper MEGA
Built with a working width from 340 to 520 cm, required power from 140 to 240 HP and working depth from 15 to 30 cm. ROTOSTONE MEGA is a series of folding stones and clods buriers with bed former shaper for medium-large horticultural companies. The use of particular materials with high flexibility and the special design of the central frame allow to contain the machine’s weight and to keep a high quality standard.
All these features allow to use medium-high powers tractors with working widths bigger than the standard ones.
Standard Equipment:
- 3-Point linkage cat. 2°-3°.
- Single speed gearbox with 540-1000 rpm PTO.
- Double transmission by gears.
- Central support bearing.
- 4/6 blades each flange type Rotostone.
- Double frame made with special steel IMEX 700.
- Rear adjustable and self- cleaned selection grill.
- Rear Bed Former shaper with adjustable manual jacks.
- Side ploughs adjustable.
- Rear wheels with adjustable manual jacks.
- Front discs conveyor ploughs.
- 2 side Cardan shafts with disc release.
- 1 central Cardan shaft direct 1” 3/8 Z 6.
- Folding frame with 4 cylinders.
- “CE” Safety guards.
N.B.: It is available a model with a higher frame to work in soils with big stones.
-

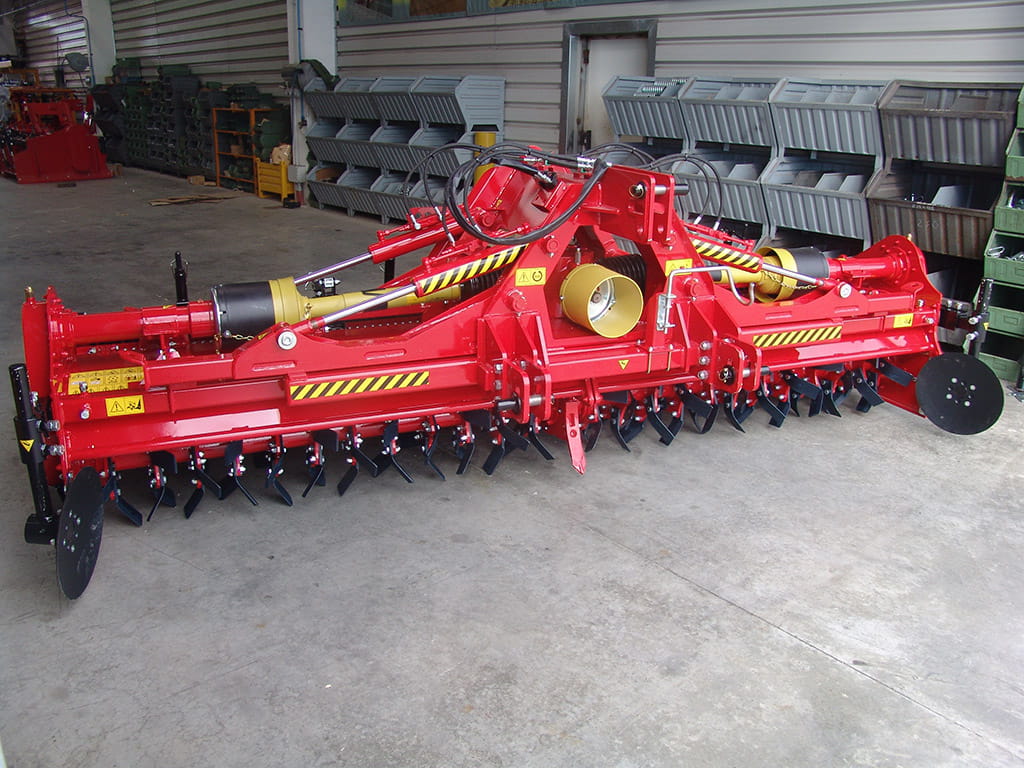

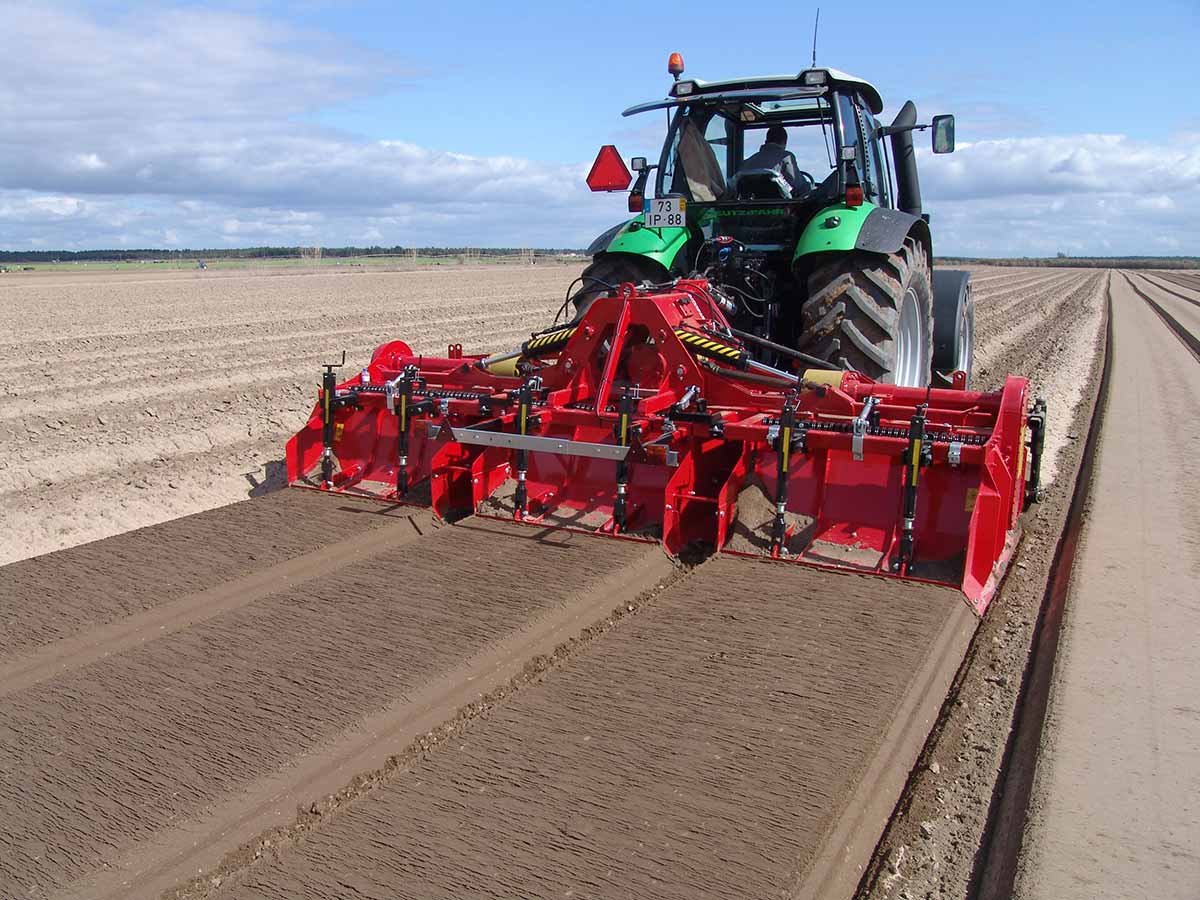

Stone burier with bed former shaper MEGA at work

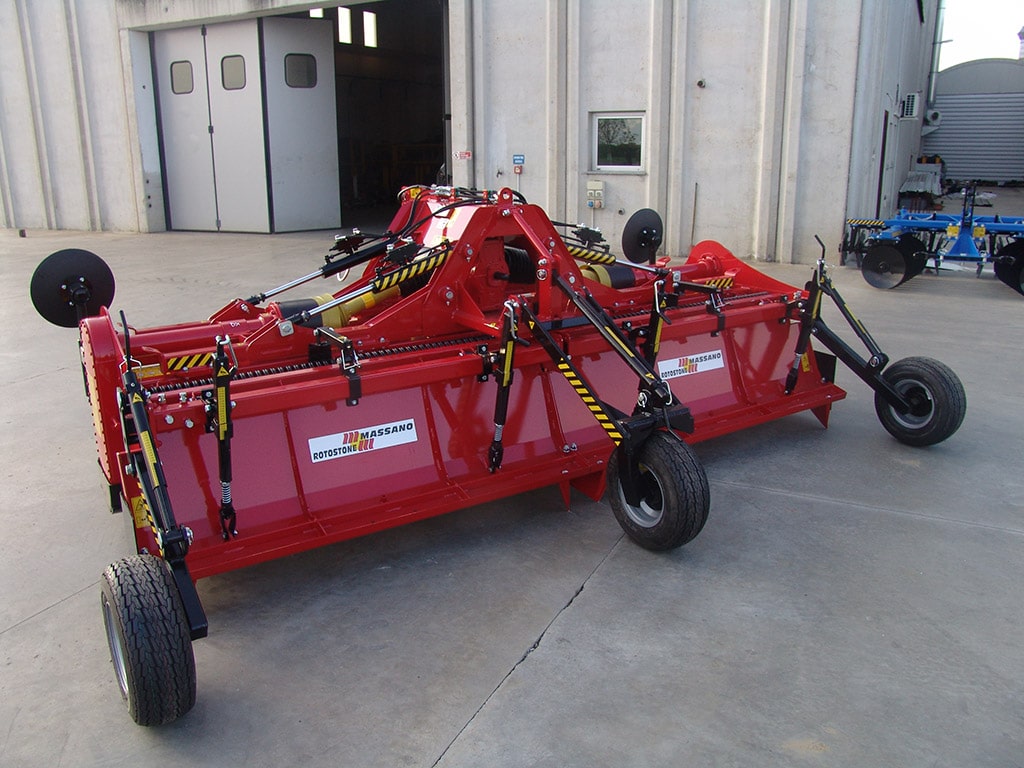

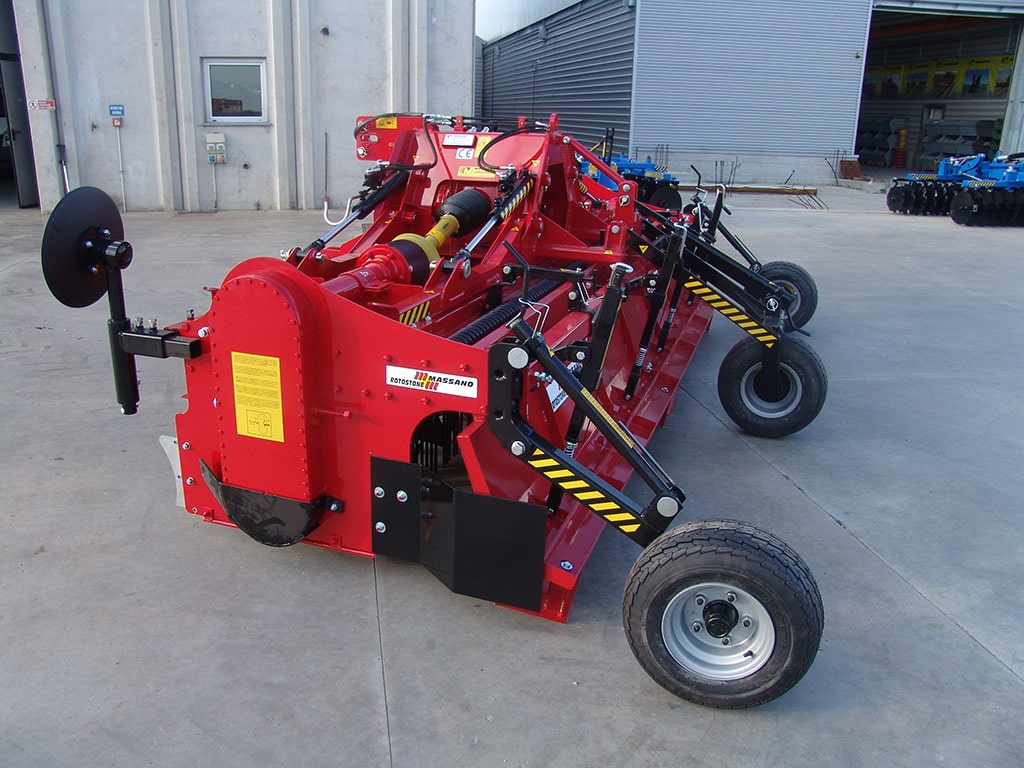

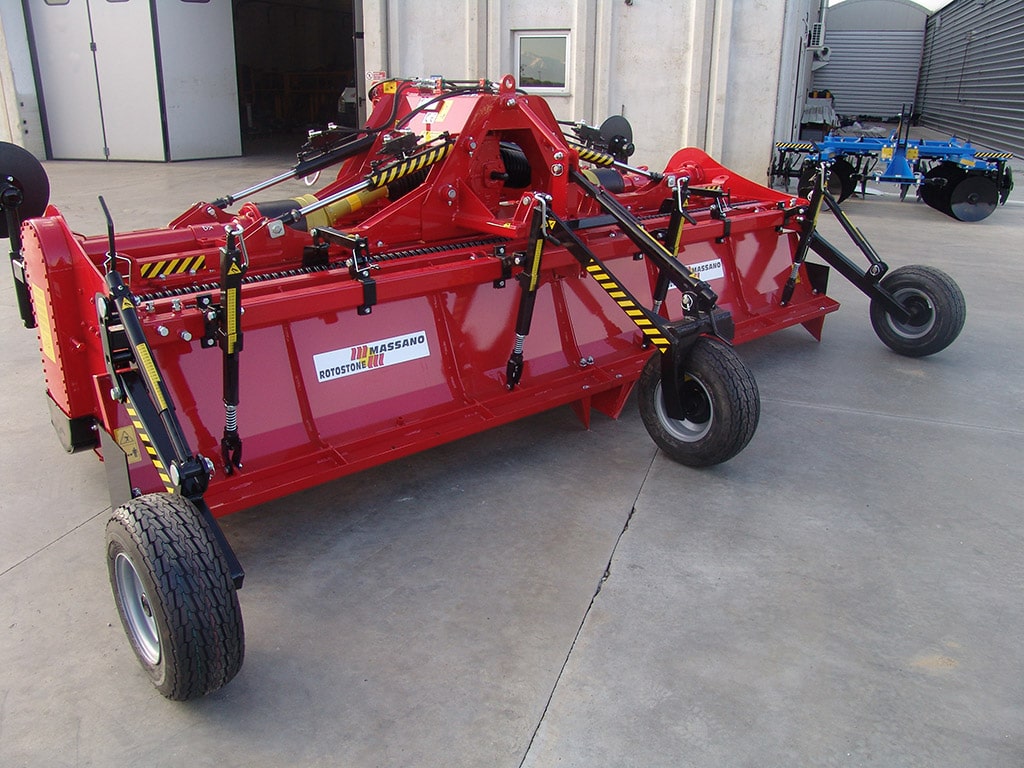

Stone buriers with bed former shaper MEGA

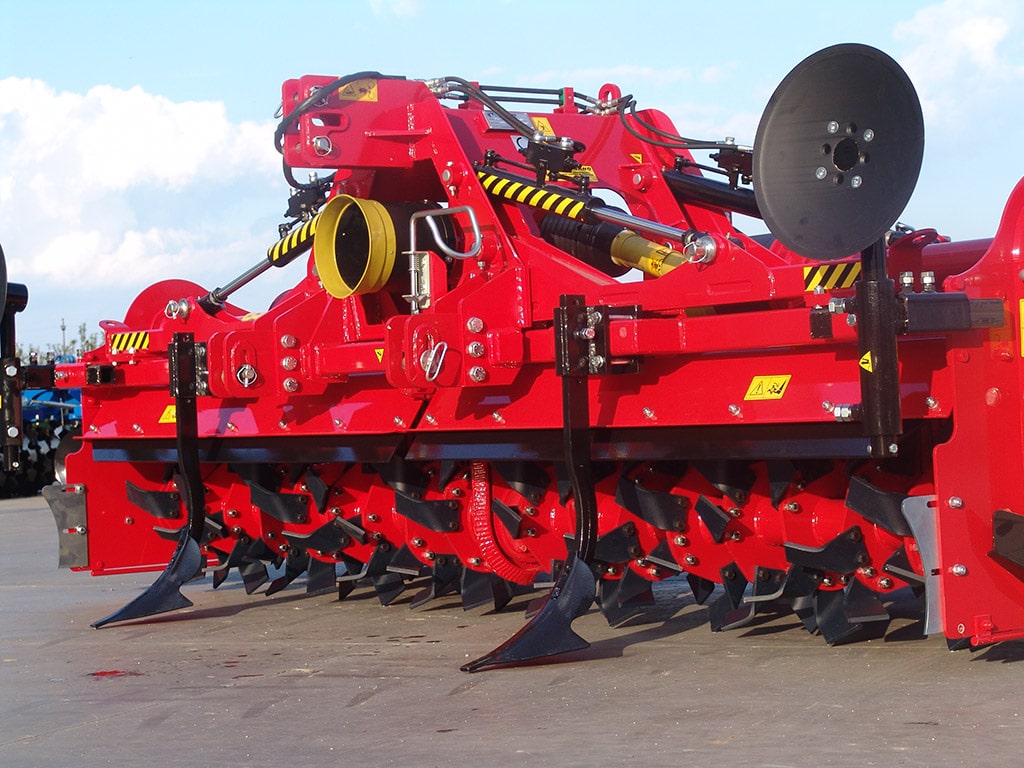

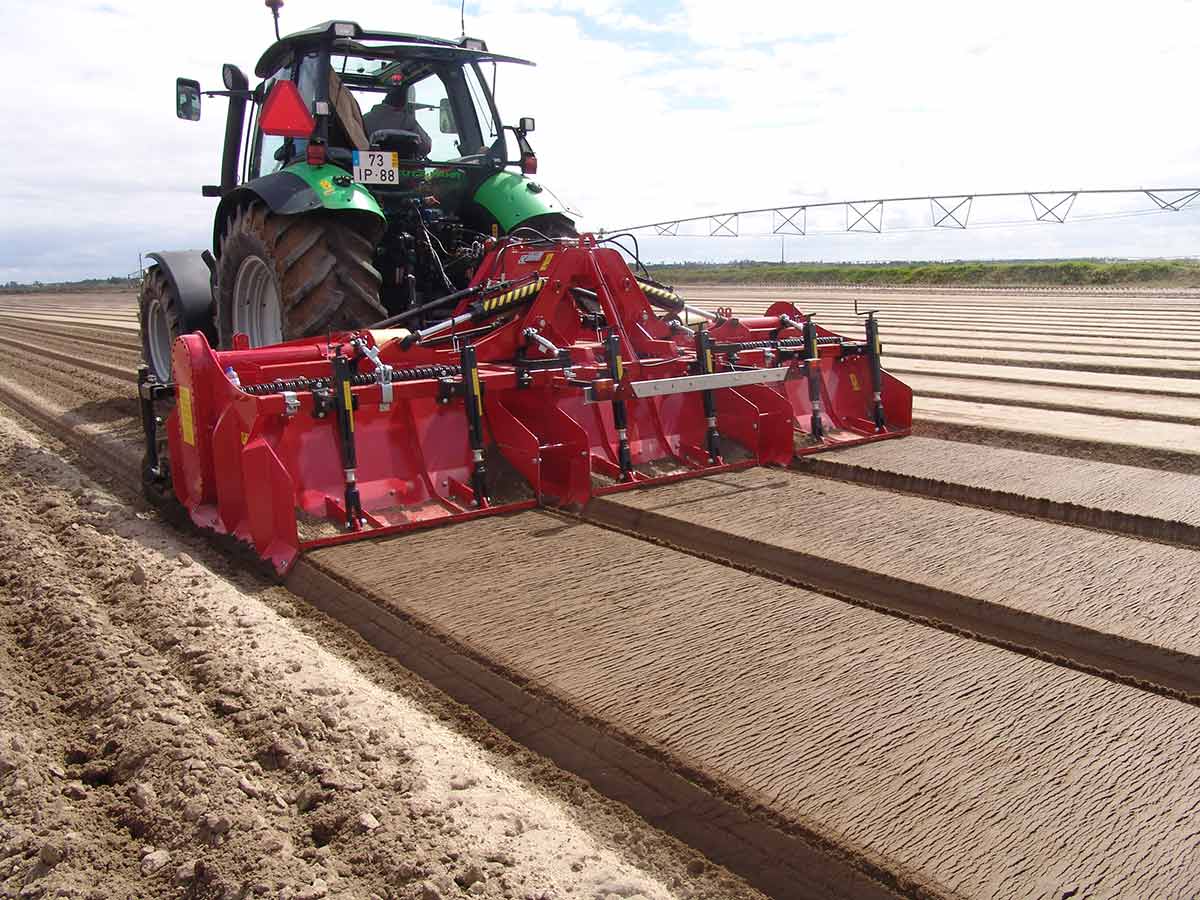

Stone buriers with bed former shaper MEGA at work
Stone buriers with bed former shaper for horticulture
Massano - Machines for horticulture

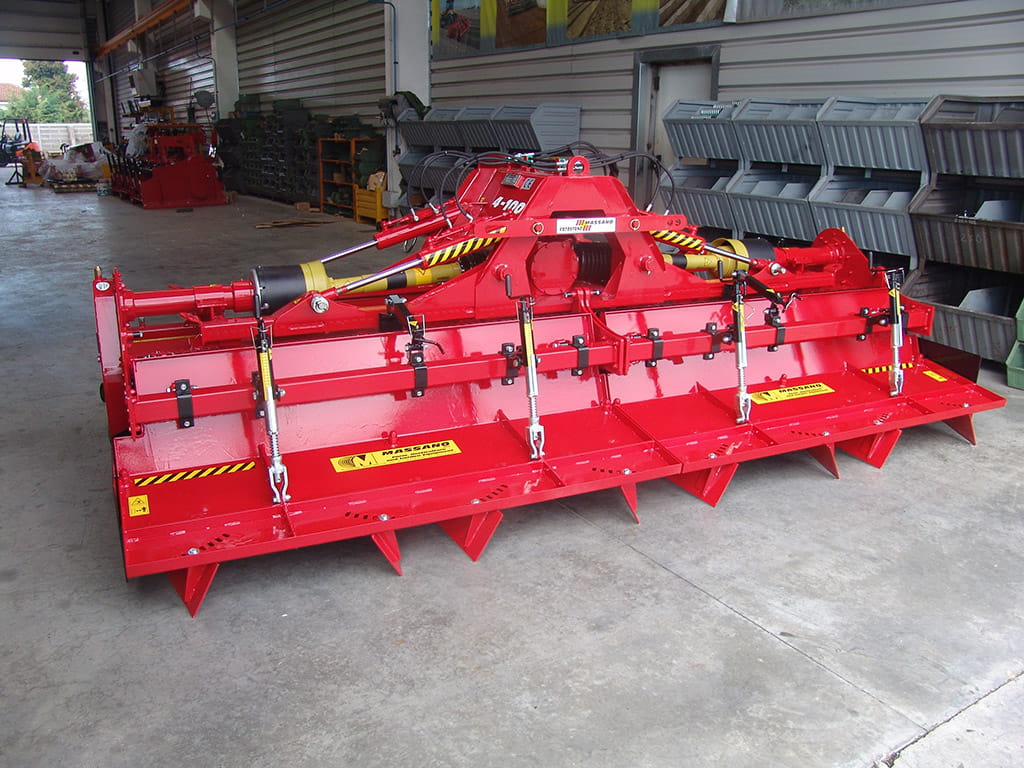

Stone buriers with bed former shaper MEGA
Stone buriers with bed former shaper MEGA at work
Massano s.n.c. - Agricultural machinery
Stone buriers with bed former shaper MEGA
-
Stone burier with bed former shaper MEGA at work
-

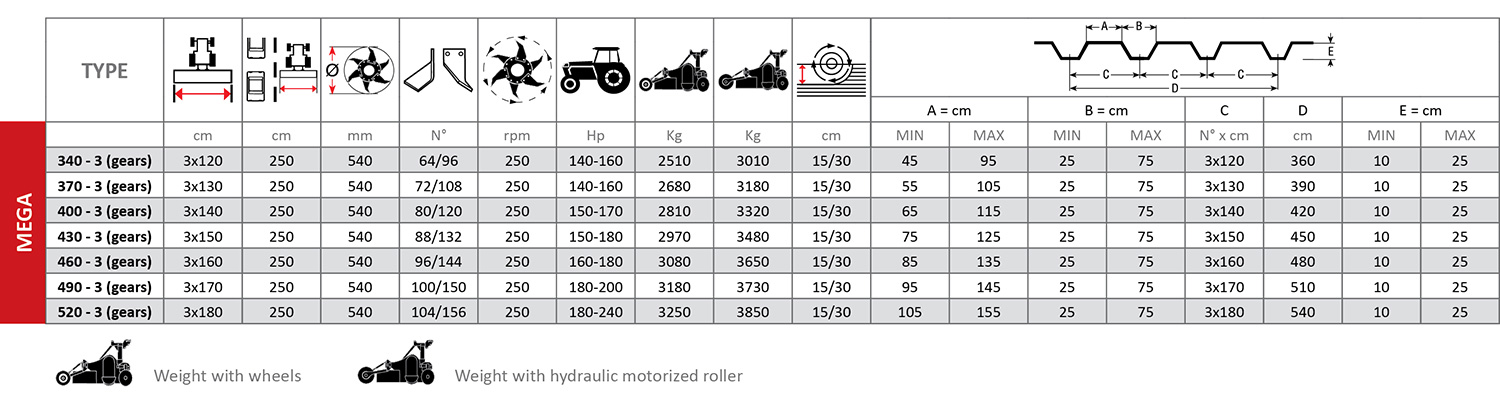

Download pdf technical file of stone burier with bed former shaper MEGA
-
