fixed
for tractors from 40 to 90 HP
working width from 125 to 210 cm

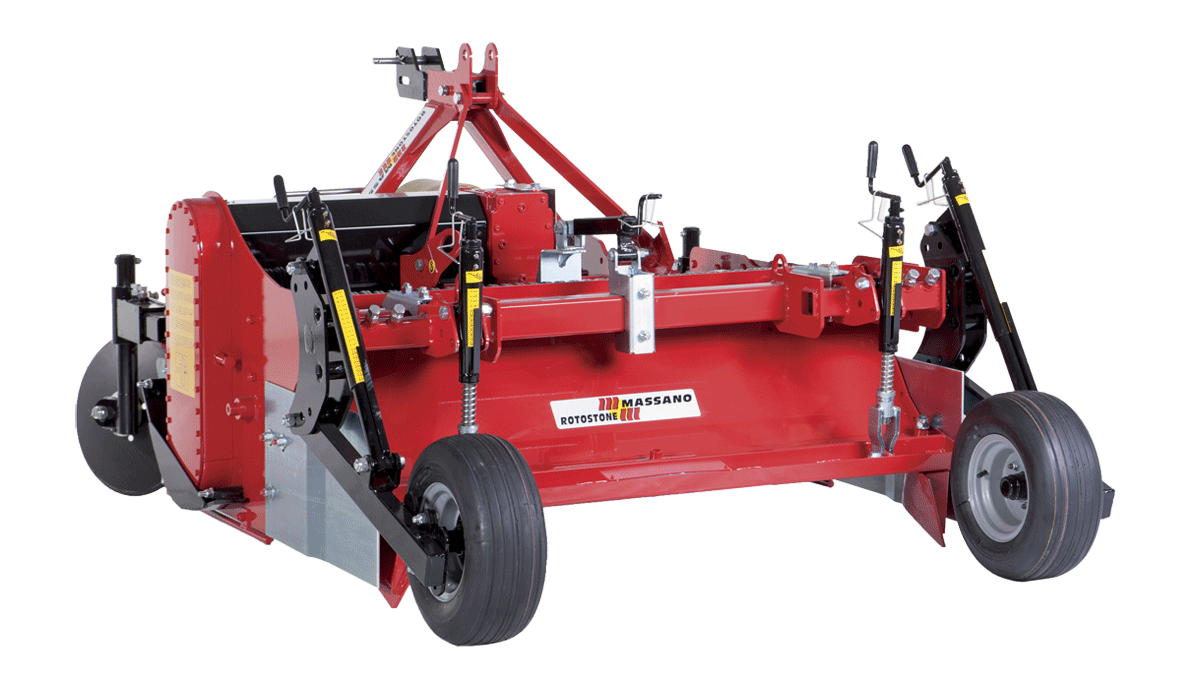

Stone buriers with bed former shaper RSG - Massano s.n.c.
Massano macchine agricole - Stone buriers with bed former shaper RSG

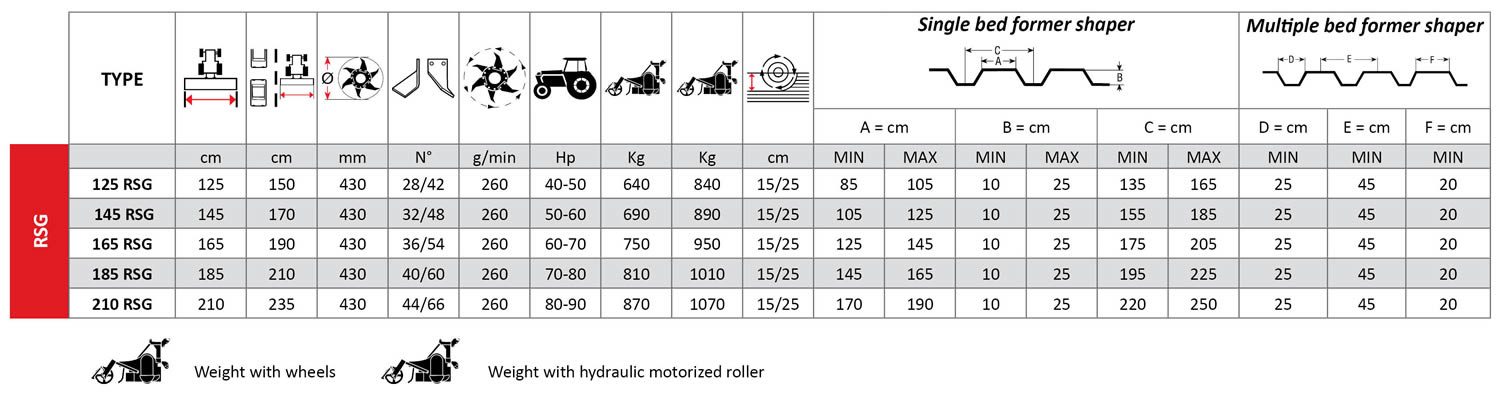

Built with a working width from 125 to 210 cm, required power from 40 to 90 HP and working depth from 15 to 22 cm. RSG stone burier with bed former shaper is used mainly by horticultural companies that need to work in all types of soils using low power tractors.
Thanks to the modular structure of our machines it is possible to link to RSG stone burier with bed former shaper different accessories realized on request of our customers.
Standard Equipment:
- 3-Point linkage cat. 1°-2°.
- Single speed gearbox with 540 rpm PTO.
- Side transmission through reinforced chain type ASA 100 HE.
- 4/6 blades each flange type Rotostone.
- Double frame made with special steel IMEX 700.
- Rear adjustable and self- cleaned selection grill.
- Rear bed former shaper with adjustable manual jacks.
- Side ploughs adjustable.
- Rear wheels with adjustable manual jacks.
- Front discs conveyor ploughs.
- Cardan shaft with safety bolt.
- “CE” Safety guards.
-

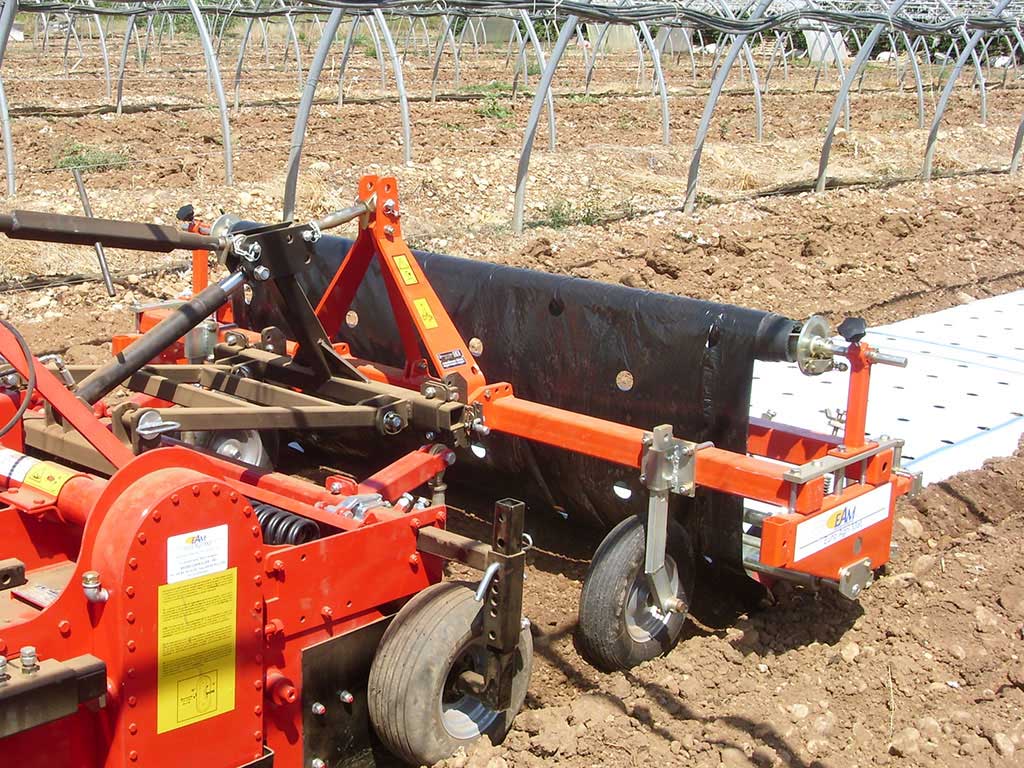

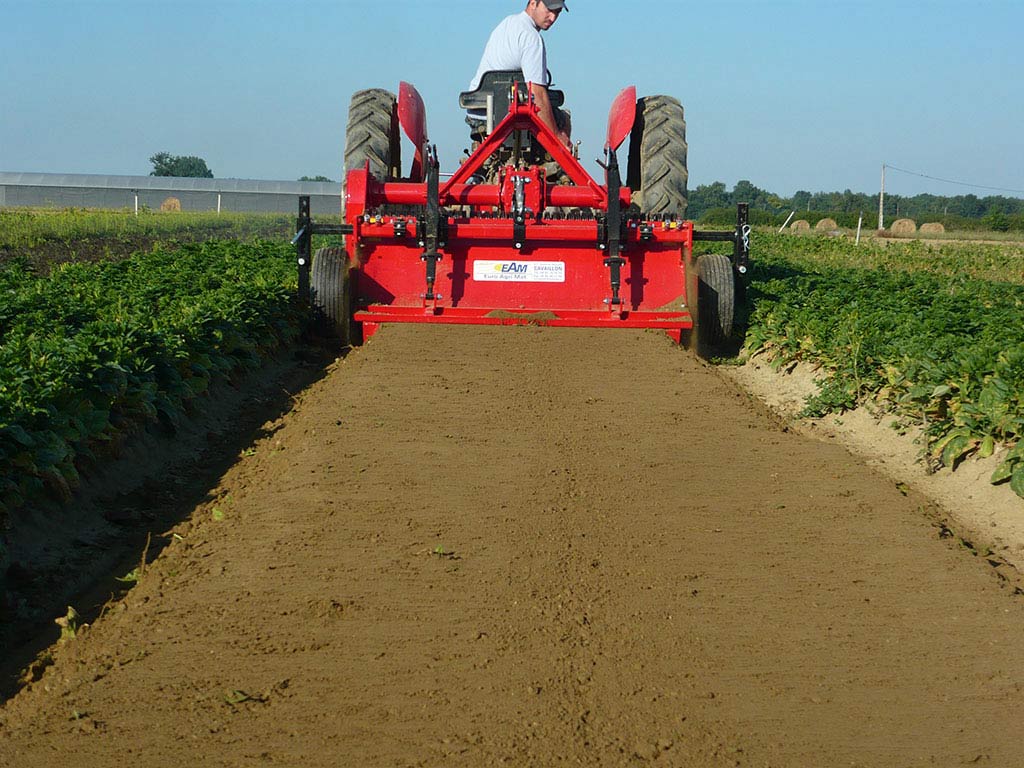

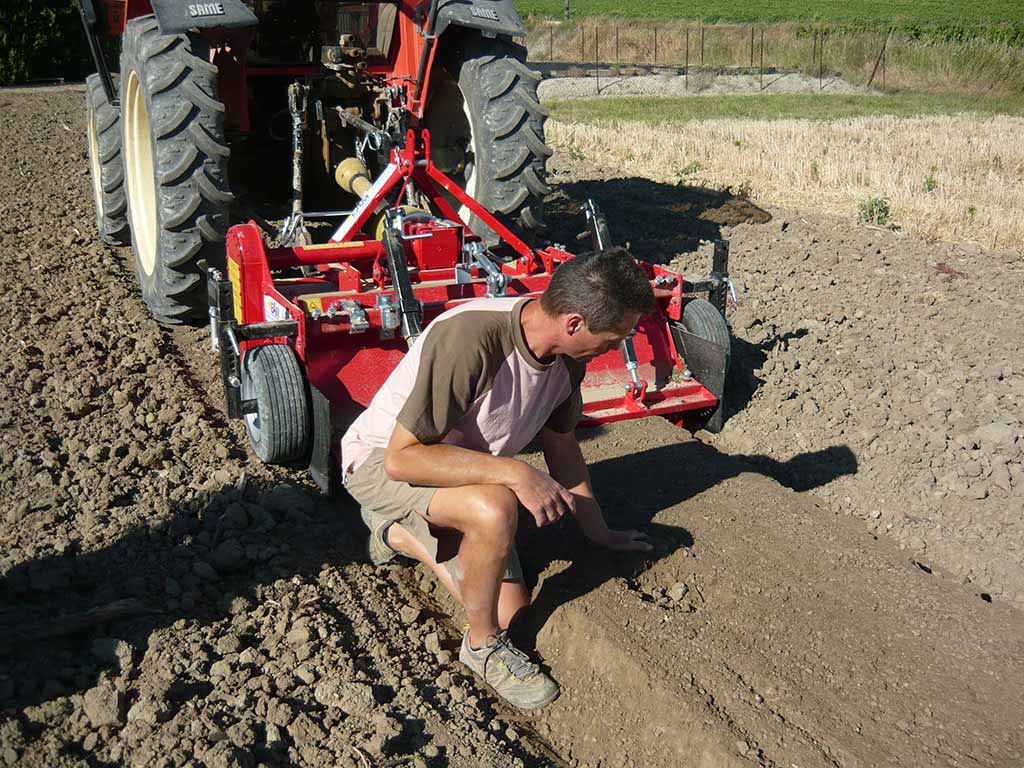

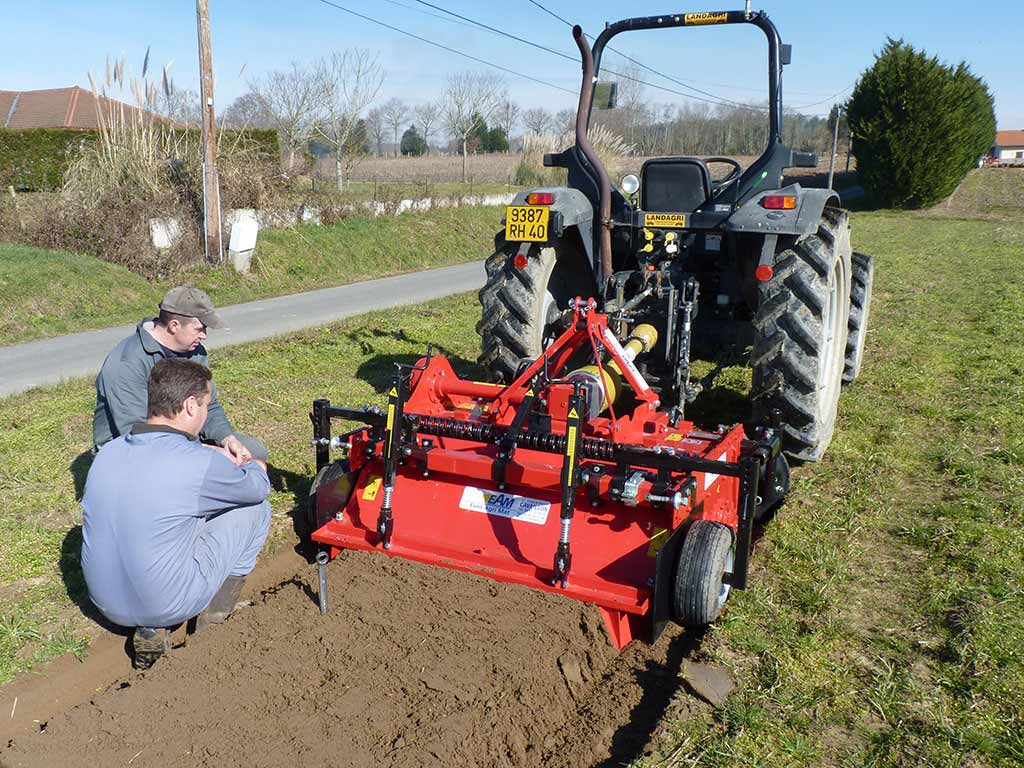

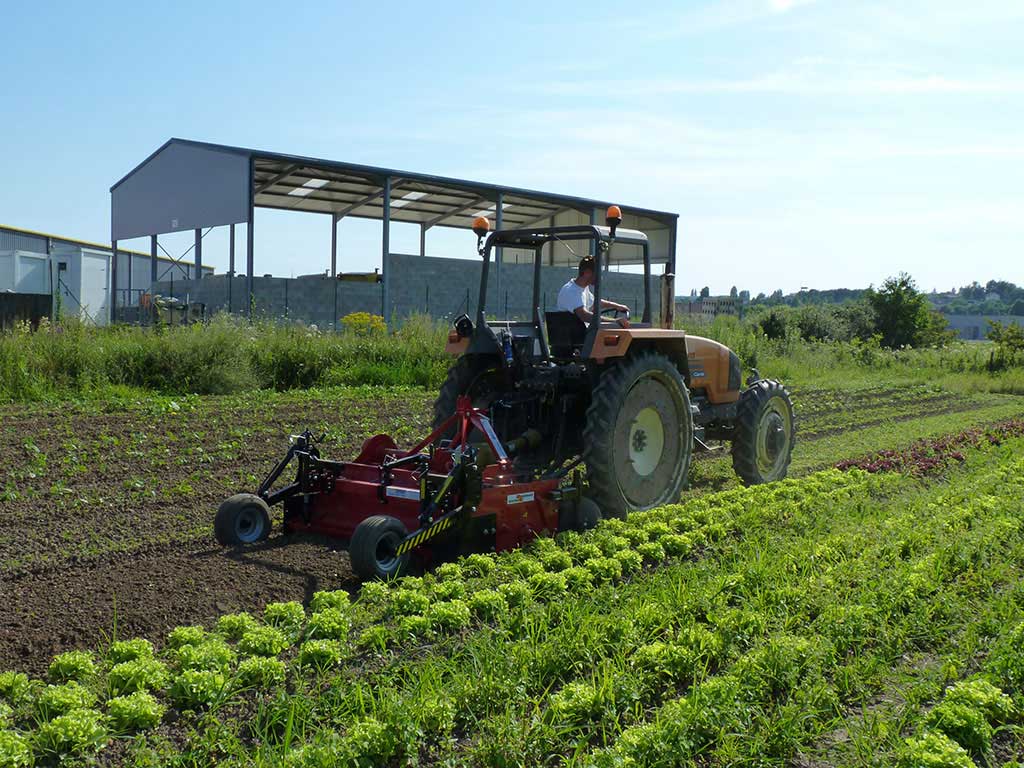

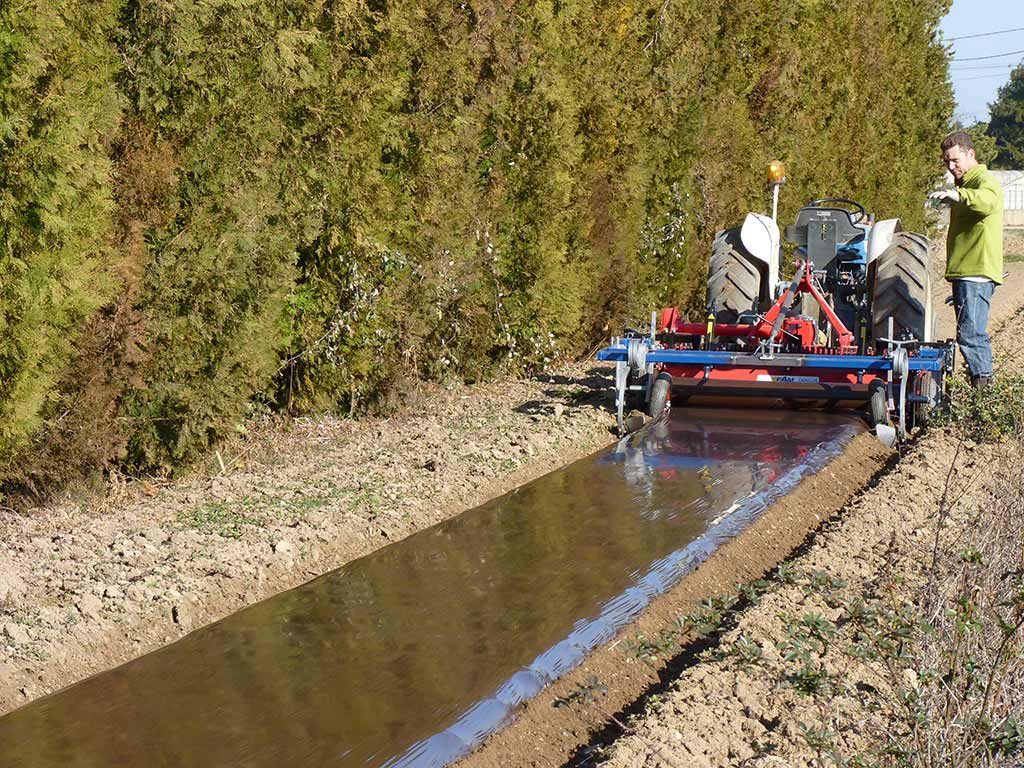

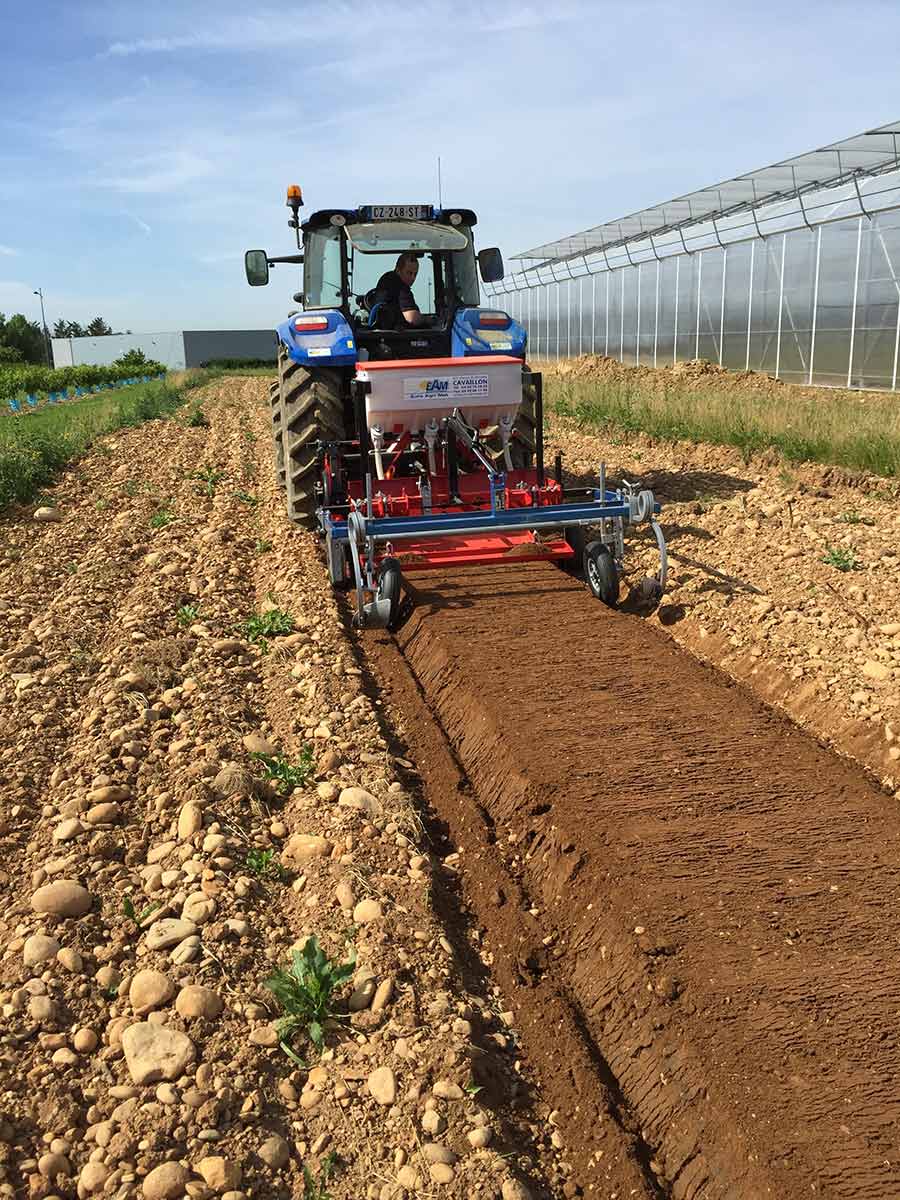

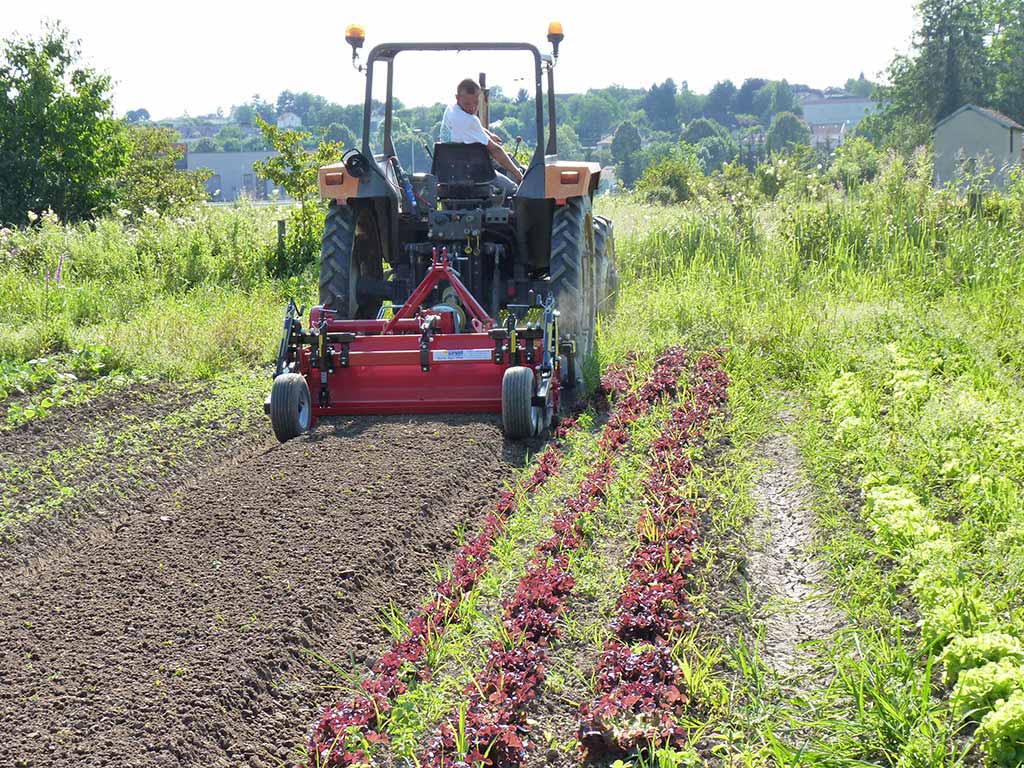

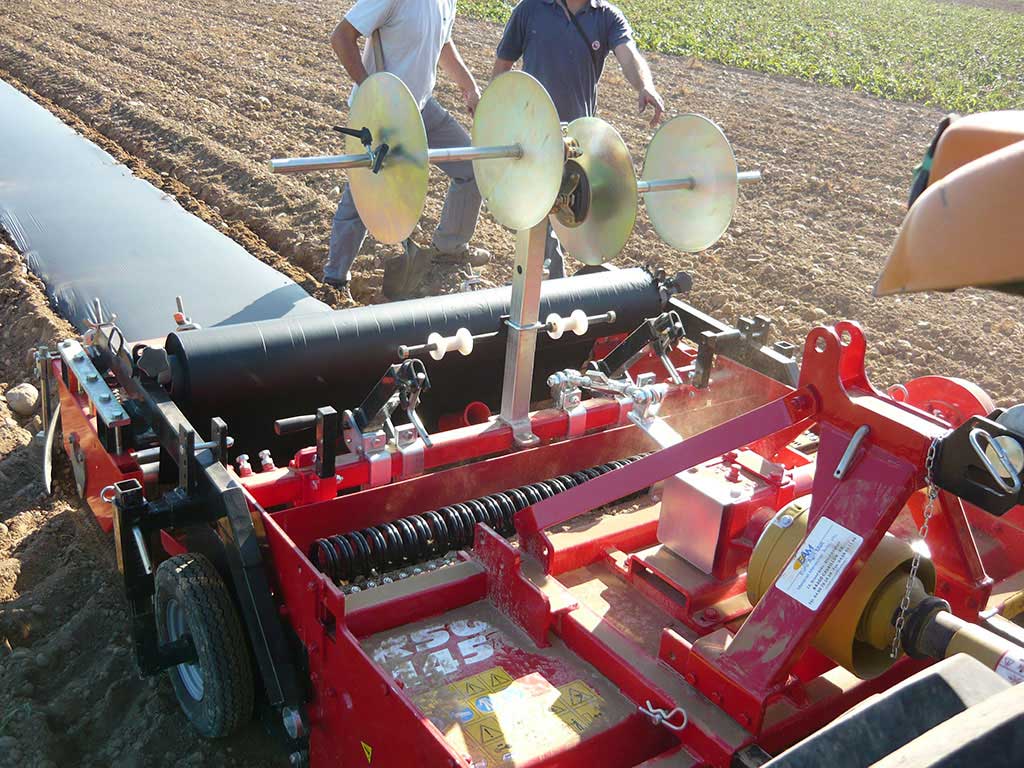

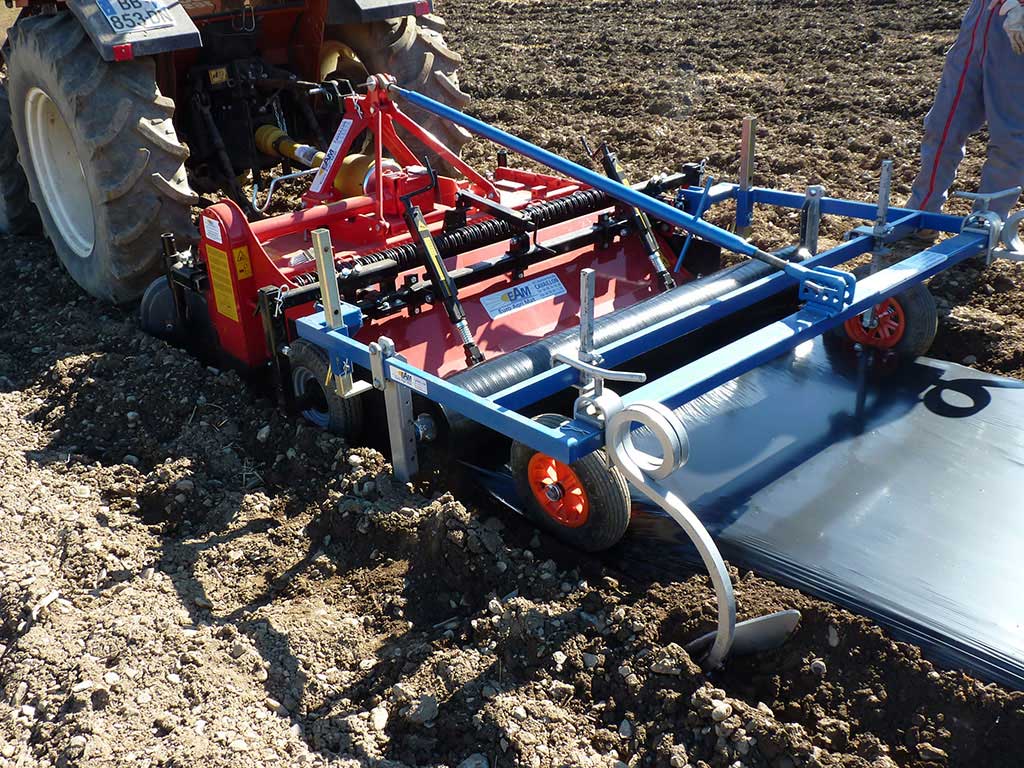

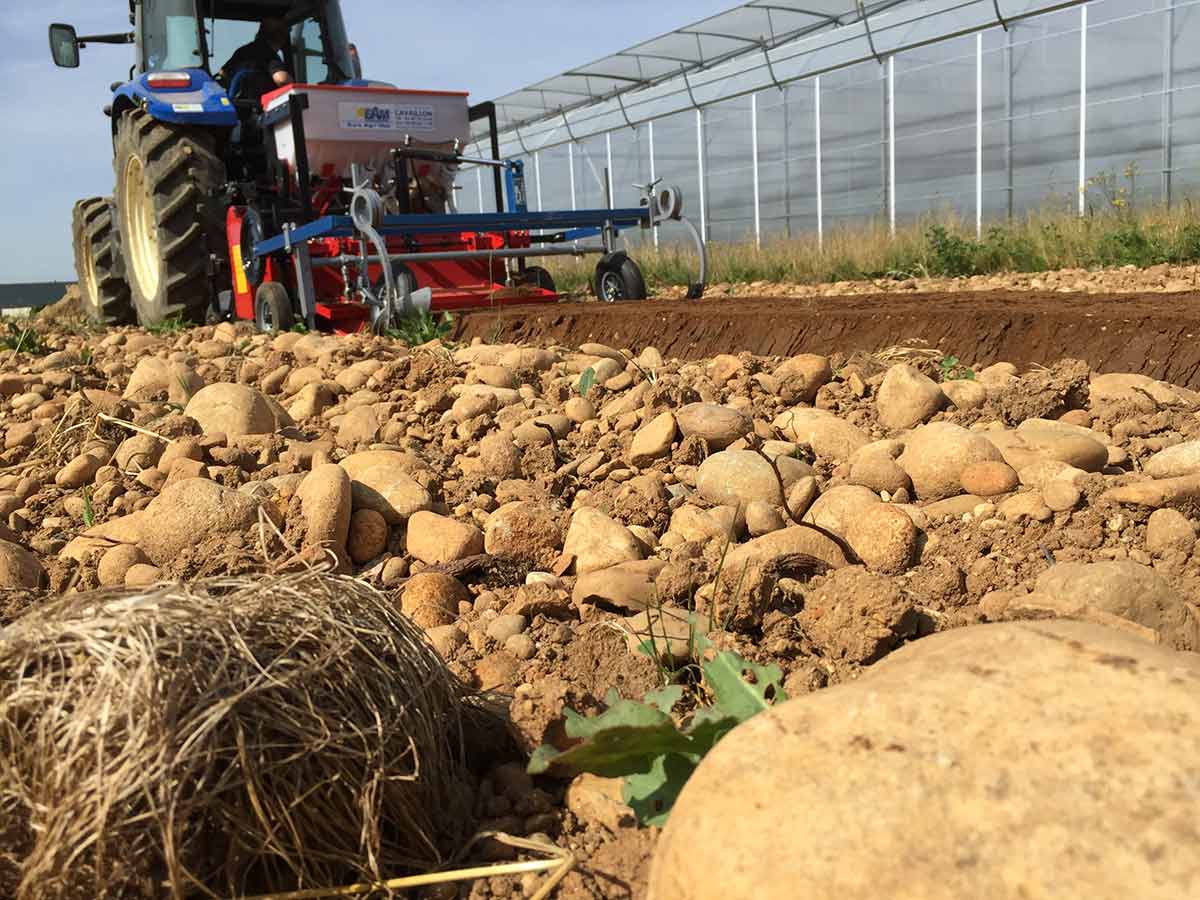

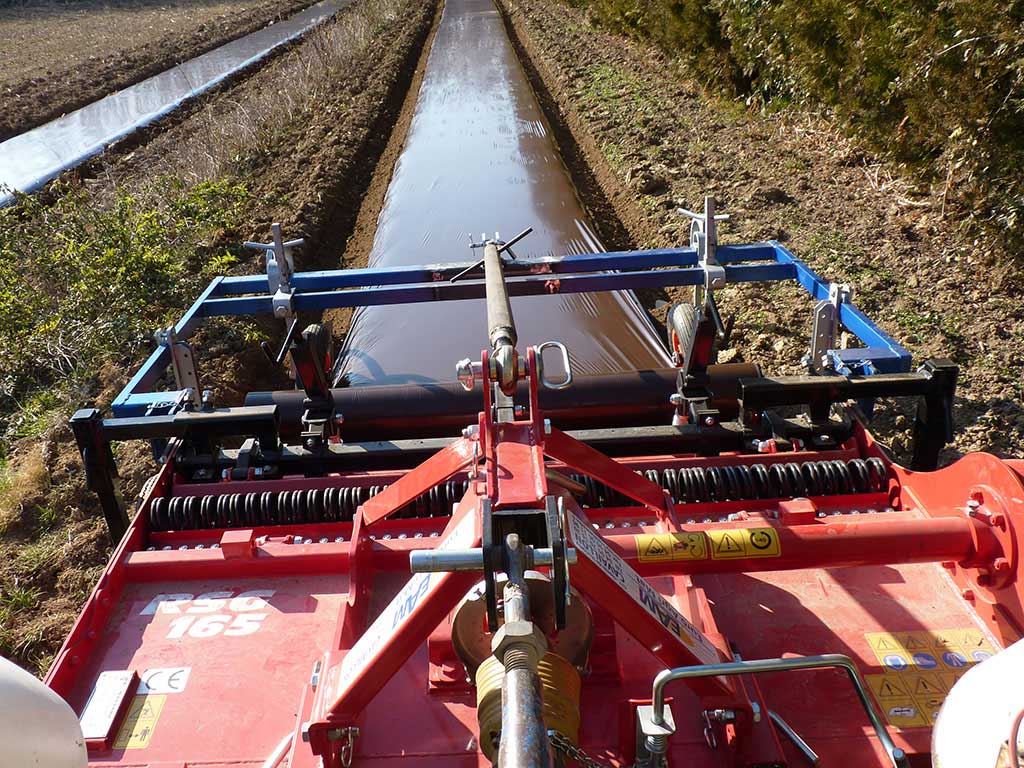

Stone burier with bed former shaper RSG at work

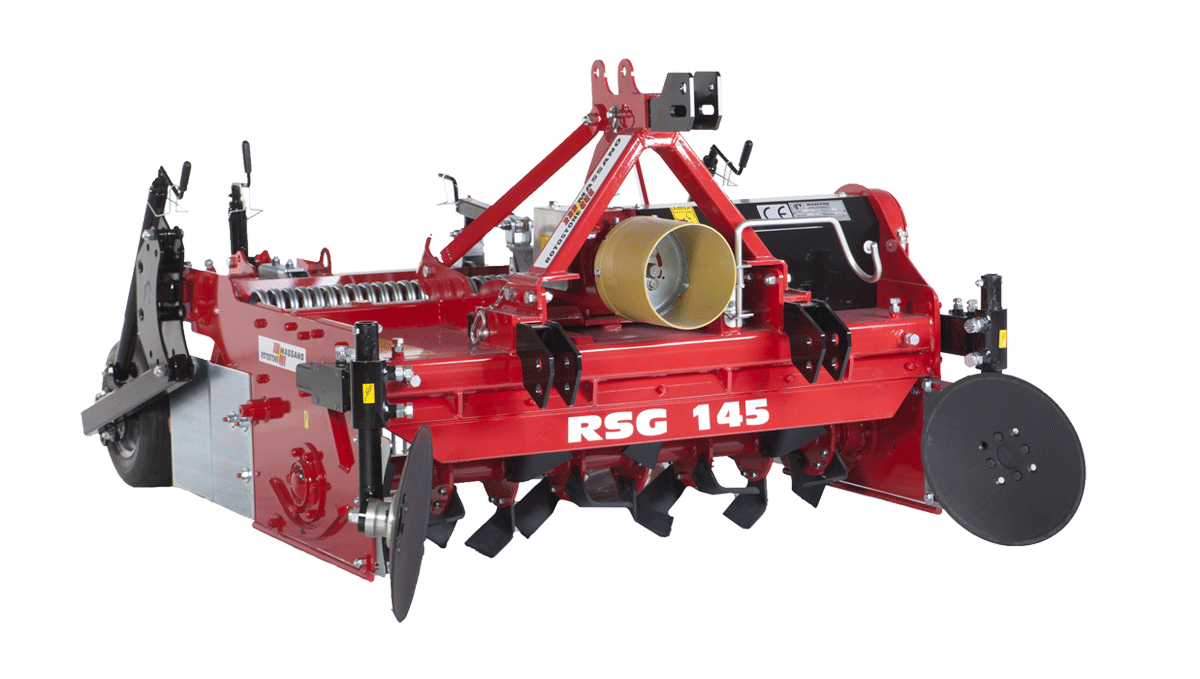

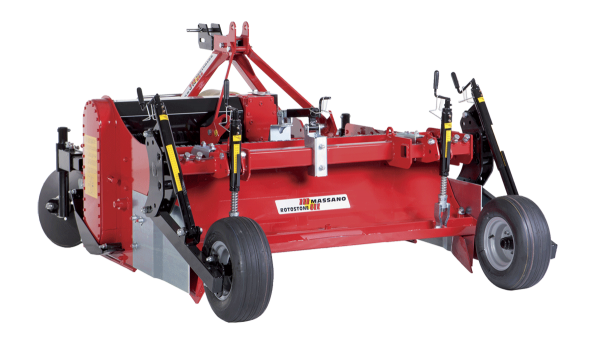

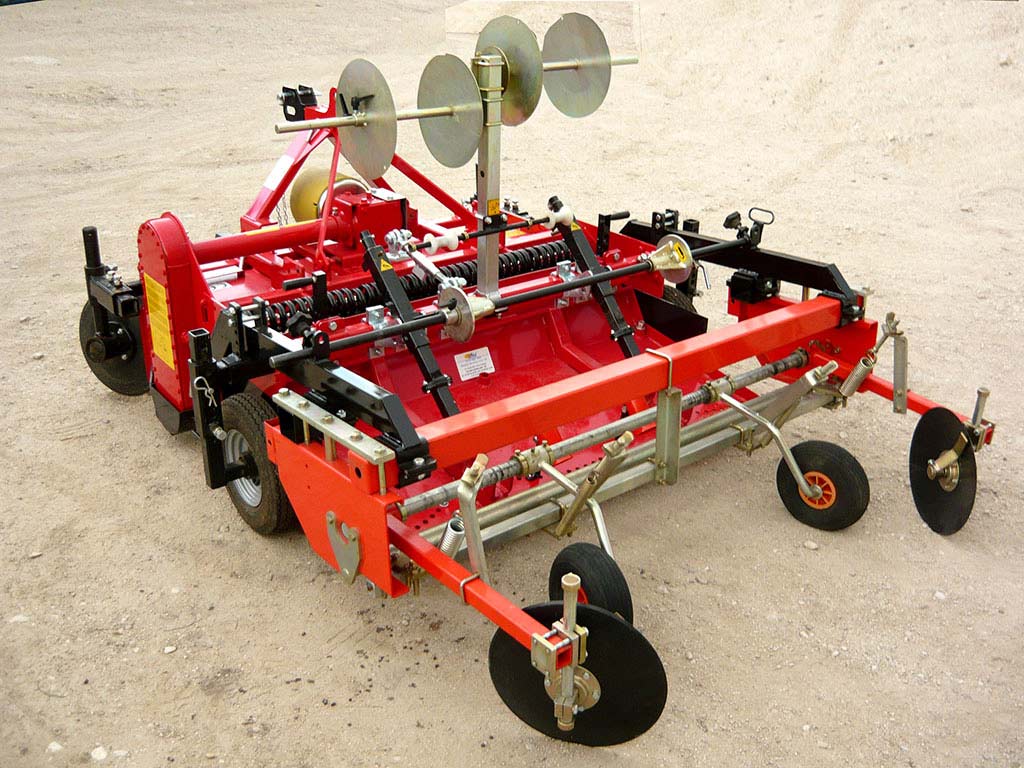

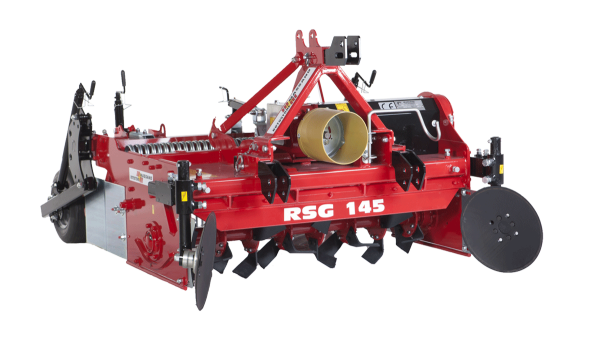

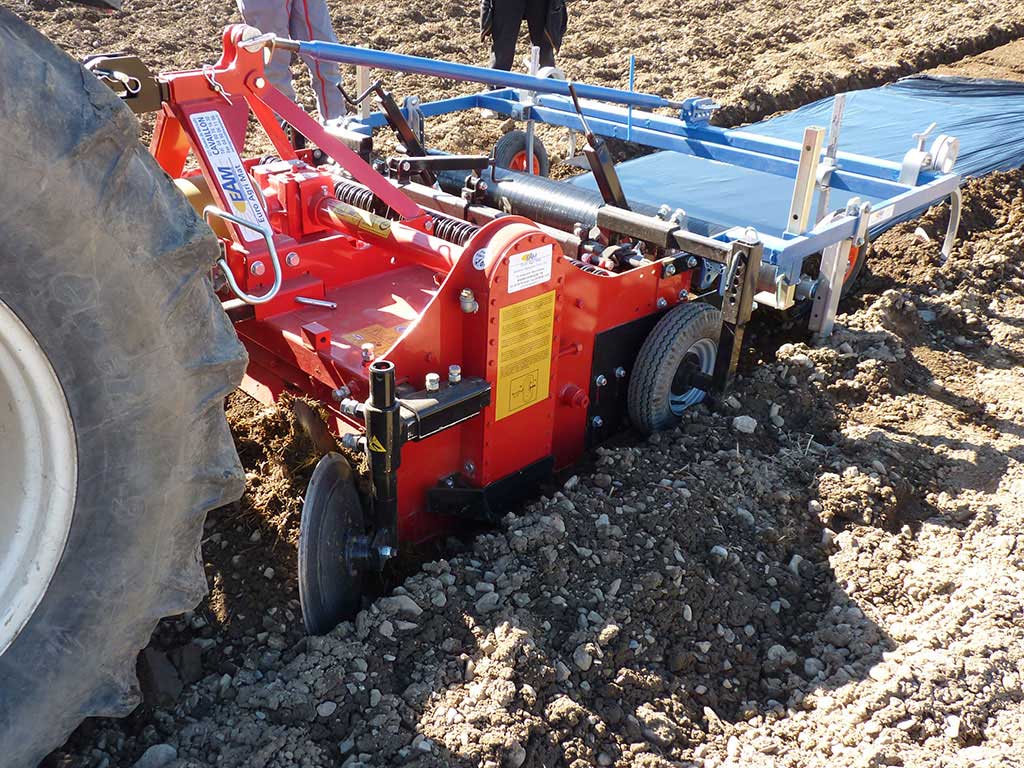

Stone buriers with bed former shaper RSG

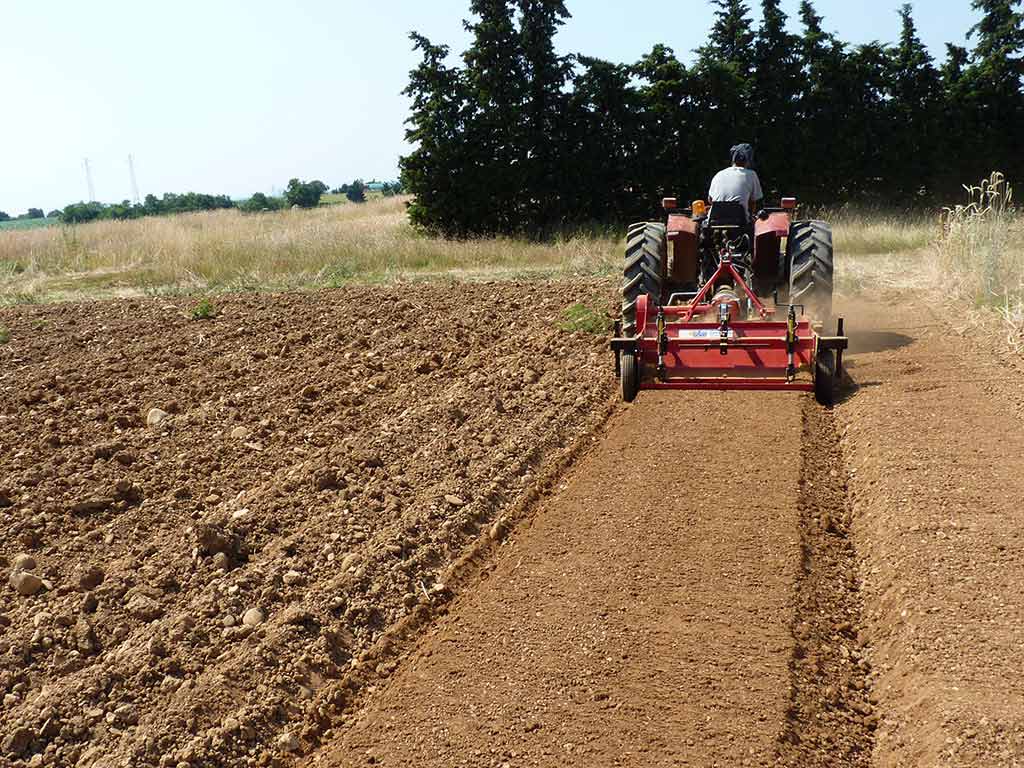

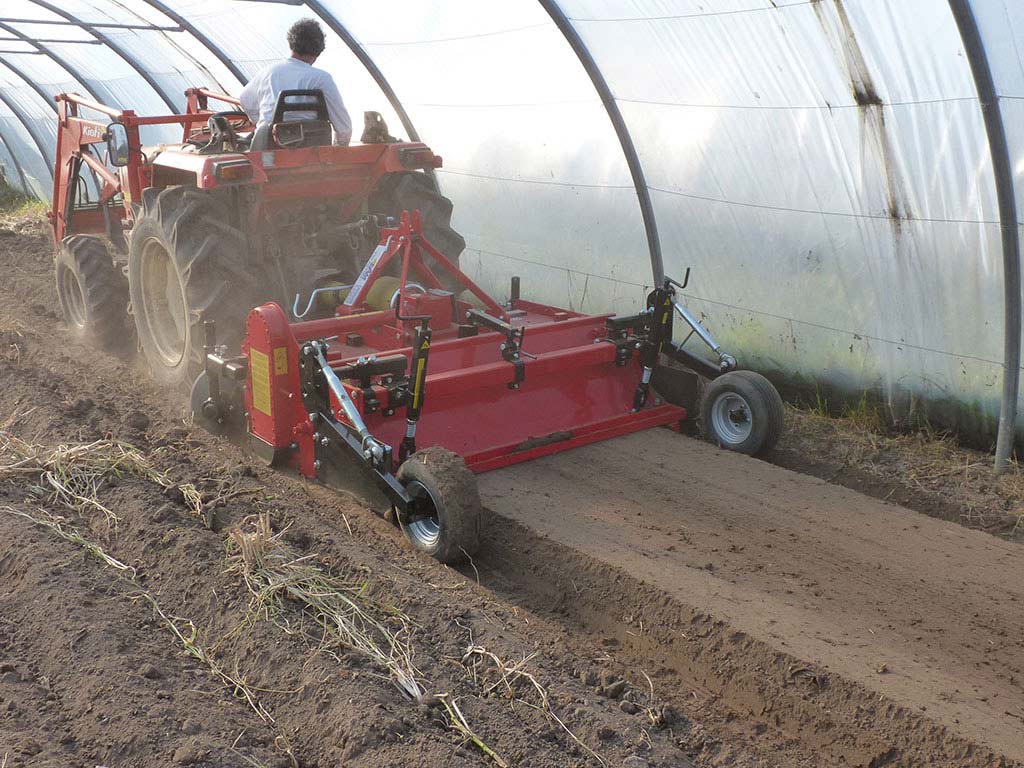

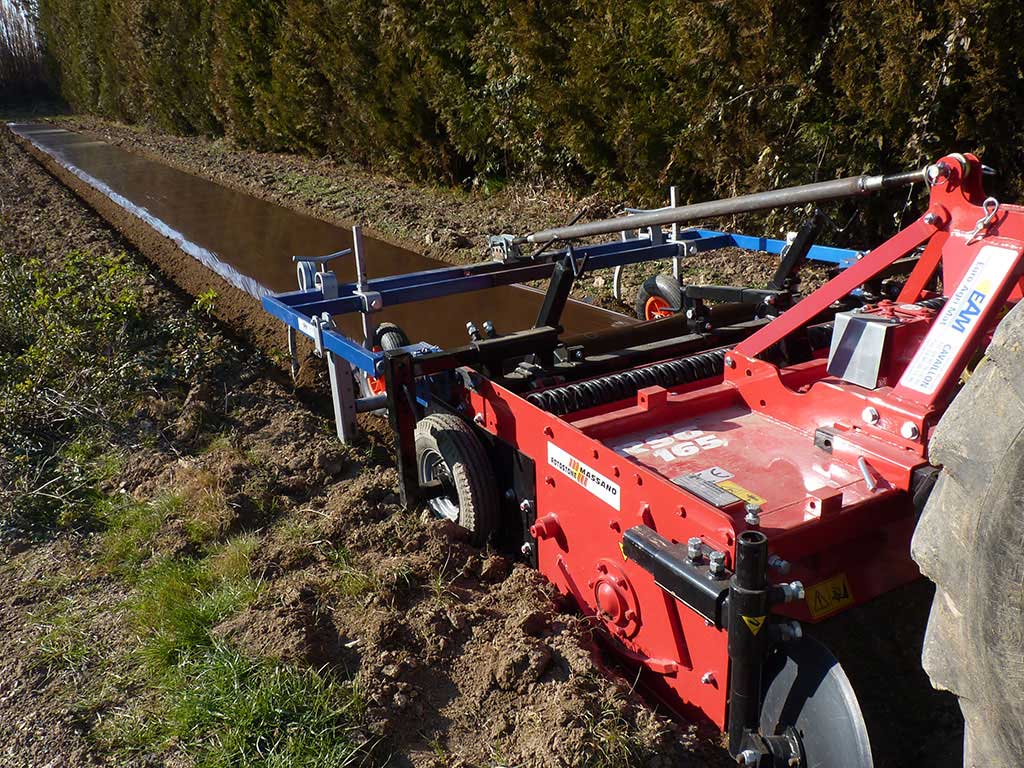

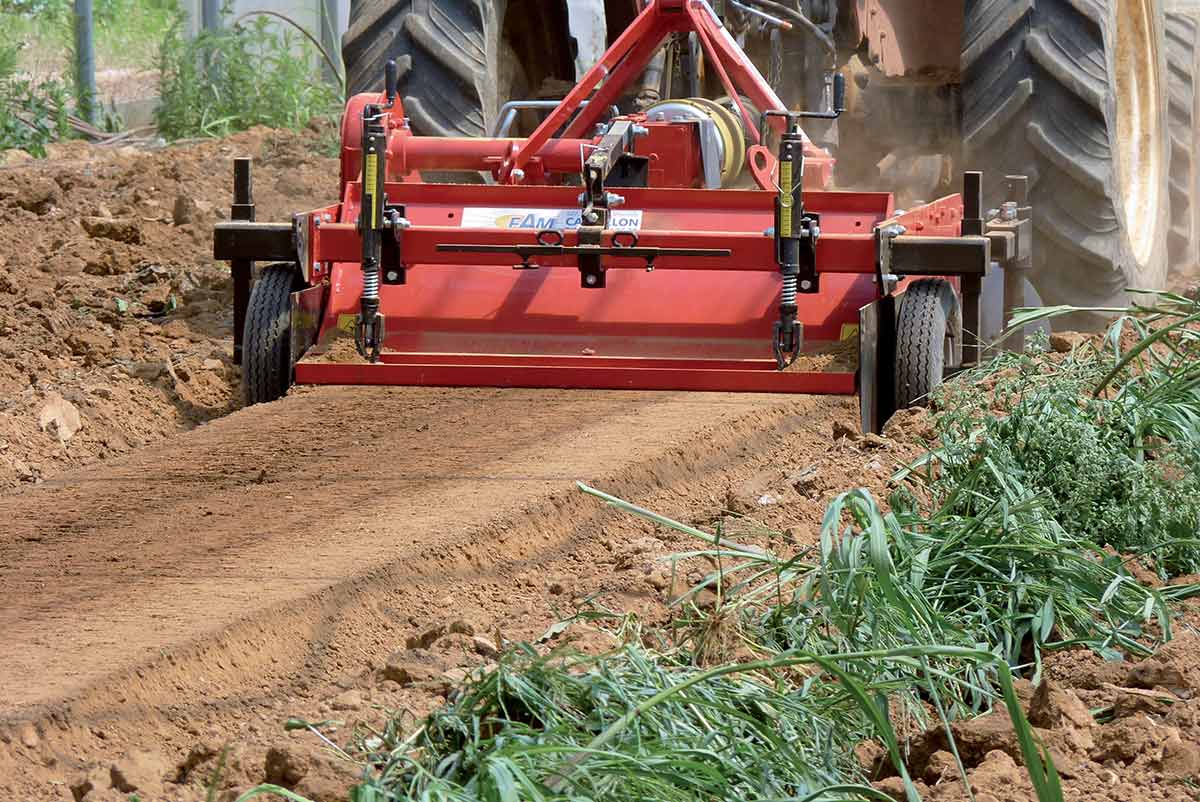

Stone buriers with bed former shaper RSG at work
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper
Stone buriers with bed former shaper for horticulture
Massano - Machines for horticulture
Stone buriers with bed former shaper RSG

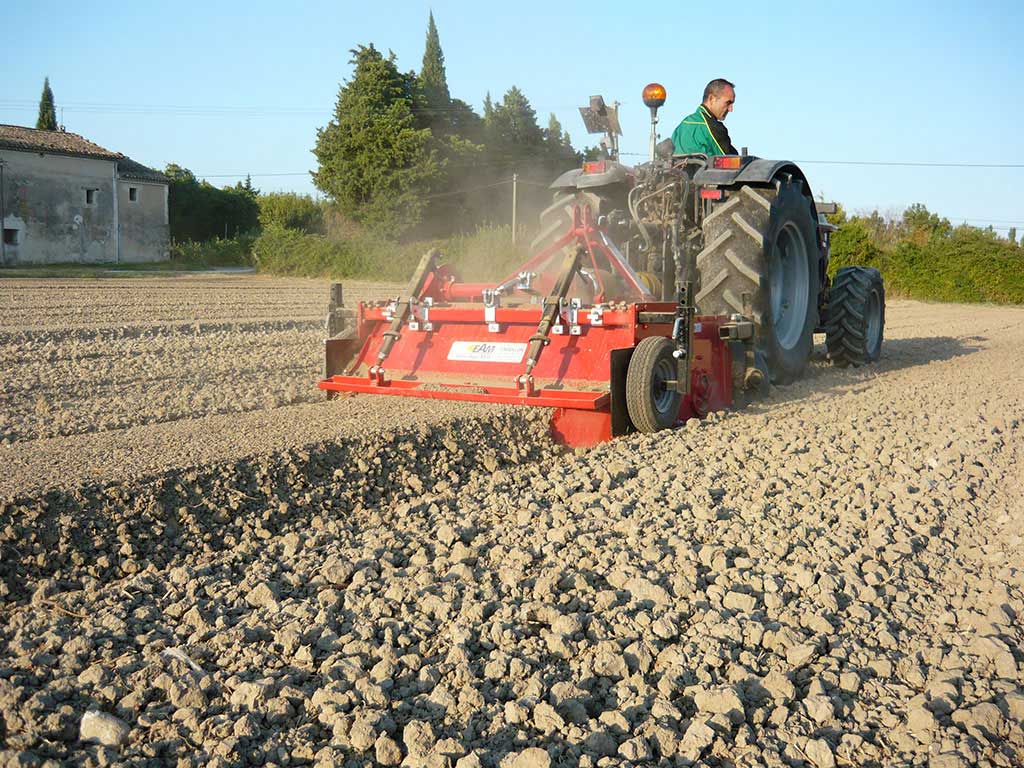

Stone buriers with bed former shaper RSG at work
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper for horticulture
Massano - Machines for horticulture
Stone buriers with bed former shaper RSG

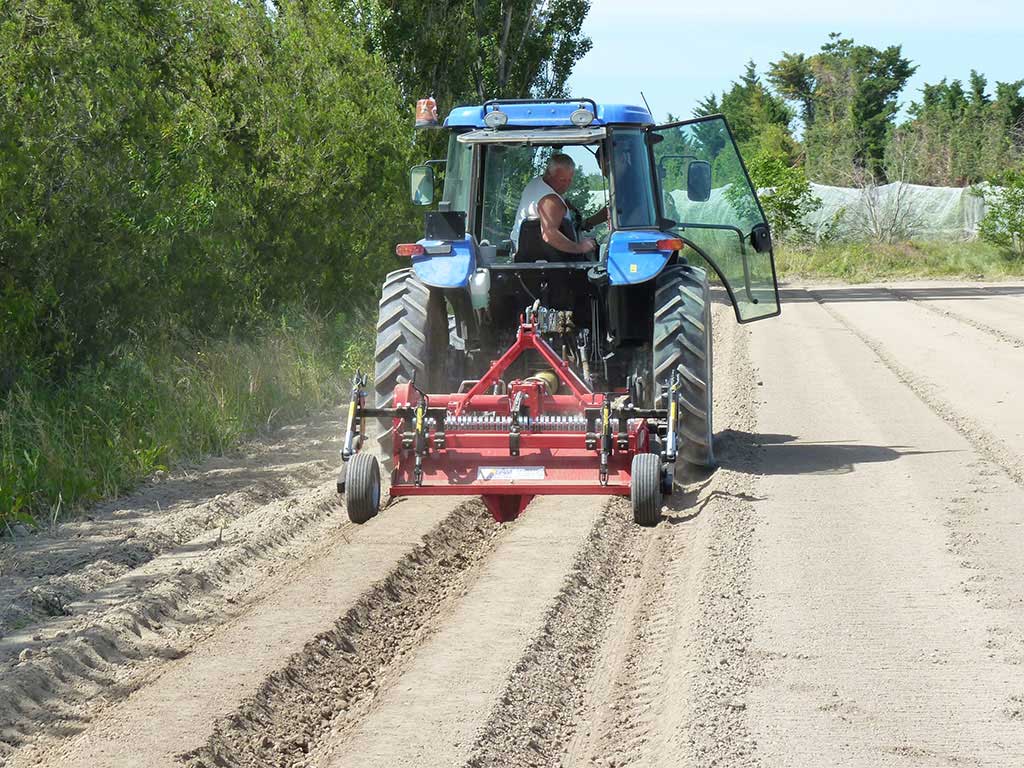

Stone buriers with bed former shaper RSG at work
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper
Massano - Machines for horticulture
Stone buriers with bed former shaper RSG

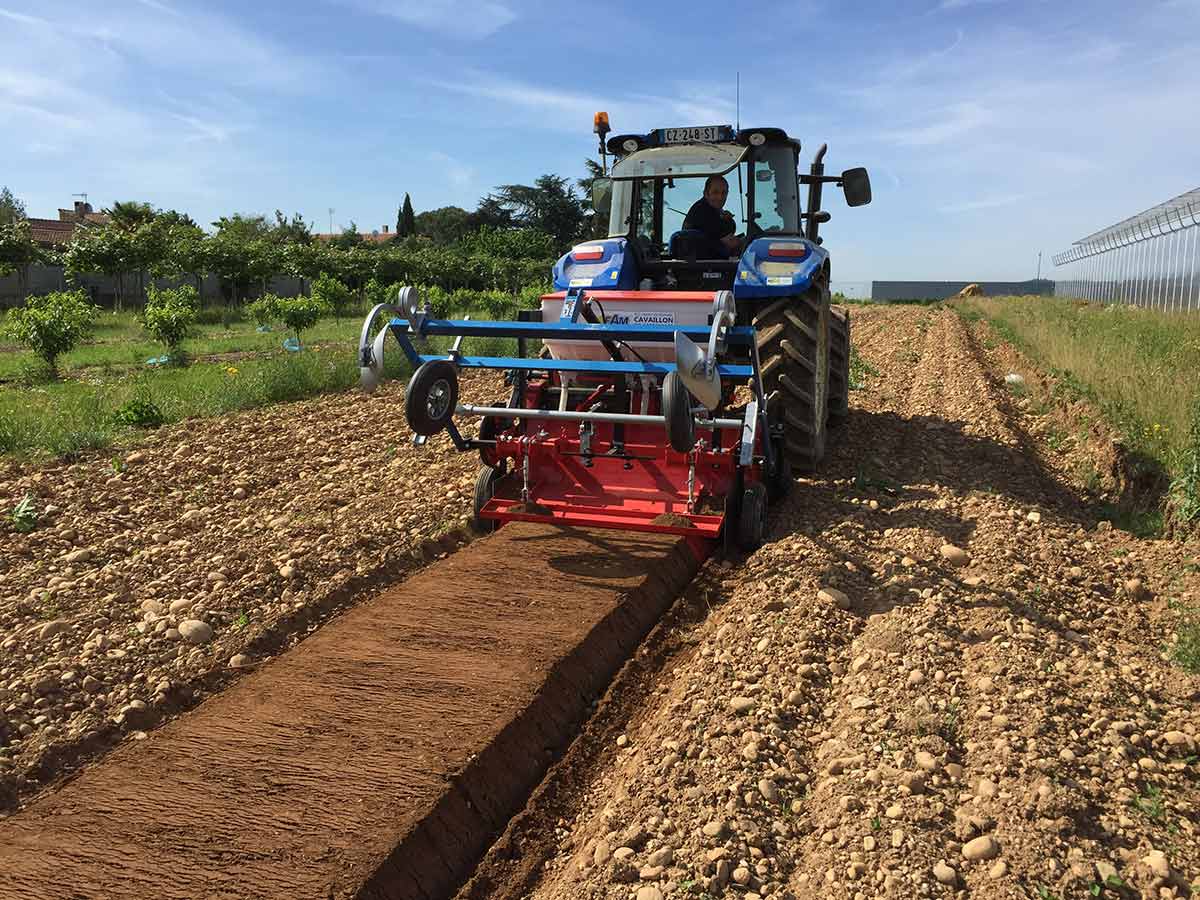

Stone buriers with bed former shaper RSG at work
