folding
for tractors from 160 to 360 HP
working width from 340 to 580 cm
Massano s.n.c. - Stone buriers with bed former shaper TITAN
Stone buriers with bed former shaper TITAN - Massano s.n.c.

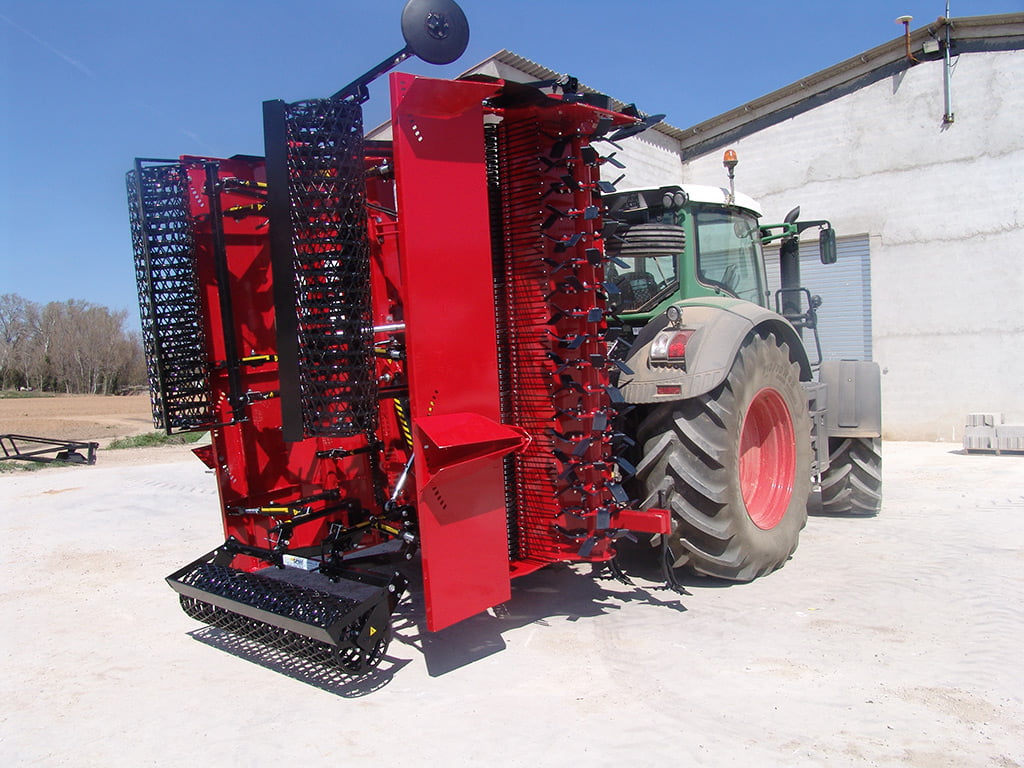

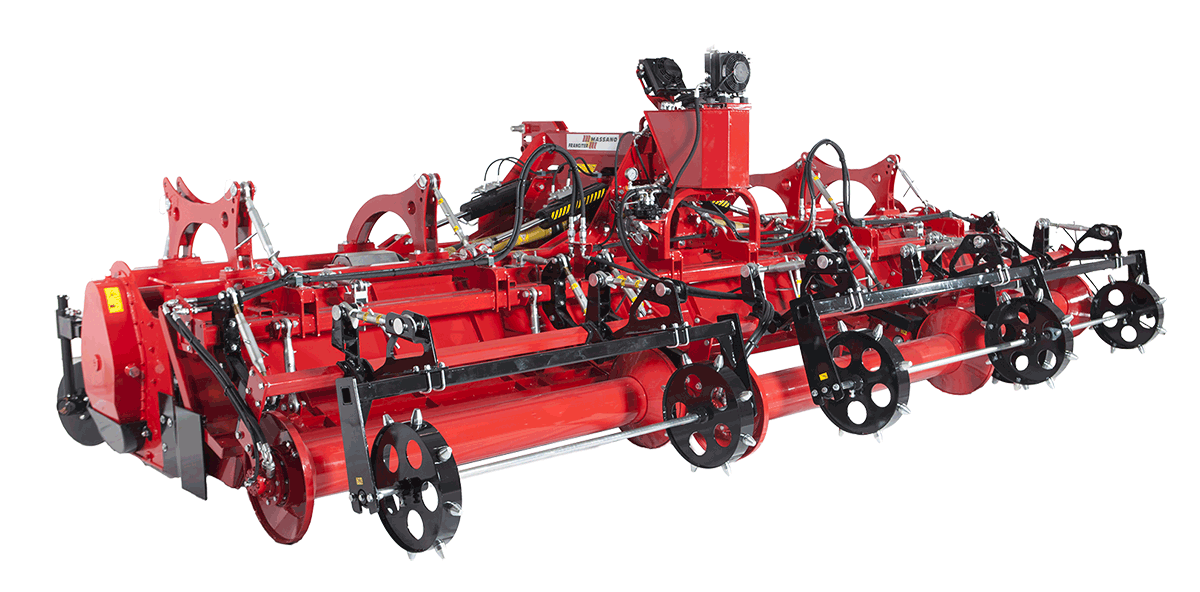

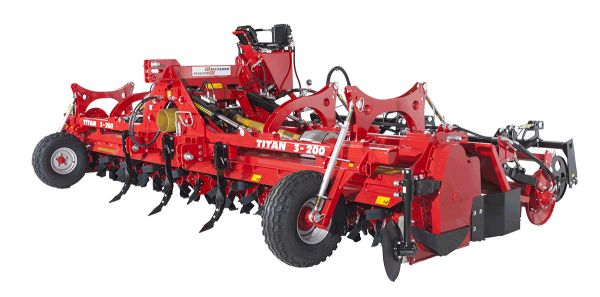

Built with a working width from 340 to 580 cm, required power from 160 to 360 HP and working depth from 15 to 30 cm. ROTOSTONE TITAN RSE is a series of folding stone buriers with bed former shaper for contractors and large companies. The particular frame's design allows to limit its size during transport at 2,8 meters.
Thanks to the modular structure of our machines it is possible to link to TITAN stone burier with bed former shaper different accessories realized on request of our customers.
Standard Equipment:
- 3-Point linkage cat. 2°-3°.
- Single speed gearbox with 1000 rpm PTO.
- Double transmission by gears.
- Central support bearing.
- 4/6 blades each flange type Rotostone.
- Double frame made with special steel IMEX 700.
- Rear adjustable and self- cleaned selection grill.
- 3 Rear Bed Former shapers with adjustable manual jacks.
- Side ploughs adjustable.
- Rear wheels with adjustable manual jacks.
- Front discs conveyor ploughs.
- 2 side Cardan shafts with 4 discs clutch.
- 1 central Cardan shaft direct 1” 3/4 Z 20.
- Folding frame with 4 cylinders.
- “CE” Safety guards.
N.B.: It is available a model with a higher frame to work in soils with big stones.
-

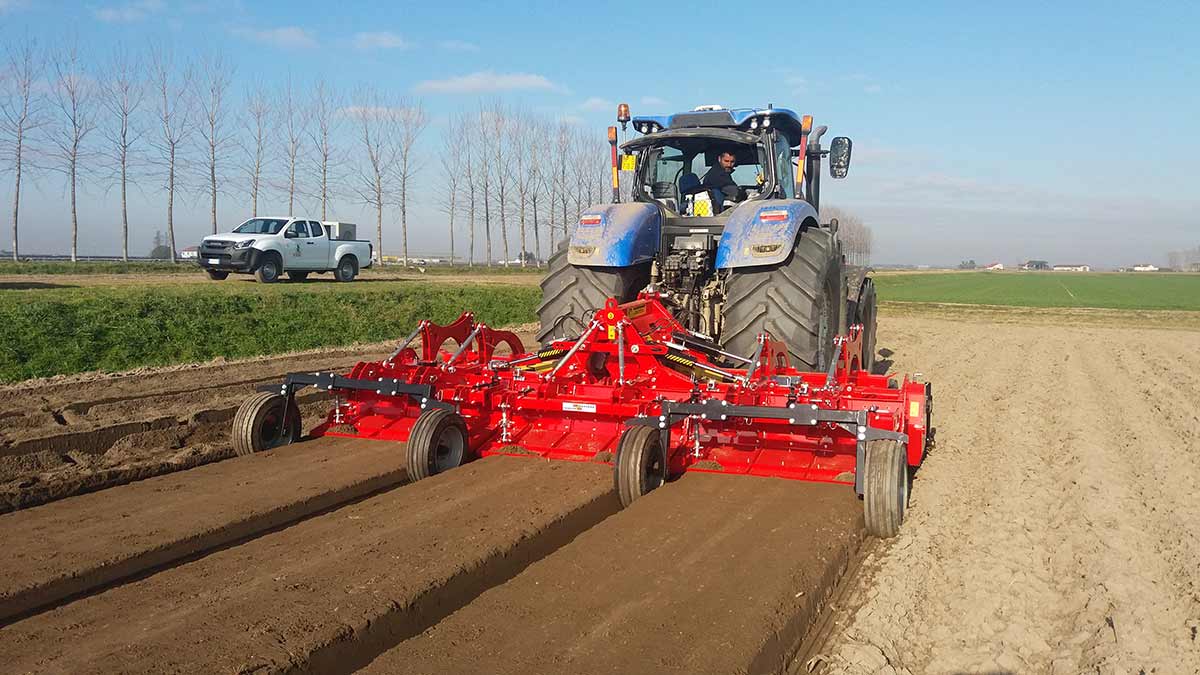

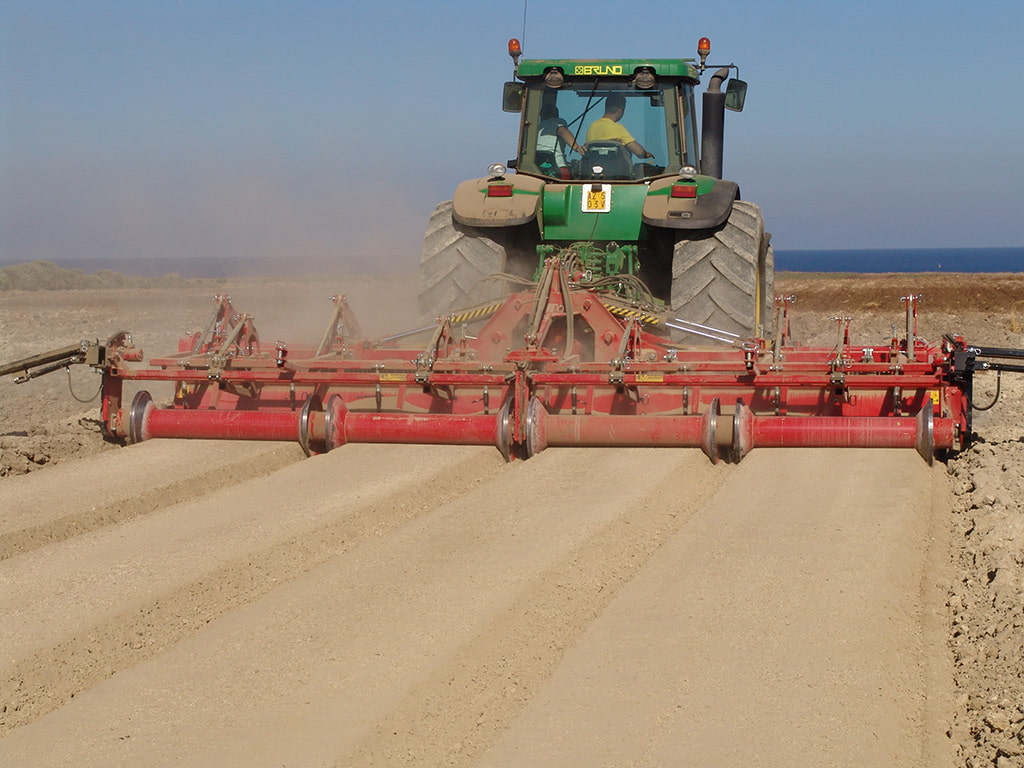

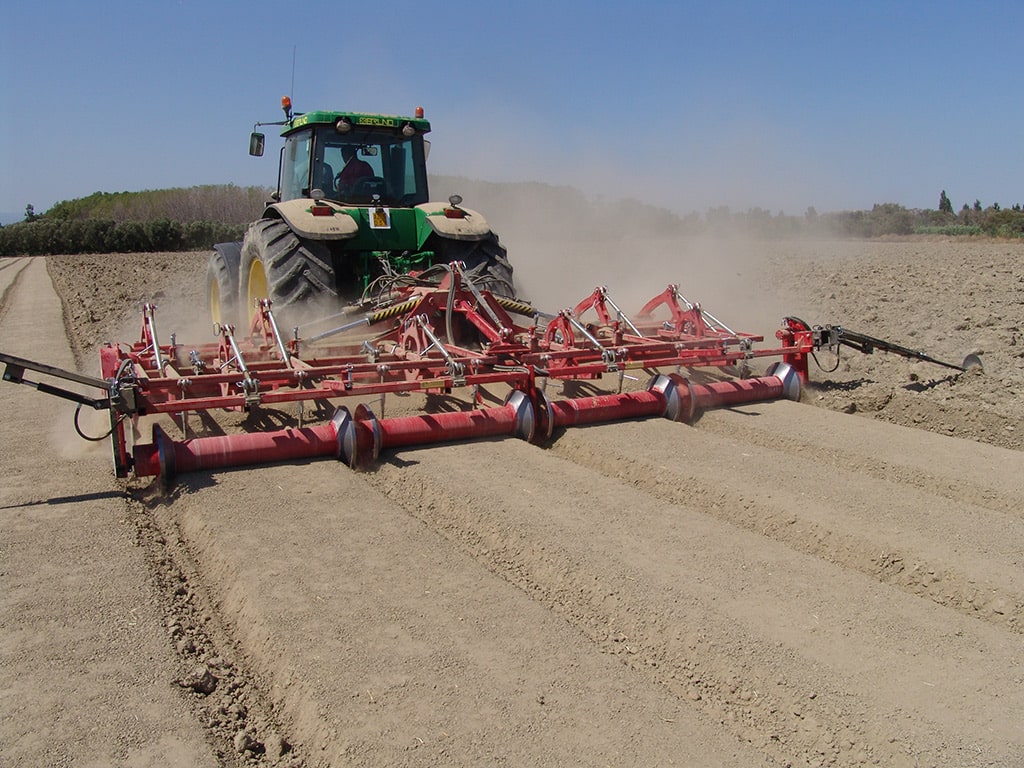

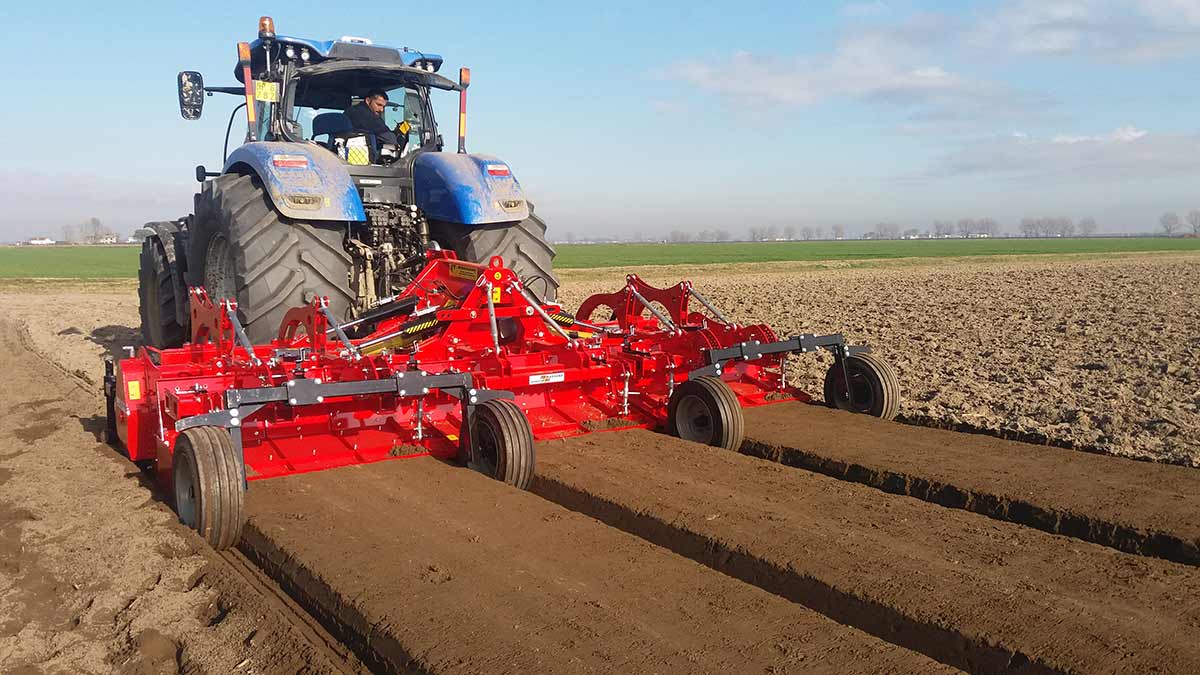

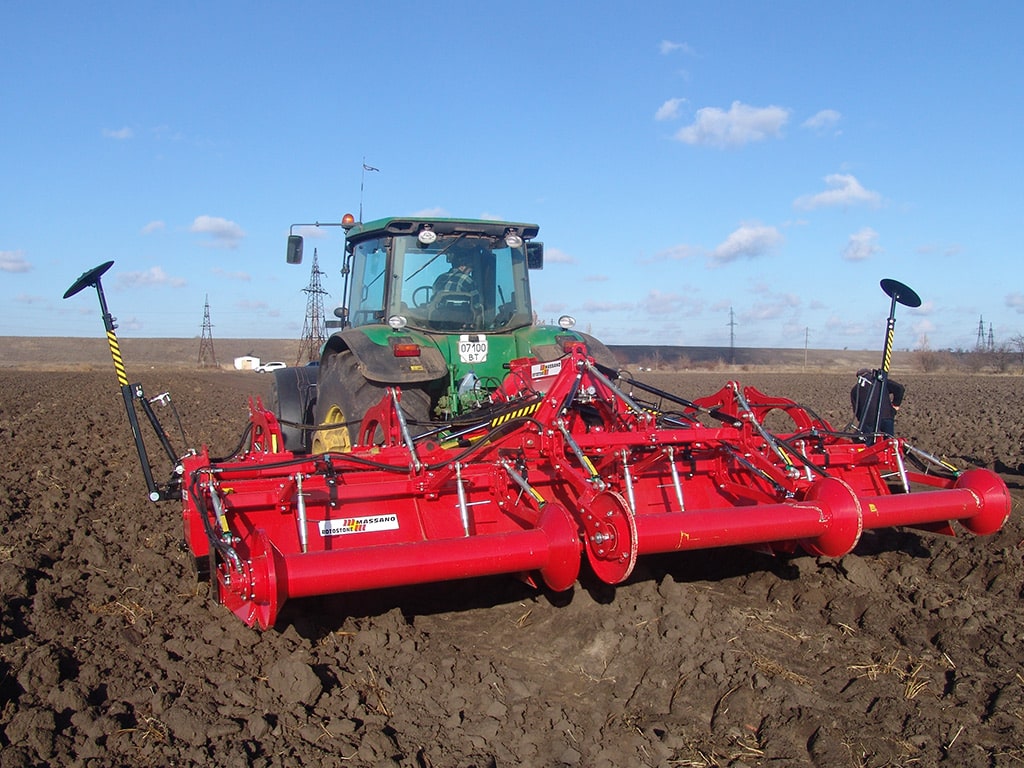

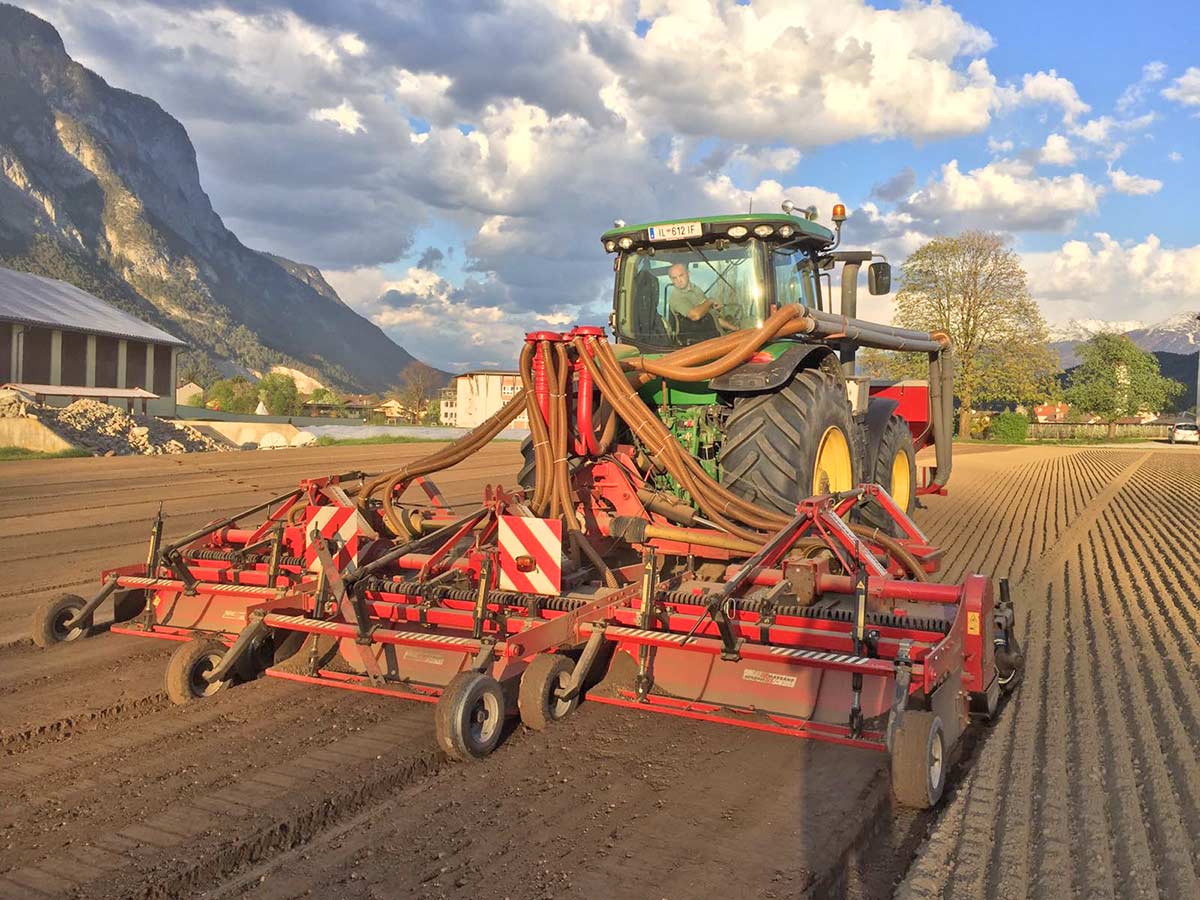

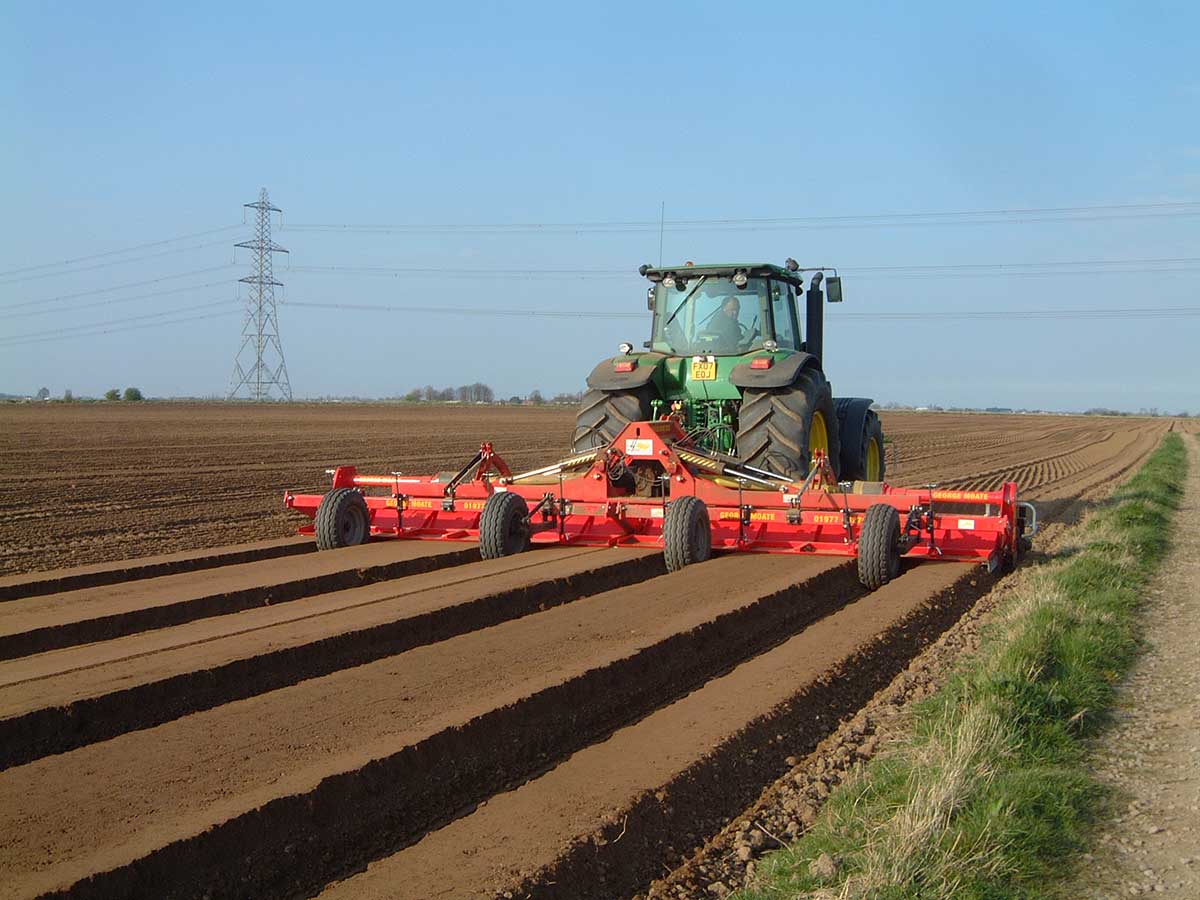

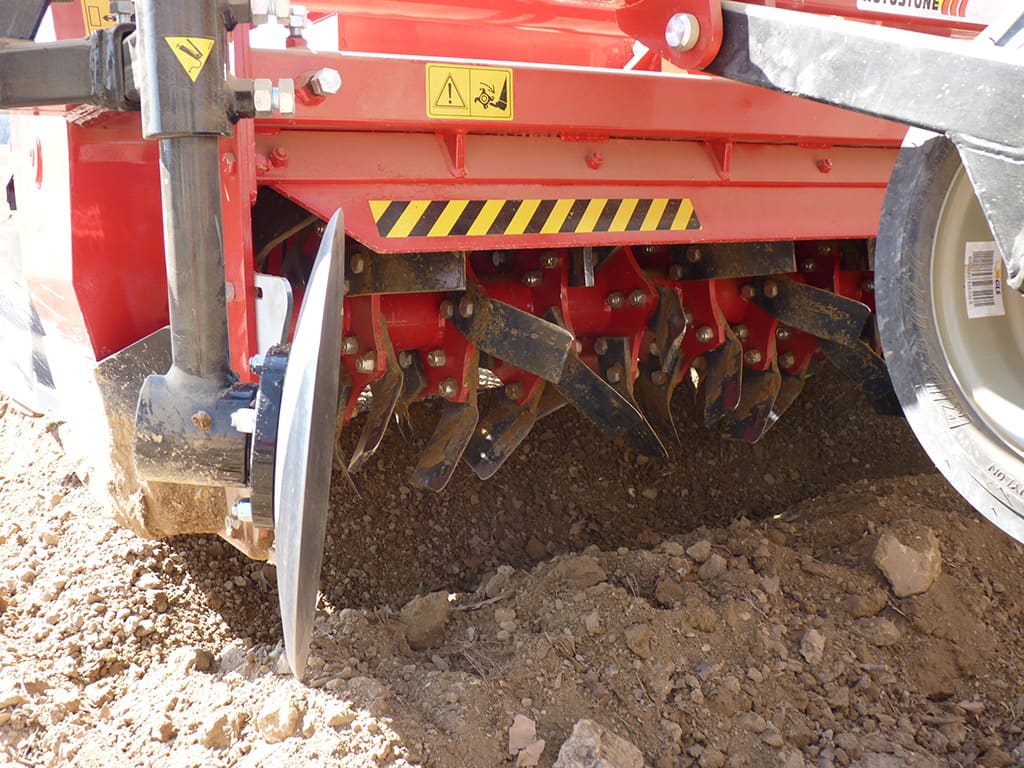

Stone burier with bed former shaper TITAN at work

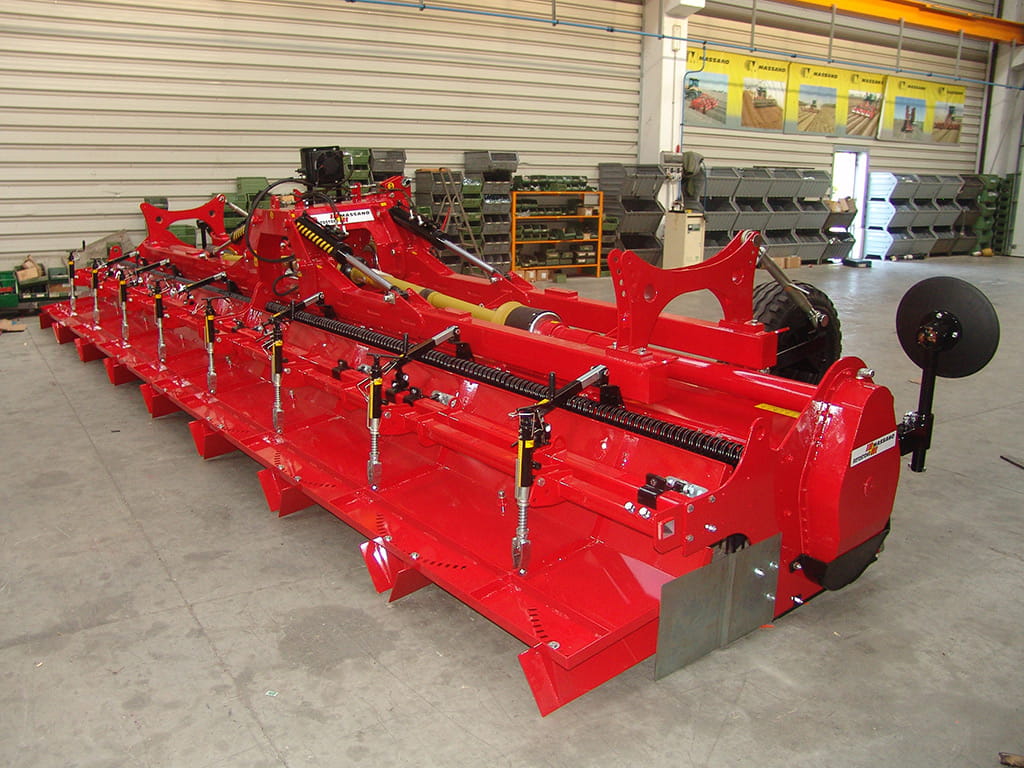

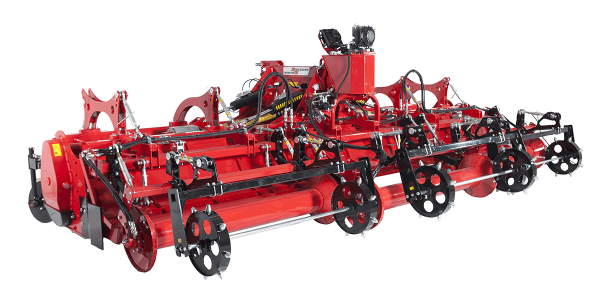

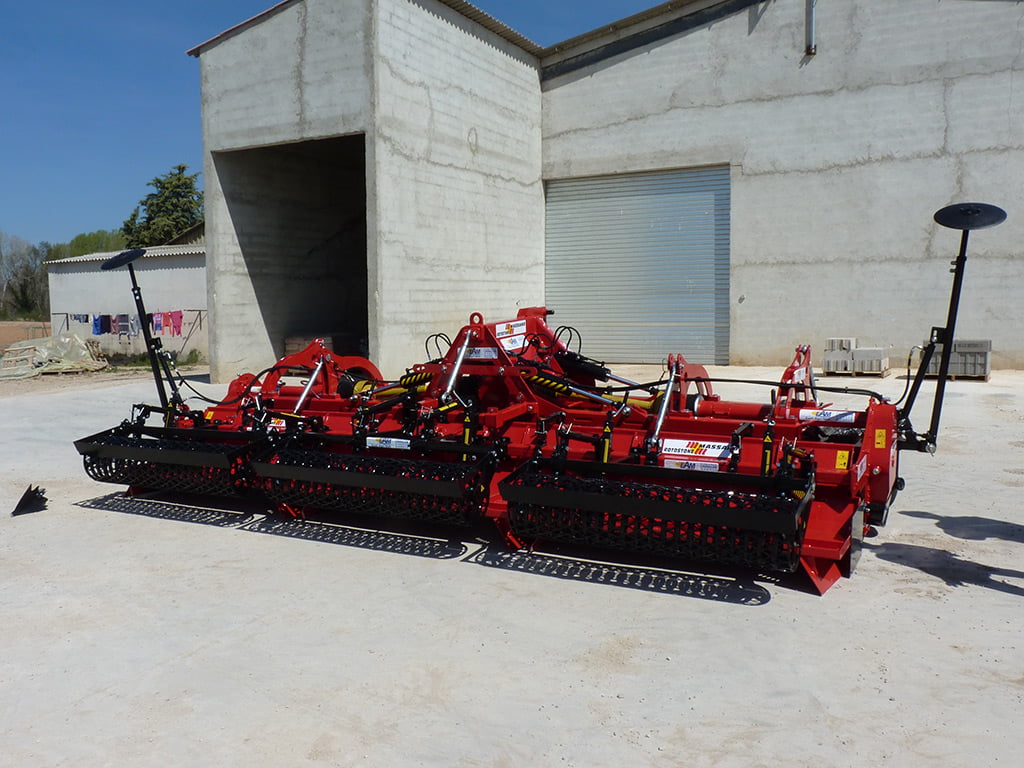

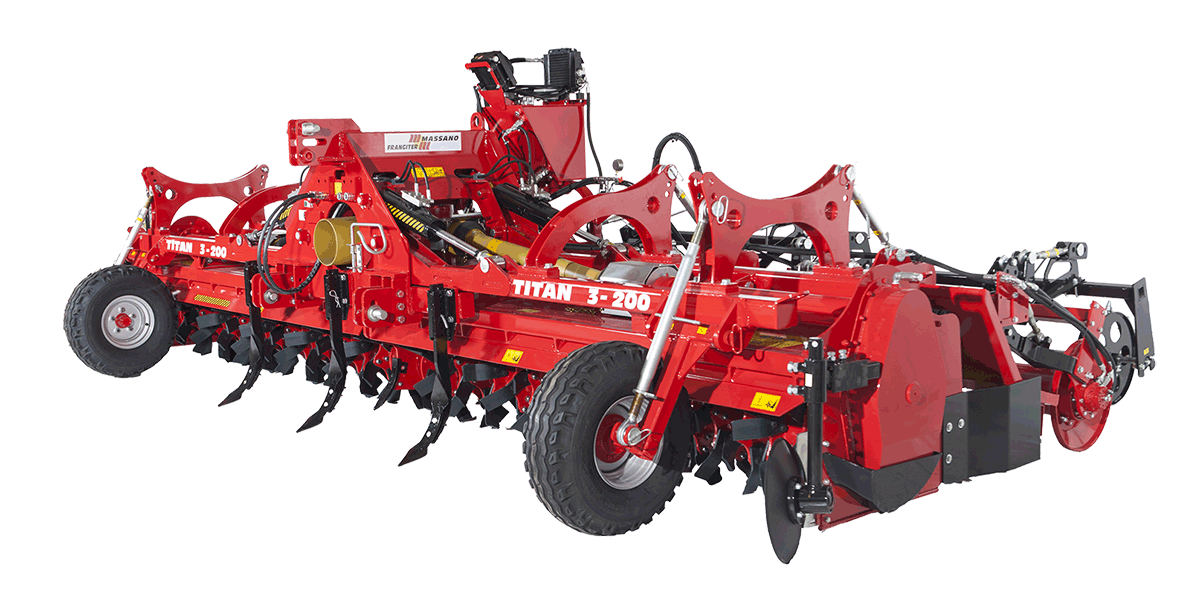

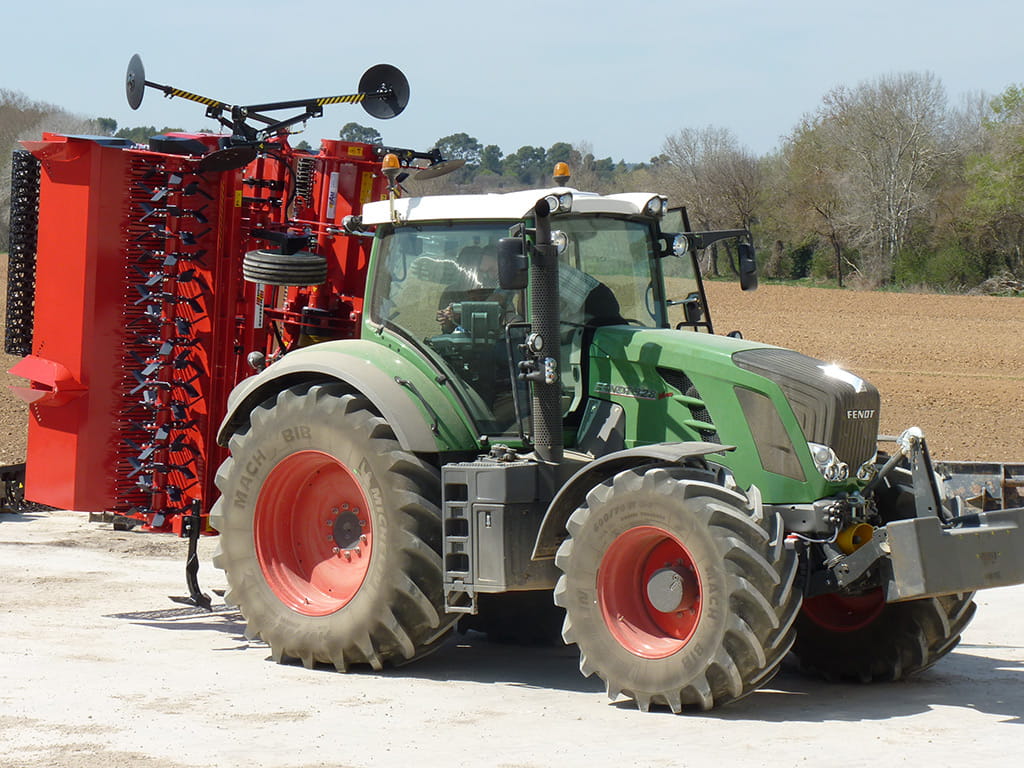

Stone buriers with bed former shaper TITAN

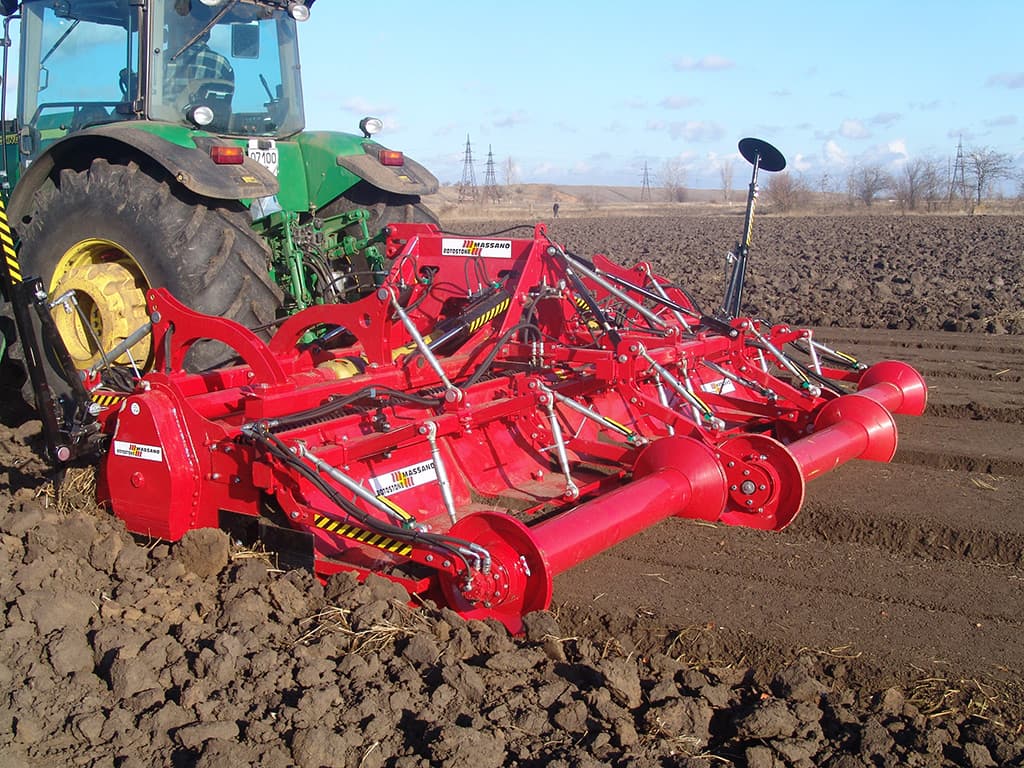

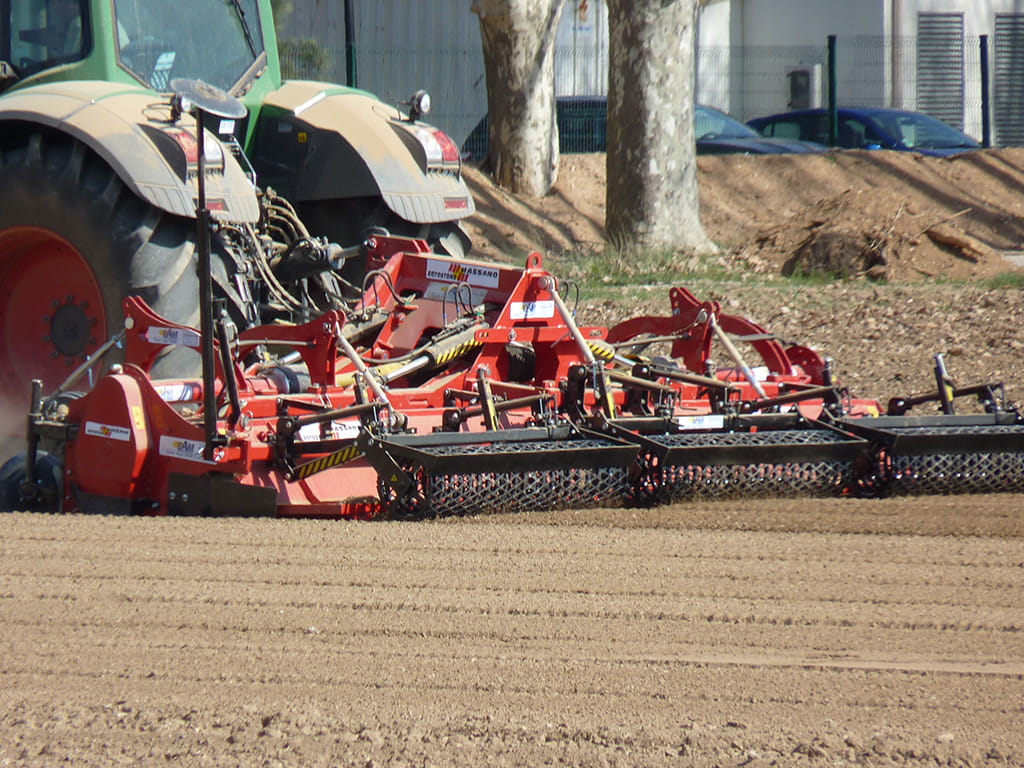

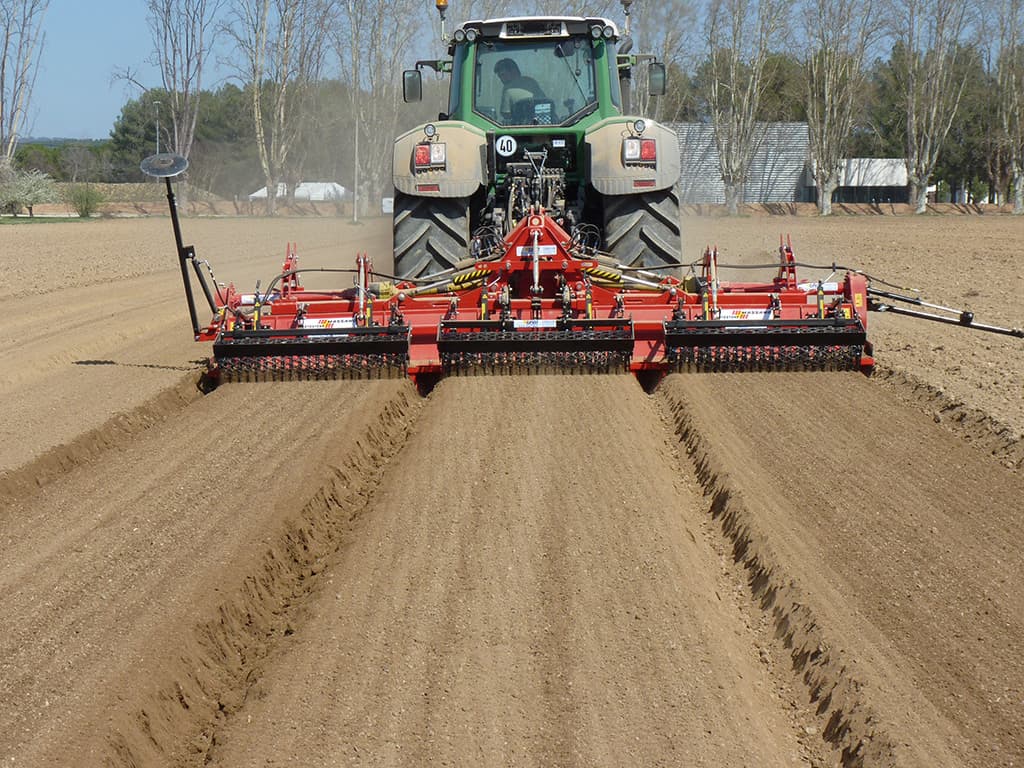

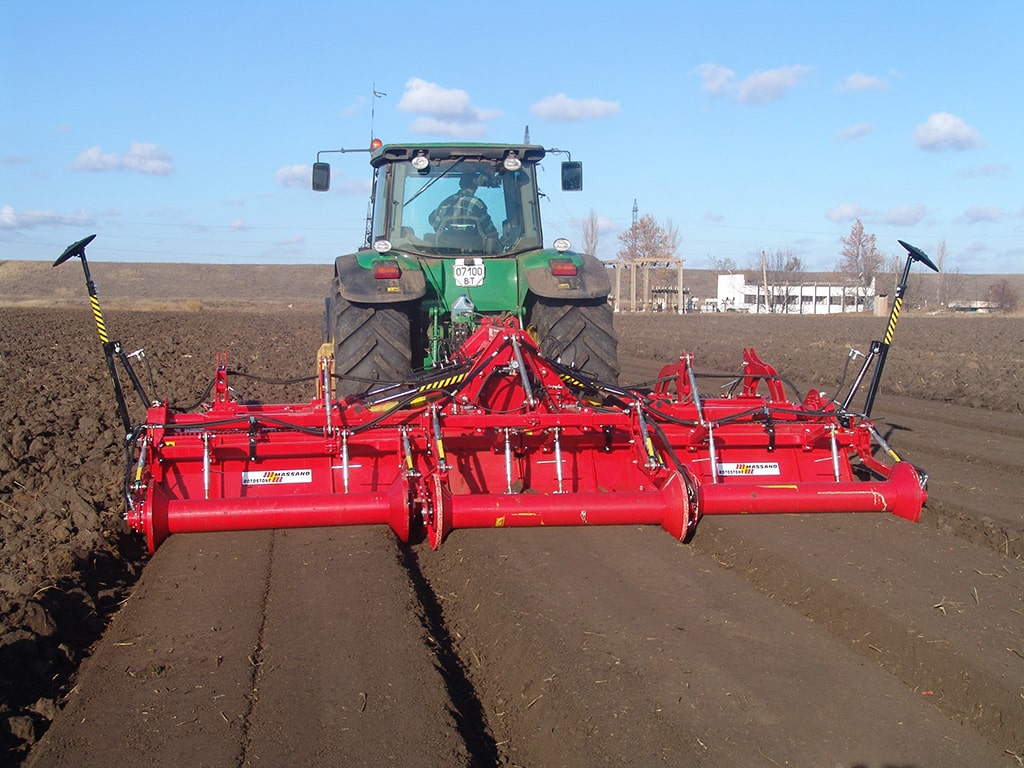

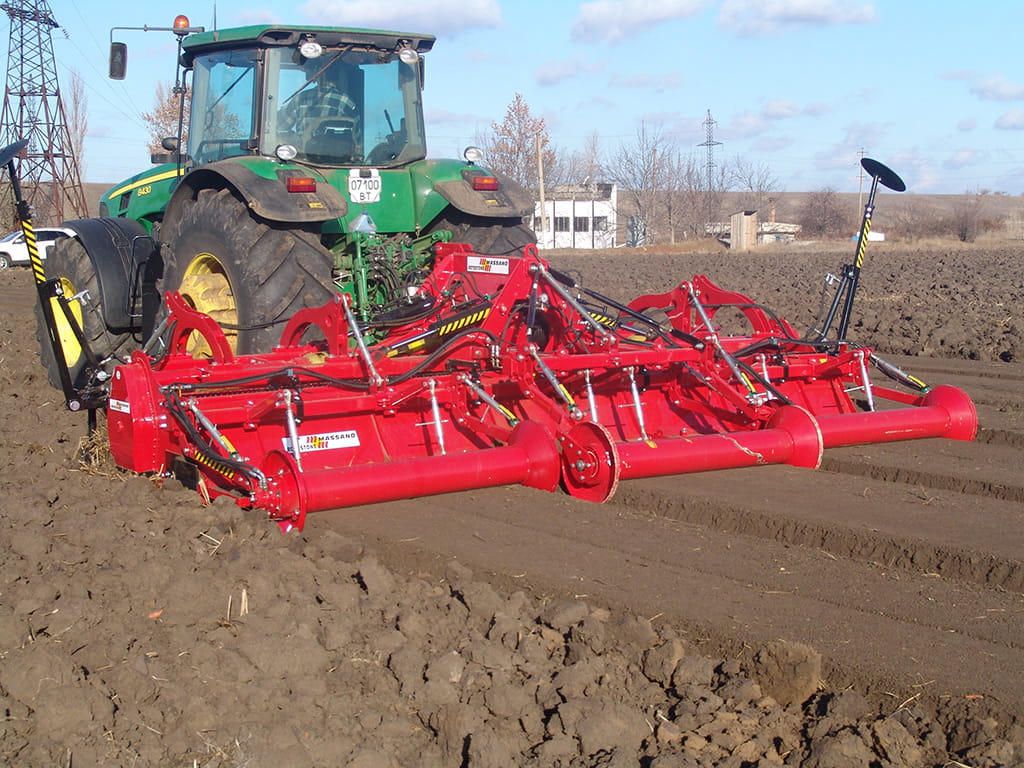

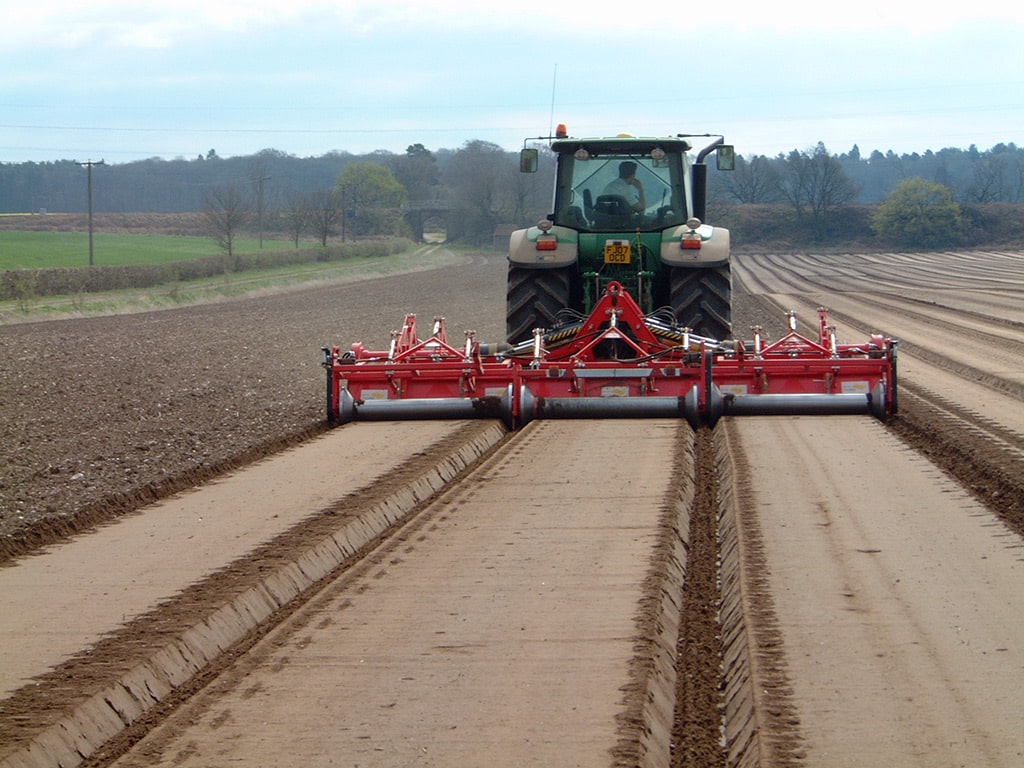

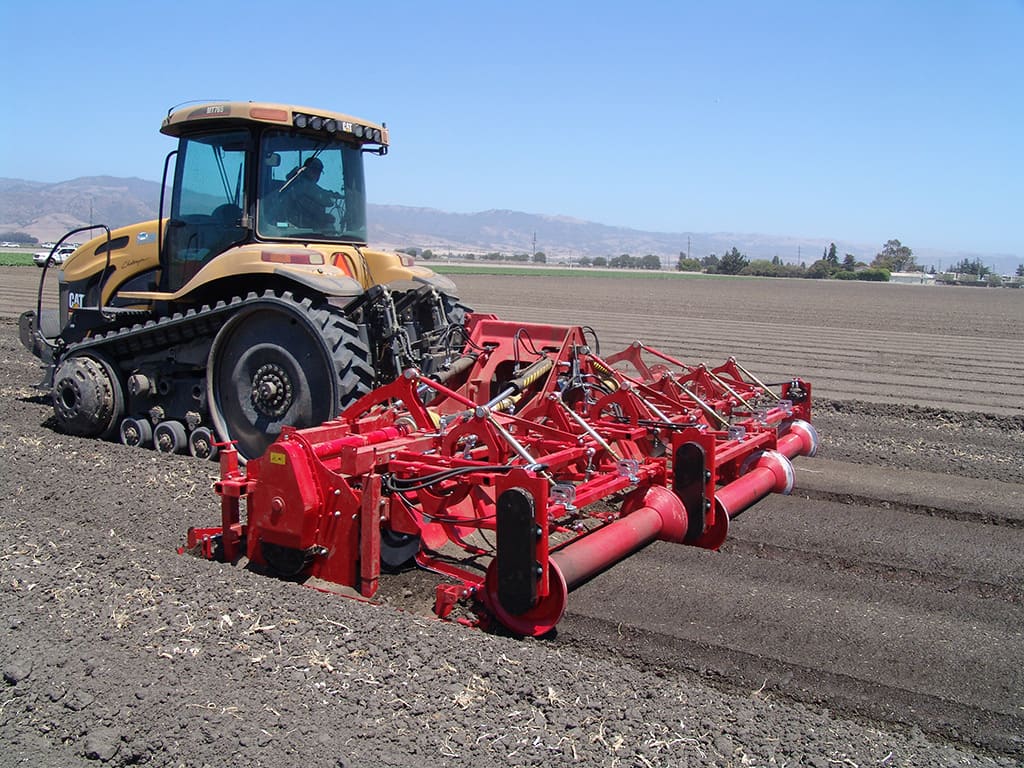

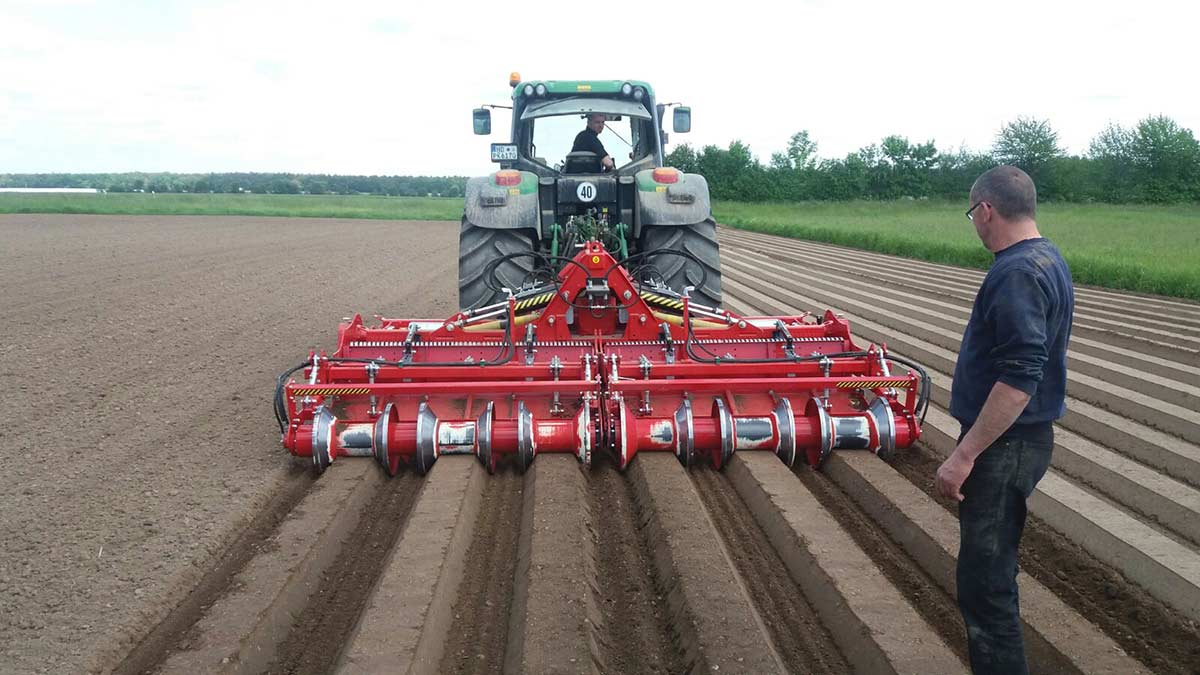

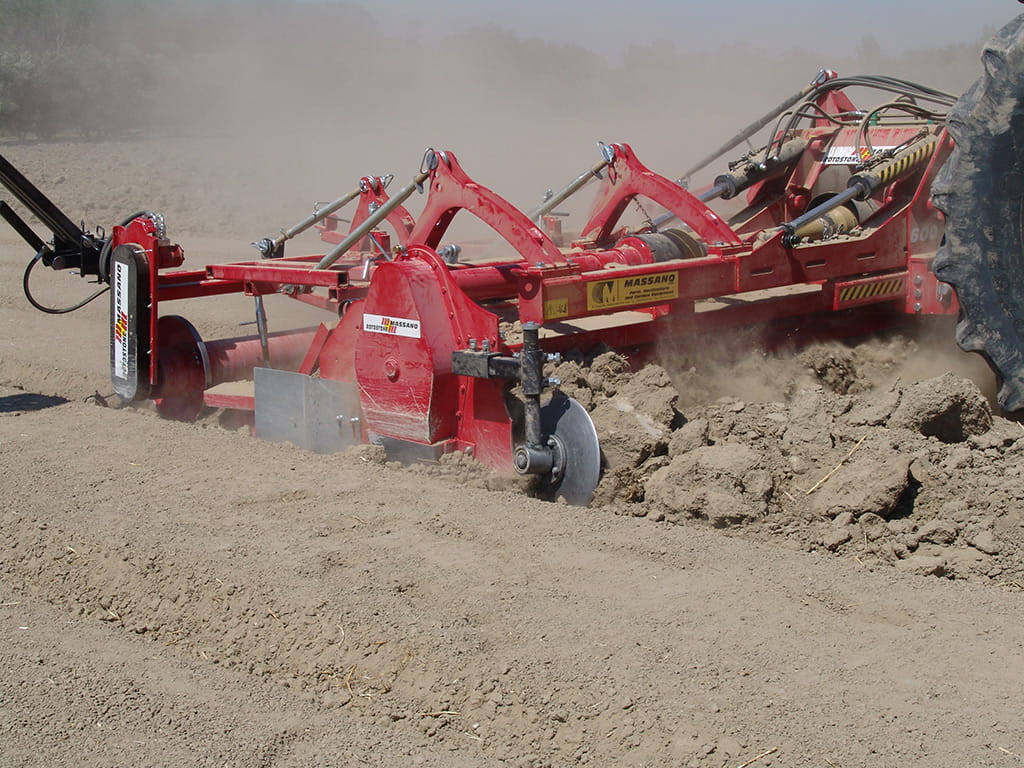

Stone buriers with bed former shaper TITAN at work
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper for horticulture
Agricultural machinery for horticulture
Stone buriers with bed former shaper
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper TITAN
Stone buriers with bed former shaper TITAN at work
Massano - Machines for horticulture
Stone buriers with bed former shaper for horticulture
Stone buriers with bed former shaper
Agricultural machinery
Stone buriers with bed former shaper TITAN at work
Stone buriers with bed former shaper TITAN
Agricultural machinery for horticulture
Stone buriers with bed former shaper
Massano - Machines for horticulture
Stone buriers with bed former shaper TITAN at work
Stone buriers with bed former shaper TITAN
Stone buriers with bed former shaper for horticulture
Massano - Machines for horticulture
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper TITAN at work
Stone buriers with bed former shaper TITAN
-
Stone burier with bed former shaper TITAN at work
-

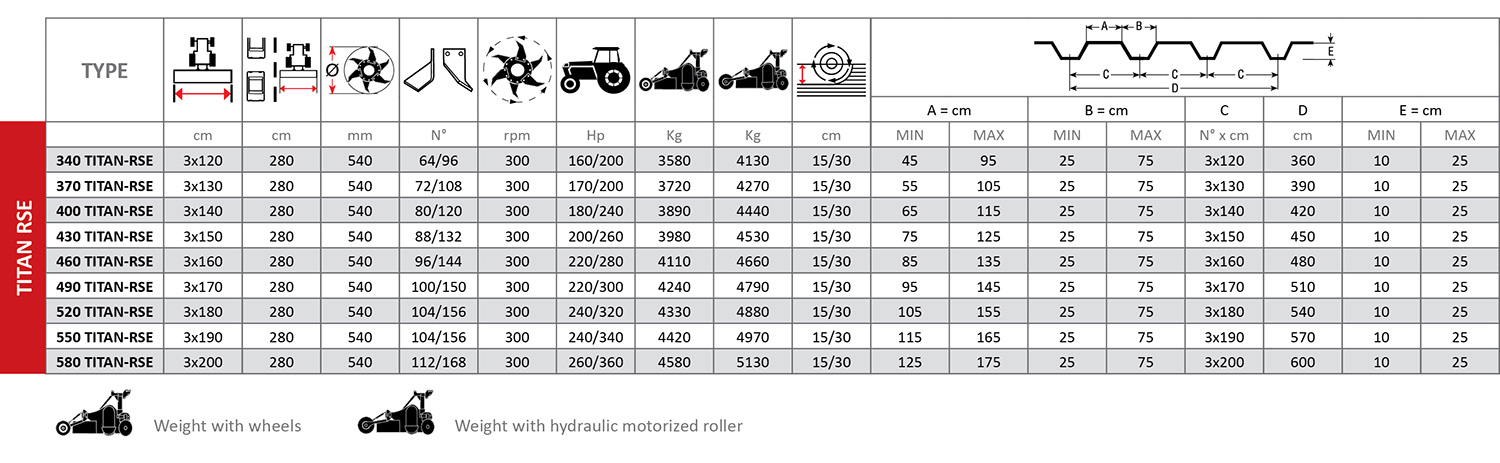

Download pdf technical file of stone burier with bed former shaper TITAN
-
