fixed
for tractors from 130 to 280 HP
working width from 340 to 600 cm
Stone buriers with rear roller type RSE-PLUS 2 - Massano
Massano macchine agricole - Stone buriers with rear roller type

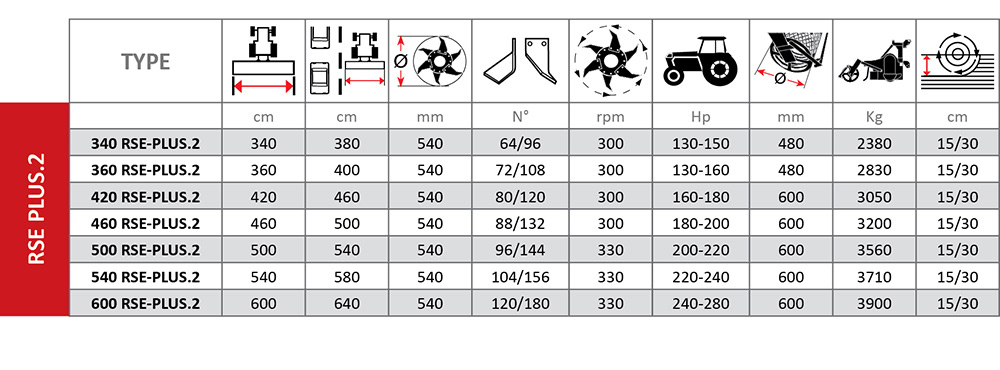

Built with a working width from 340 to 600 cm, required power from 130 to 280 HP and working depth from 15 to 30 cm. RSE PLUS.2 stone burier is used mainly by contractors and large horticultural companies in order to improve the preparation of the seeding bed with one pass. Designed to work in soils with stones that have a diameter from 20 to 25 cm.
Standard Equipment:
- 3-Point linkage cat. 2°-3°.
- Single speed gearbox with 1000 rpm PTO.
- Double transmission by gears.
- Central support bearing.
- 4/6 blades each flange type Rotostone.
- Double frame made with special steel IMEX 700.
- Adjustable and self- cleaned selection grill.
- Rear bonnet adjustment with adjustable manual jacks.
- Rear perforated metal roller Ø 600 mm.
- Pin and hole adjustment roller.
- Side Cardan shaft with 4 discs clutch.
- Central cardan shaft direct 1” 3/8 Z 6.
- “CE” Safety guards.
-
Stone burier with rear roller RSE-PLUS.2 at work
Stone buriers with rear roller type RSE-PLU.2
Stone buriers with rear roller type RSE-PLU.2 at work
Massano agricultural machinery - Stone buriers with rear roller
Massano - Stone buriers with rear roller
Stone buriers with rear roller for agriculture
Stone buriers with rear roller type RSE-PLU.2
Stone buriers with rear roller for agriculture
Stone buriers with rear roller type RSE-PLU.2 at work
Stone buriers with rear roller for agriculture
Massano - Stone buriers with rear roller
Stone buriers with rear roller type RSE-PLU.2
Massano agricultural machinery - Stone buriers with rear roller
Stone buriers with rear roller type RSE-PLU.2 at work
Massano - Stone buriers with rear roller
Stone buriers with rear roller type RSE-PLU.2
-
Stone burier with rear roller RSE-PLUS.2 at work
-
Download pdf technical file of stone burier with rear roller RSE-PLUS.2
-
