Stone burier with rear roller type RSE-PLUS

fixed
for tractors from 150 to 240 HP
working width from 250 to 400 cm

Stone buriers with rear roller type RSE-PLUS - Massano

Stone buriers with rear roller type RSE-PLUS - Massano

Massano s.n.c. - Stone buriers with rear roller type RSE-PLUS

Massano s.n.c. - Stone buriers with rear roller type RSE-PLUS



Built with a working width from 250 to 400 cm, required power from 150 to 240 HP and working depth from  15 to 30 cmRSE PLUS stone burier is used in different branches where the farmers have to work in extreme conditions with the possibility to reach high working depths in every situation. Designed to work in soils with stones that have a diameter from 15 to 30 cm.




Standard Equipment

  • 3-Point linkage cat. 2°-3°.
  • Single speed gearbox with 1000 rpm PTO.
  • Side gears drive in oil bath.
  • 4/6 blades each flange type Rotostone.
  • Double frame made with special steel IMEX 700.
  • Adjustable and self- cleaned selection grill.
  • Rear bonnet adjustment with adjustable manual jacks.
  • Rear perforated metal roller Ø 600 mm (40 cm longer than the machine).
  • Pin and hole adjustment roller.
  • Side Cardan shaft with discs clutch.
  • Central cardan shaft direct 1” 3/8 Z 6.
  • "CE" Safety guards.





Stone burier with rear roller type RSE-PLUS - Massano agricultural machinery

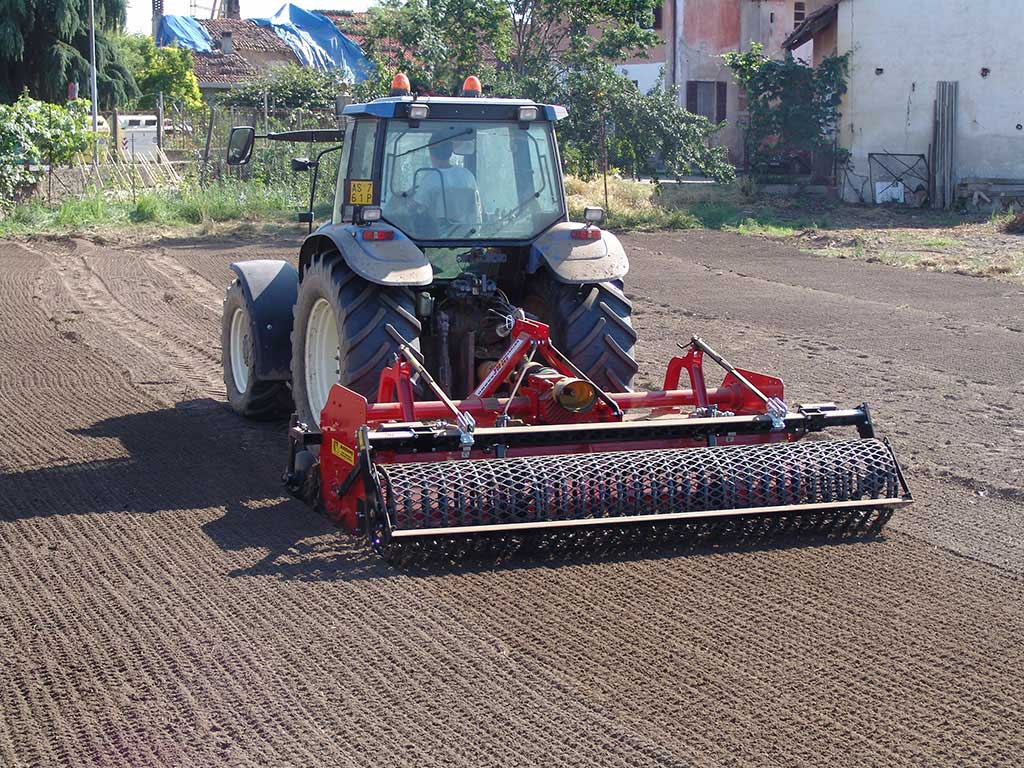

  • Stone burier with rear roller RSE-PLUS at work

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS at work

    Stone buriers with rear roller type RSE-PLUS at work

    Massano s.n.c. - Stone buriers with rear roller

    Massano s.n.c. - Stone buriers with rear roller

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS at work

    Stone buriers with rear roller type RSE-PLUS at work

    Massano agricultural machinery

    Massano agricultural machinery

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS at work

    Stone buriers with rear roller type RSE-PLUS at work

    Massano agricultural machinery

    Massano agricultural machinery

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS

    Massano s.n.c. - Stone buriers with rear roller

    Massano s.n.c. - Stone buriers with rear roller

    Stone buriers with rear roller type RSE-PLUS at work

    Stone buriers with rear roller type RSE-PLUS at work

    Stone buriers with rear roller type RSE-PLUS

    Stone buriers with rear roller type RSE-PLUS

    Massano s.n.c. - Stone buriers with rear roller

    Massano s.n.c. - Stone buriers with rear roller

  • Download pdf technical file of stone burier with rear roller RSE-PLUS

    Stone burier with rear roller type RSE-PLUS
  • Under construction.


Massano designs and produces agricultural machienry

Designs and produces a wide range of agricultural machinery for agriculture, horticulture, gardening, vineyards and orchards.
