Stone burier with rear roller type RSG

fixed
for tractors from 40 to 90 HP
working width from 125 to 210 cm

Stone buriers with rear roller type RSG

Stone buriers with rear roller type RSG

Stone buriers with rear roller type RSG - Massano

Stone buriers with rear roller type RSG - Massano



Built with a working width from 125 to 210 cm, required power from 40 to 90 HP and working depth from 15 to 25 cm. RSG stone burier is used mainly by small horticultural companies and in gardening sector where customers need a solid and light machine with strong components. Designed to work in soils with stones that have a diameter from 10 to 20 cm.


Standard Equipment

  • 3-Point linkage cat.1°-2°.
  • Single speed gearbox with 540 rpm PTO.
  • Side transmission through reinforced chain Type ASA 100 HE.
  • 4/6 blades each flange type Rotostone.
  • Double frame made with special steel IMEX 700.
  • Adjustable and self-cleaned selection grill.
  • Rear bonnet adjustment with adjustable manual jacks.
  • Rear perforated metal roller Ø 360 mm (40 cm longer than the machine).
  • Pin and hole adjustment roller.
  • Cardan shaft with safety bolt.
  • "CE" Safety guards.





Massano agricultural machinery - Stone burier with rear roller type RSG

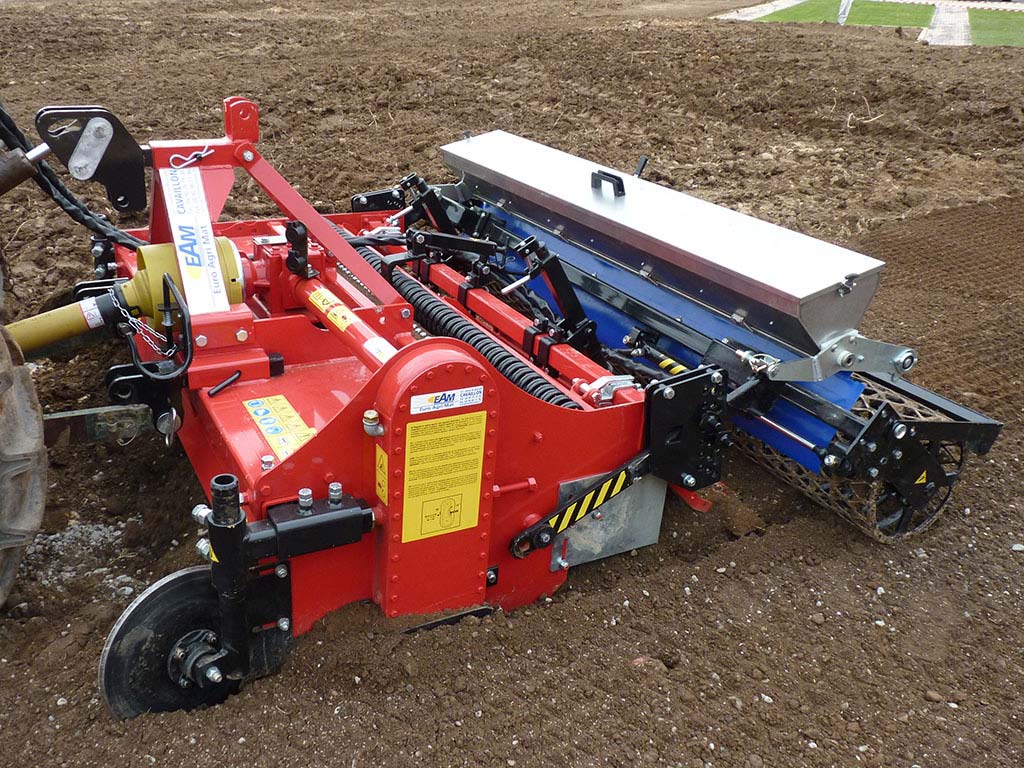

  • Stone burier with rear roller RSG at work

    Stone buriers with rear roller type RSG

    Stone buriers with rear roller type RSG

    Stone buriers with rear roller type RSG - Massano s.n.c.

    Stone buriers with rear roller type RSG - Massano s.n.c.

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller for vineyards

    Massano - Stone buriers with rear roller RSG at work

    Massano - Stone buriers with rear roller RSG at work

    Stone buriers with rear roller type RSG

    Stone buriers with rear roller type RSG

    Stone buriers with rear roller type RSG

    Stone buriers with rear roller type RSG

    Massano - Stone buriers with rear roller RSG at work

    Massano - Stone buriers with rear roller RSG at work

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller type RSG - Massano s.n.c.

    Stone buriers with rear roller type RSG - Massano s.n.c.

    Stone buriers with rear roller type RSG

    Stone buriers with rear roller type RSG

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller type RSG - Massano s.n.c.

    Stone buriers with rear roller type RSG - Massano s.n.c.

  • Stone burier with rear roller RSG at work

  • Download pdf technical file of Stone burier with rear roller RSG

    Stone burier with rear roller type RSG - Massano agricultural machinery
  • Under construction.
