fixed
for tractors from 35 to 90 HP
working width from 105 to 185 cm
Stone burier with rear roller type RSH-M
Stone burier with rear roller type RSH-M - Massano s.n.c.
Built with a working width from 105 to 185 cm, required power from 35 to 90 HP and working depth from 15 to 22 cm. RSH-M model is used successfully in the preparation of green areas and in horticulture. Designed to work in light soils with stones that have a diameter from 10 to 20 cm.
Standard Equipment
- 3-Point linkage cat.1°-2°.
- Single speed gearbox with 540 rpm PTO.
- Side transmission through reinforced chain Type ASA 100 HE.
- 4 blades each flange type Rotostone.
- Single frame made with special steel IMEX 700.
- Rear and self- cleaned selection grill.
- Rear bonnet adjustment with adjustable manual jacks.
- Rear perforated metal roller Ø 290 mm (30 cm longer than the machine).
- Pin and hole adjustment roller.
- Cardan shaft with safety bolt.
- "CE" Safety guards.
-

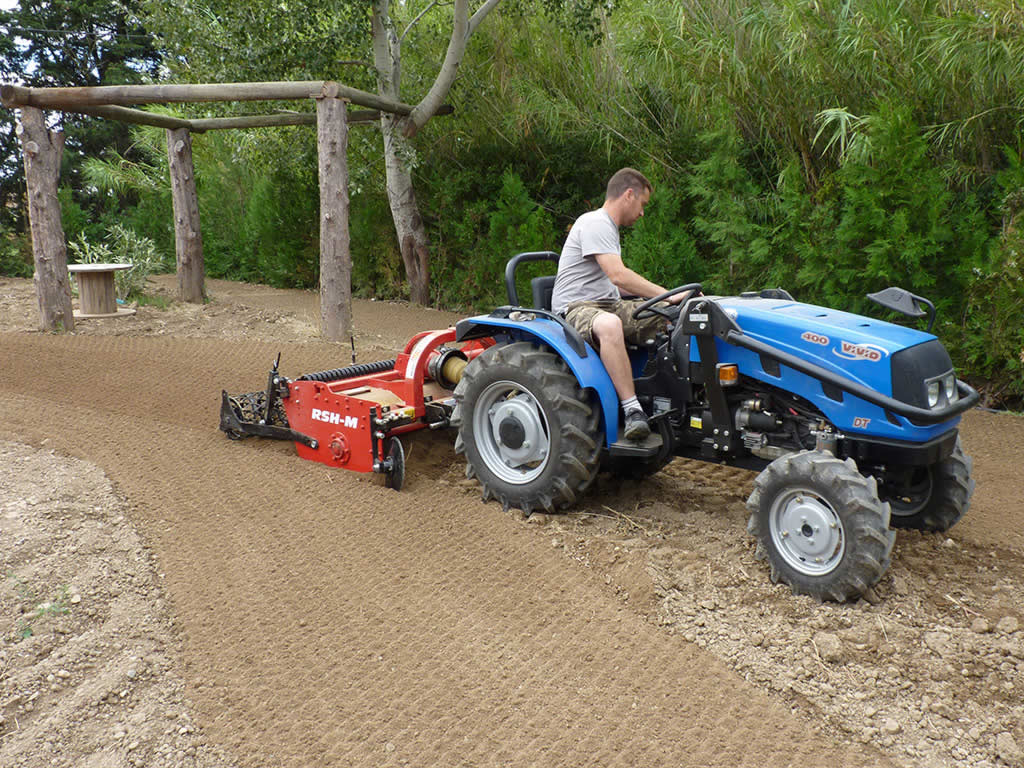

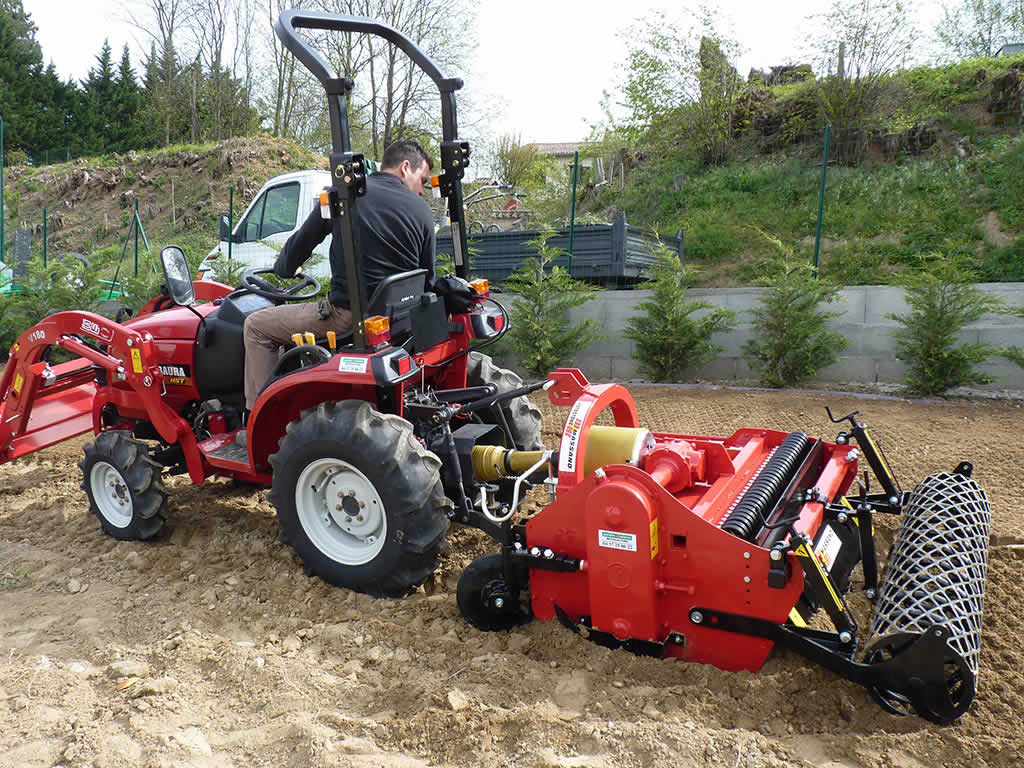

Stone burier with rear roller RSH-M at work
Stone burier with rear roller type RSH-M
Massano s.n.c. - Stone burier with rear roller type RSH-M
Stone burier with rear roller type RSH-M for gardening
Massano - machines for horticulture
Stone burier with rear roller type RSH-M at work
Stone burier with rear roller type RSH-M
Stone burier with rear roller type RSH-M created by Massano
Stone burier with rear roller type RSH-M for gardening
Massano - machines for horticulture
Massano s.n.c. - Stone burier with rear roller type RSH-M
Stone burier with rear roller type RSH-M at work
Stone burier with rear roller type RSH-M
Massano - machines for horticulture
Massano s.n.c. - Stone burier with rear roller type RSH-M
Stone burier with rear roller type RSH-M for gardening
Stone burier with rear roller type RSH-M
Stone burier with rear roller type RSH-M created by Massano
Stone burier with rear roller type RSH-M at work
-
Stone burier with rear roller RSH-M at work
-
Download pdf technical file of Stone burier with rear roller RSH-M
-
