Stone burier with rear roller type RSL

fixed
for tractors from 60 to 110 HP
working width from 125 to 250 cm

Stone buriers with rear roller type RSL

Stone buriers with rear roller type RSL

Massano s.n.c. - Stone buriers with rear roller type RSL

Massano s.n.c. - Stone buriers with rear roller type RSL

Built with a working width from 125 to 250 cm, required power from 60 to 110 HP and working depth from 15 to 25 cm. RSL stone burier is used mainly by horticultural companies that need a solid and light machine with strong components. Designed to work in soils with stones that have a diameter from 10 to 25 cm.


Standard Equipment

  • 3-Point linkage cat. 1°-2°.
  • Single speed gearbox with 540 rpm PTO.
  • Side transmission through reinforced chain Type ASA 120 HE.
  • 4/6 blades each flange type Rotostone.
  • Double frame made with special steel IMEX 700.
  • Adjustable and self- cleaned selection grill.
  • Rear bonnet adjustment with adjustable manual jacks.
  • Rear perforated metal roller Ø 420 mm (40 cm longer than the machine).
  • Pin and hole adjustment roller.
  • Cardan shaft with safety bolt.
  • "CE" Safety guards.





Stone burier with rear roller type RSL - Massano agricultural machinery

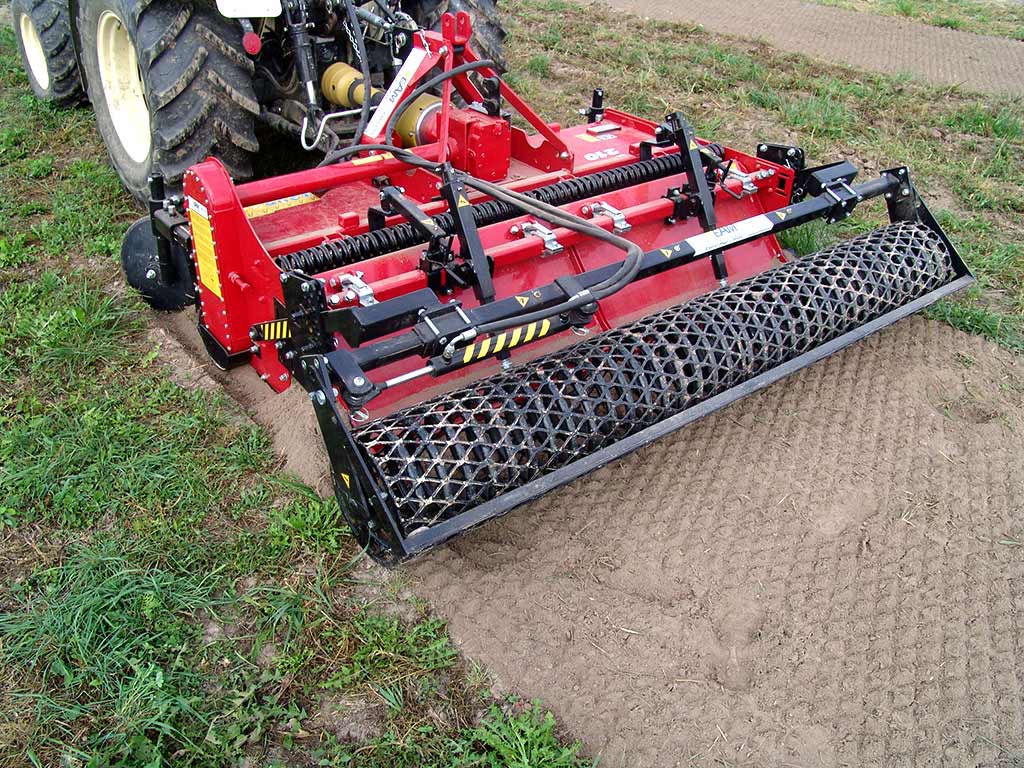

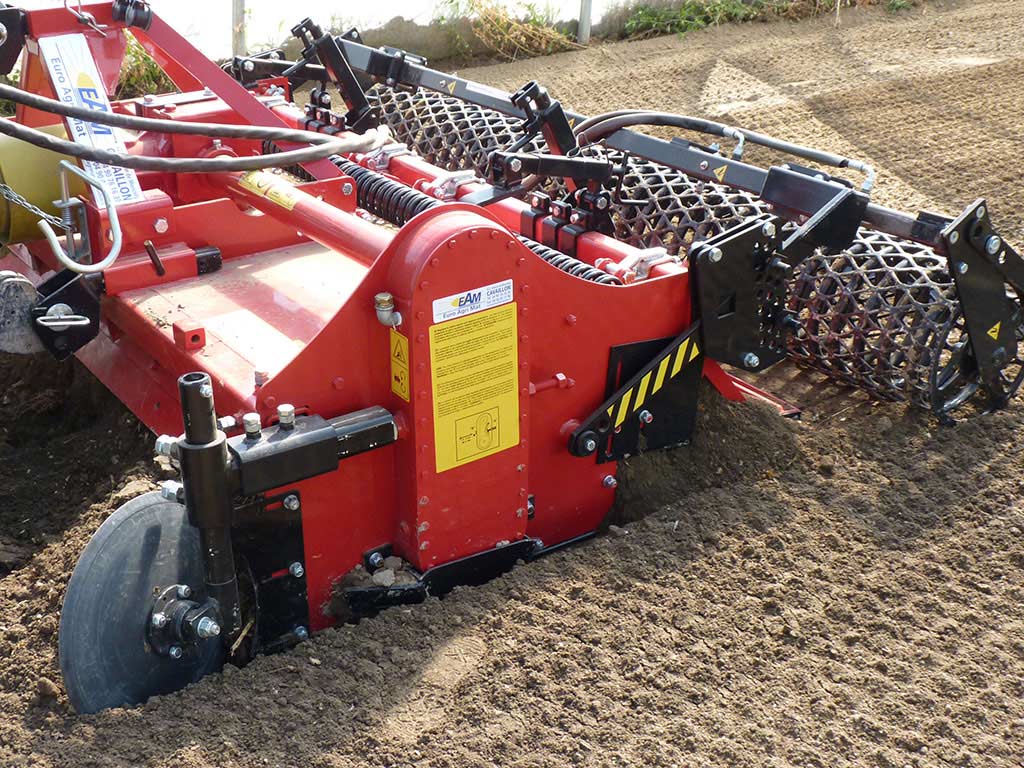

  • Stone burier with rear roller RSL at work

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller for horticulture

    Stone buriers with rear roller for horticulture

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller for vineyards

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller for horticulture

    Stone buriers with rear roller for horticulture

    Stone buriers with rear roller for horticulture Massano

    Stone buriers with rear roller for horticulture Massano

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller for vineyards

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller for horticulture

    Stone buriers with rear roller for horticulture

    Stone buriers with rear roller for horticulture

    Stone buriers with rear roller for horticulture

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Massano agricultural machinery - Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL at work

    Stone buriers with rear roller type RSL

    Stone buriers with rear roller type RSL

  • Stone burier with rear roller RSL at work

  • Download pdf technical file of Stone burier with rear roller RSL

    Stone burier with rear roller type RSL - Massano agricultural machinery
  • Under construction.
