fixed
for tractors from 140 to 240 HP
working width from 250 to 400 cm

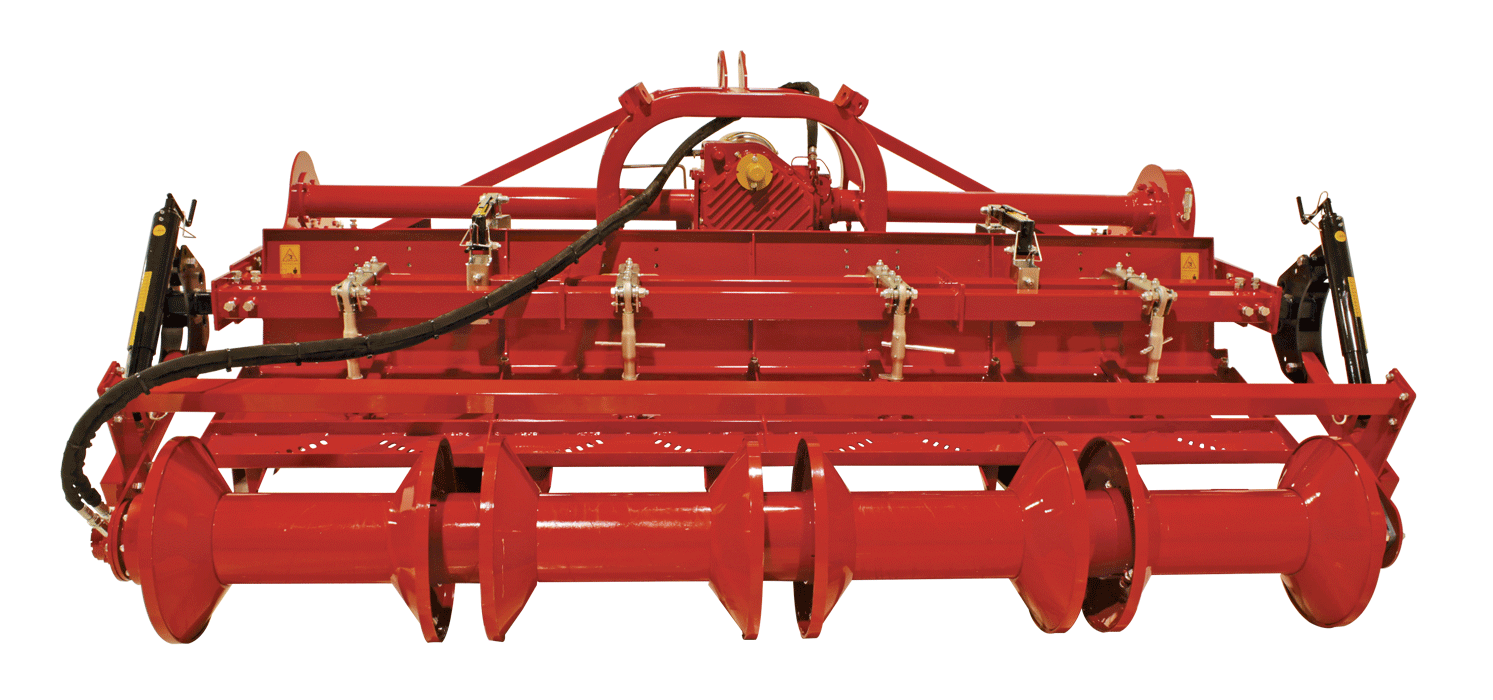

Stone buriers with bed former shaper RSE-PLUS
Massano - Stone buriers with bed former shaper RSE-PLUS
Built with a working width from 250 to 400 cm, required power from 140 to 240 HP and working depth from 15 to 30 cm. RSE-PLUS stone burier with bed former shaper is a professional machine used mainly by contractors and large horticultural companies that need to work in extreme conditions.
Thanks to the modular structure of our machines it is possible to link to RSE-PLUS stone burier with bed former shaper different accessories realized on request of our customers.
Standard Equipment:
- 3-Point linkage cat. 2°-3°.
- Single speed gearbox with 1000 rpm PTO.
- Side gears drive in oil bath.
- 4/6 blades each flange type Rotostone.
- Double frame made with special steel IMEX 700.
- Rear adjustable and self- cleaned selection grill.
- Rear Bed Former shaper with adjustable manual jacks.
- Side ploughs adjustable.
- Rear wheels with adjustable manual jacks.
- Front discs conveyor ploughs.
- Cardan shaft with 4 discs clutch 1” 3/8 Z6.
- “CE” Safety guards.
-

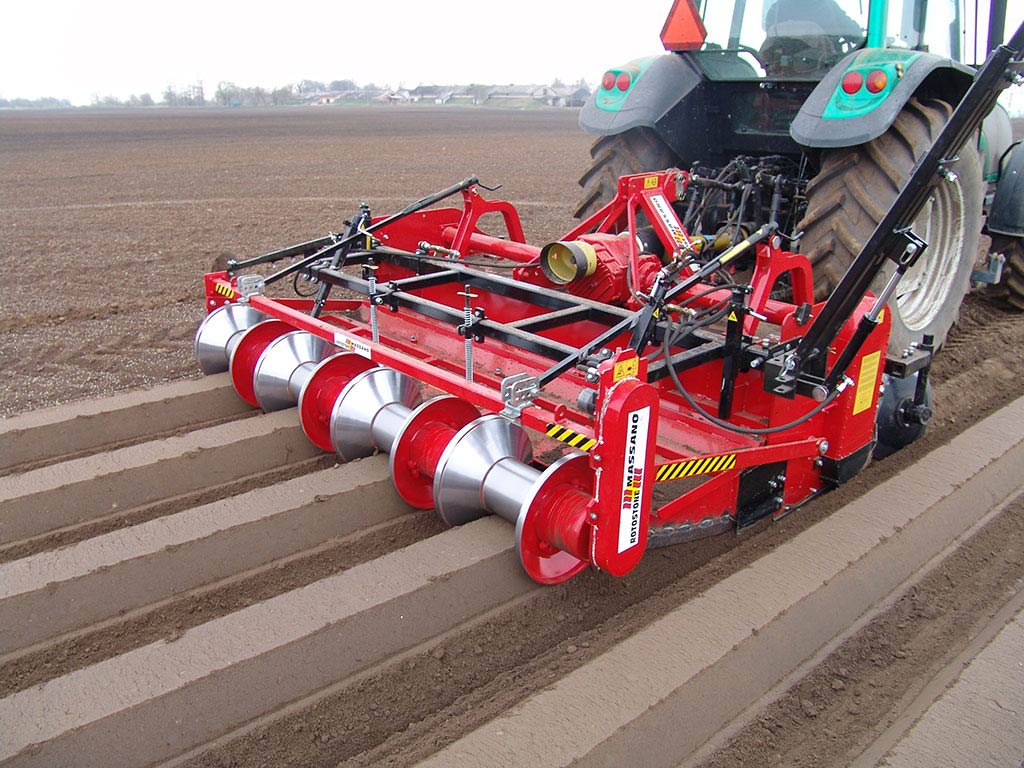

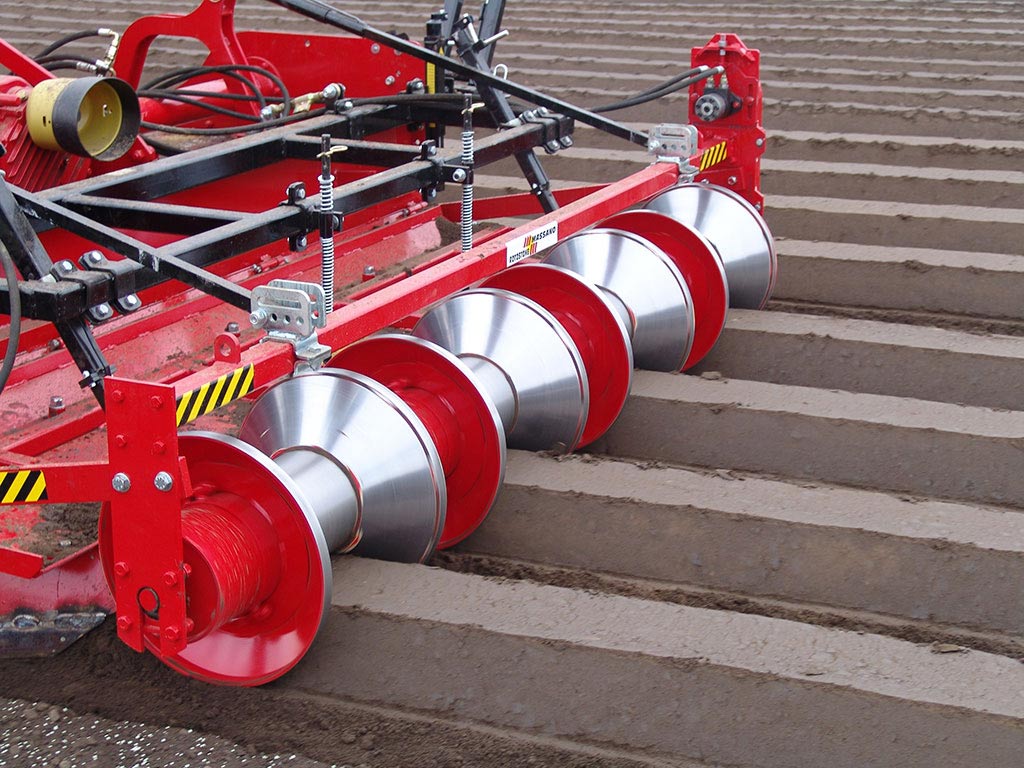

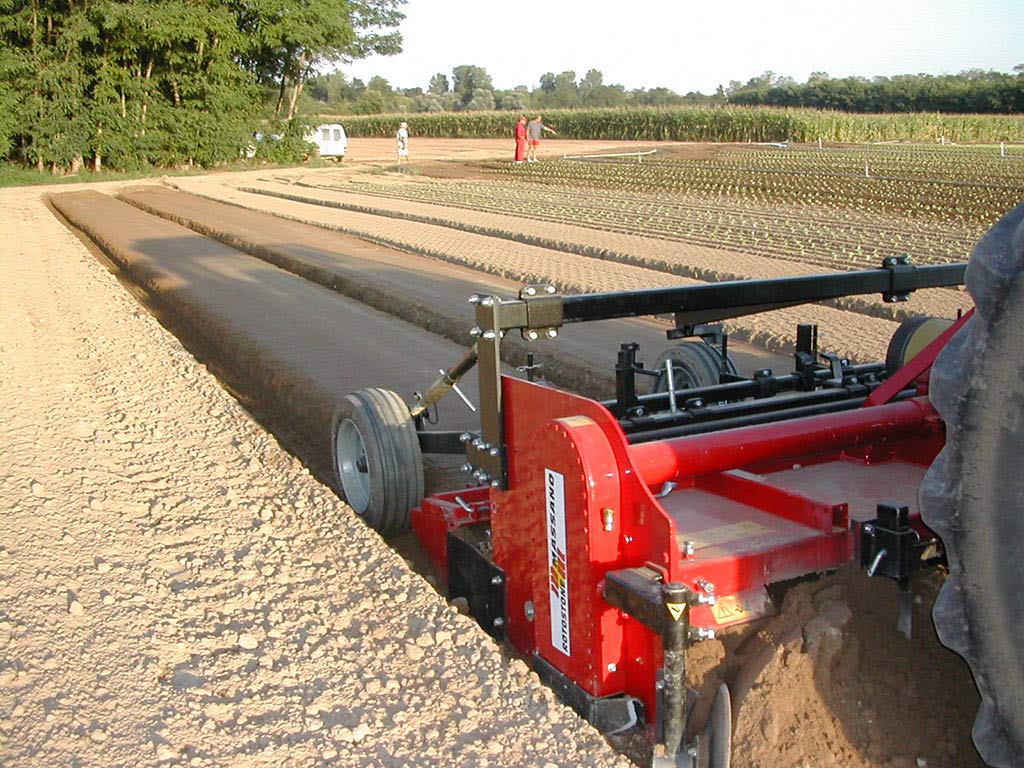

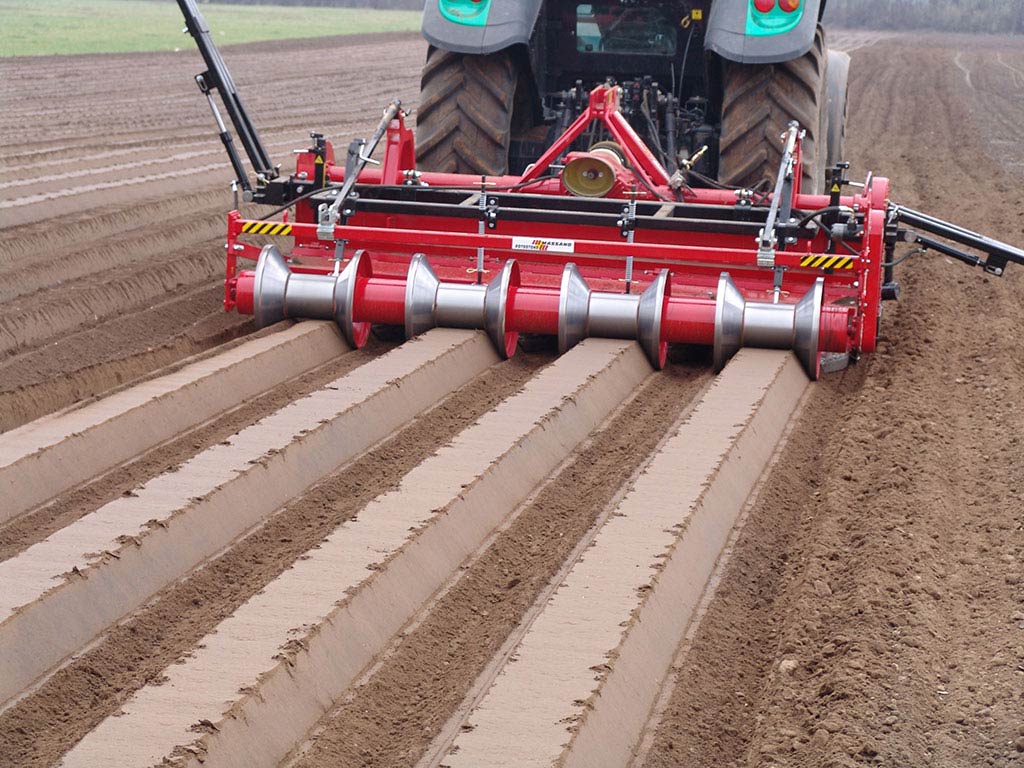

Stone burier with bed former shaper RSE-PLUS at work

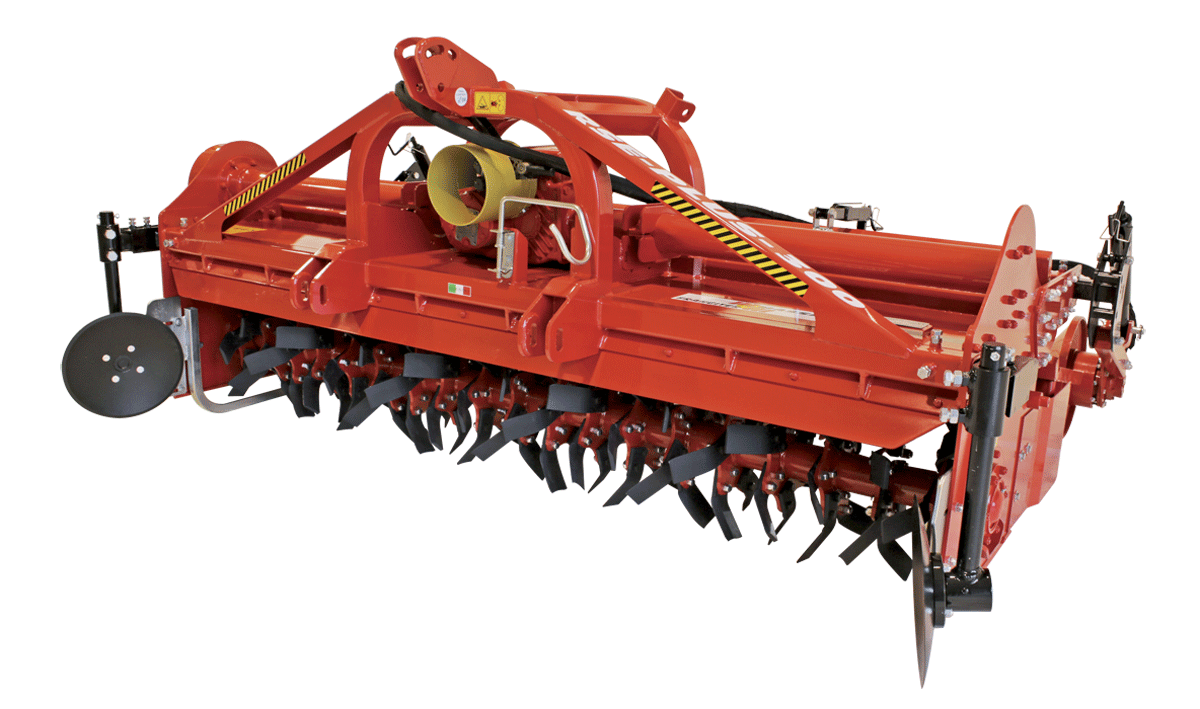

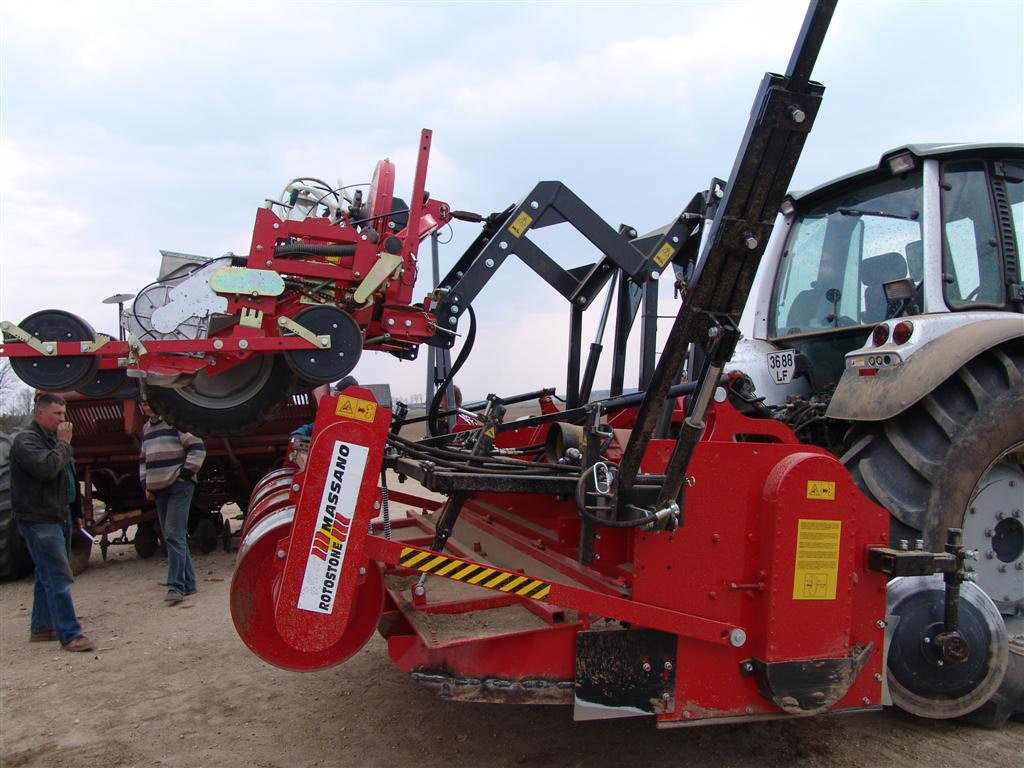

Stone buriers with bed former shaper RSE-PLUS

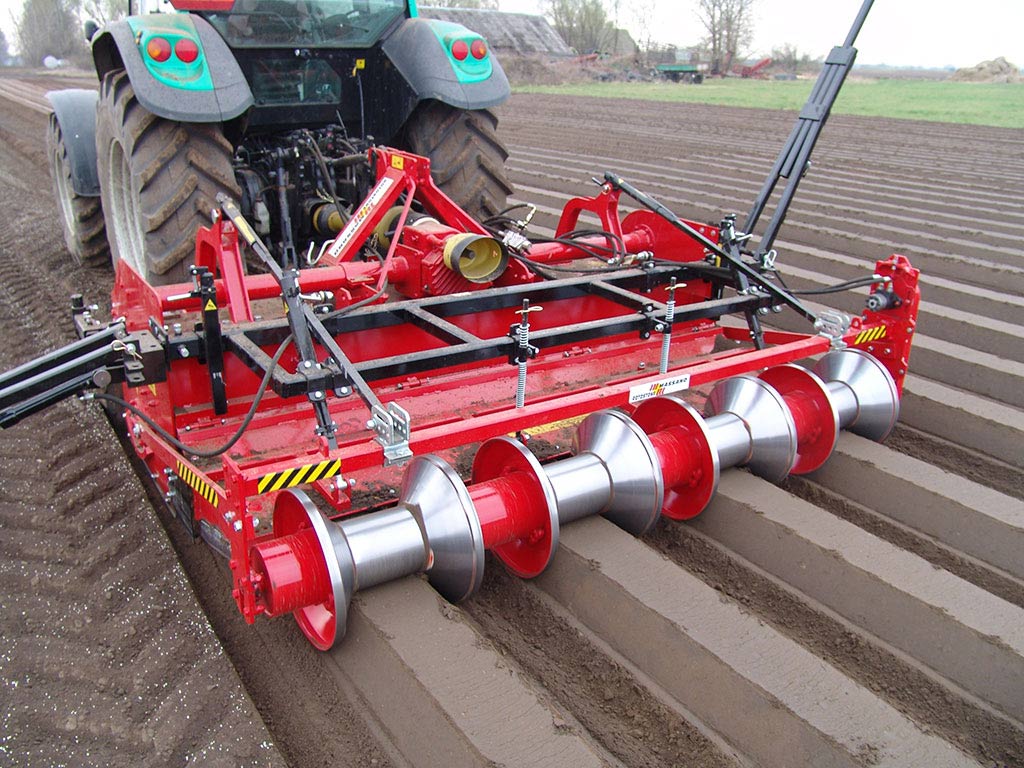

Stone buriers with bed former shaper RSE-PLUS at work
Massano - Machines for horticulture
Massano s.n.c. - agricultural machinery
Stone buriers with bed former shaper RSE-PLUS

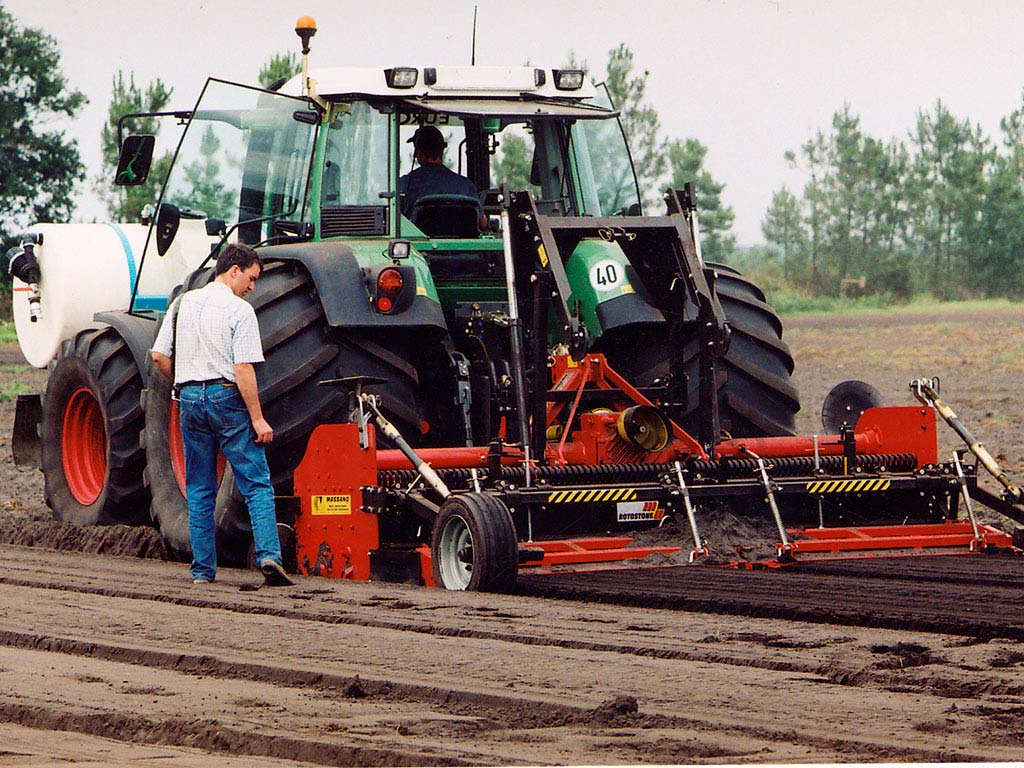

Stone buriers with bed former shaper RSE-PLUS at work
Massano - Machines for horticulture

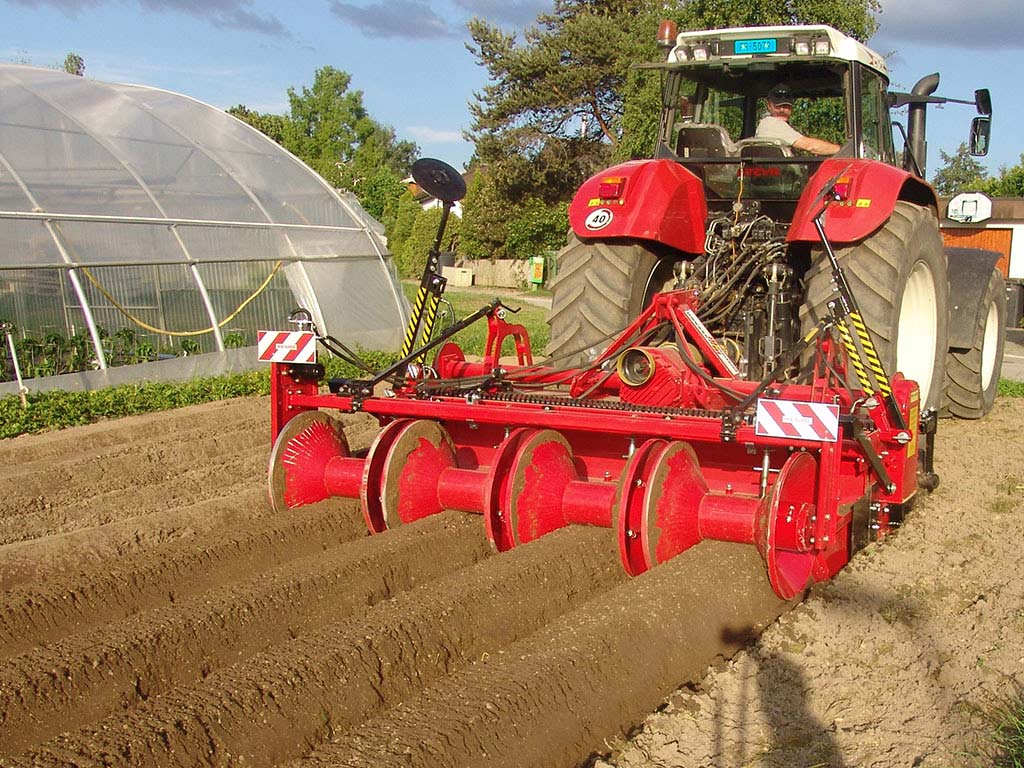

Stone buriers with bed former shaper RSE-PLUS at work
Stone buriers with bed former shaper RSE-PLUS
-

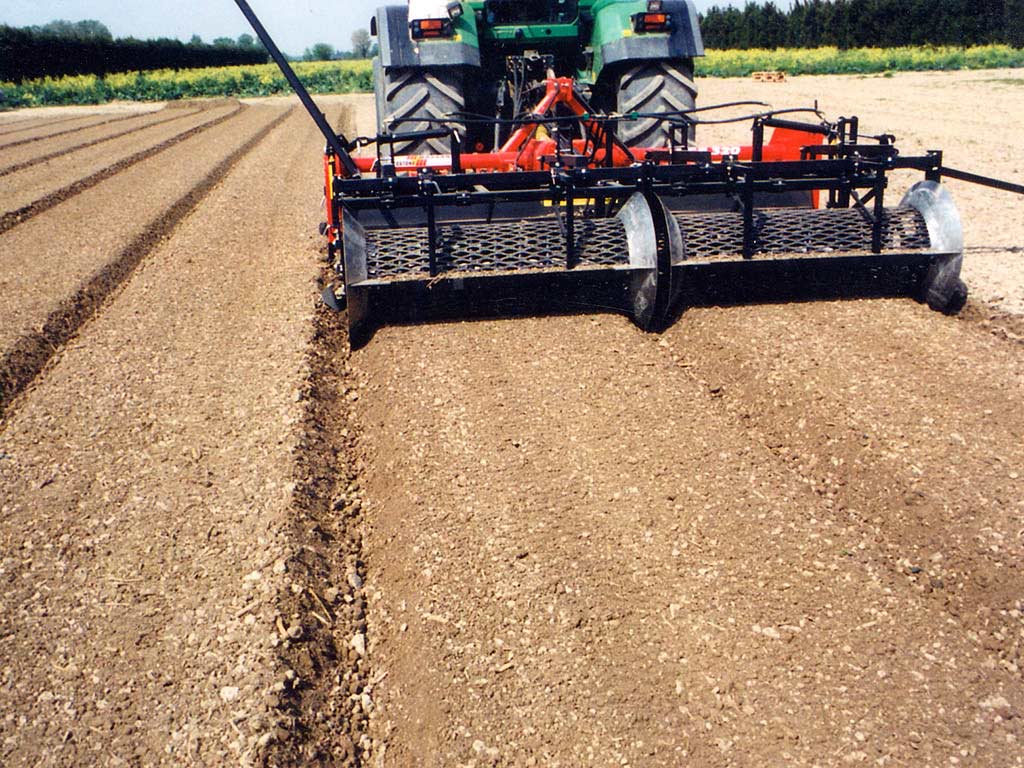

Stone burier with bed former shaper RSE-PLUS at work
-

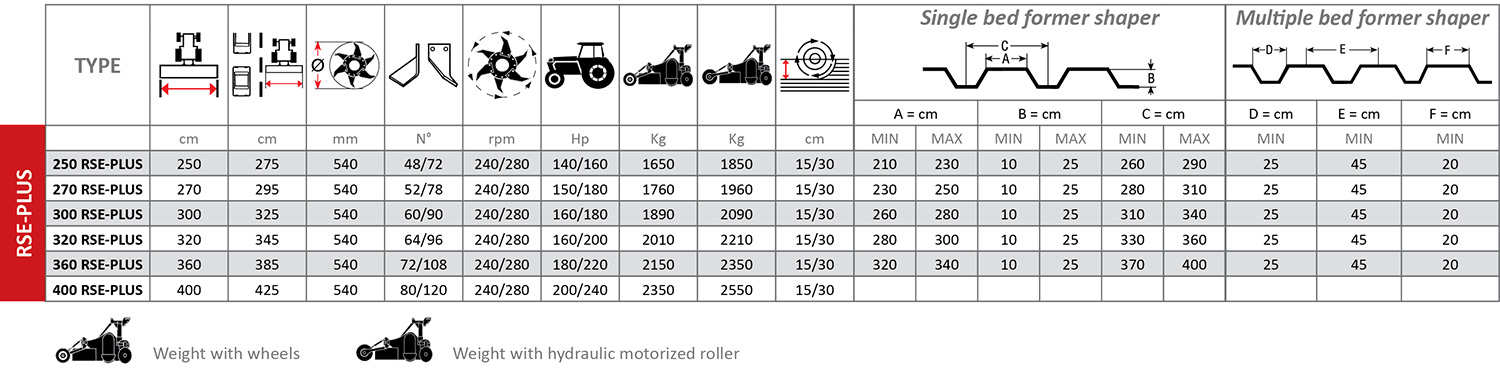

Download pdf technical file of stone burier with bed former shaper RSE PLUS
-
Under construction.
