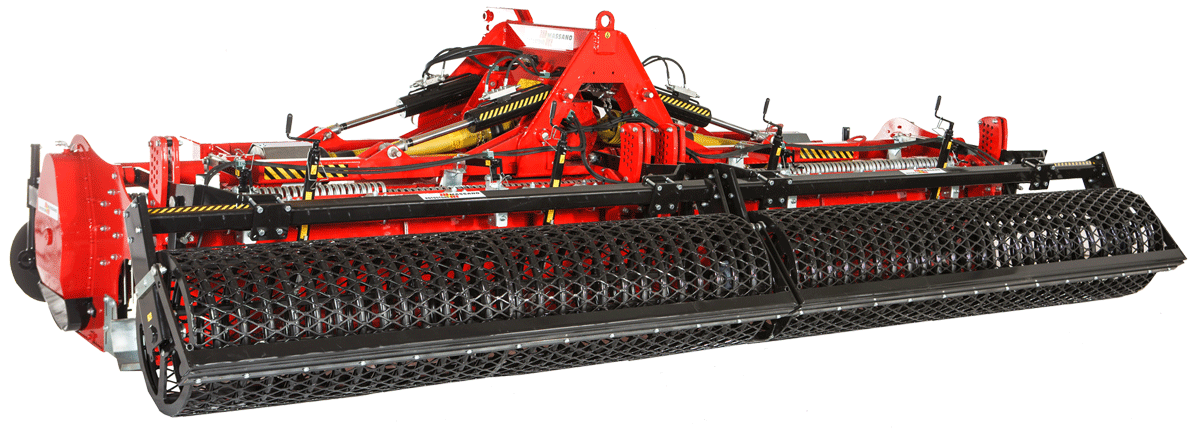

Stone burier with rear roller type TITAN

folding
for tractors from 180 to 360 HP
working width from 420 to 720 cm

Stone buriers with rear roller type TITAN

Stone buriers with rear roller type TITAN

Stone buriers with rear roller type TITAN - Massano s.n.c.

Stone buriers with rear roller type TITAN - Massano s.n.c.



Built with a working width from 420 to 720 cm, required power from 180 a 360 HP and working depth from 15 a 30 cm. ROTOSTONE TITAN RSE is a series of folding stones and clods buriers for contractors and large companies.

Its particular frame design allows to limit the size during transport: 2,8 meters for 420/460/500/540 models and 3 meters for 600 & 720 models. Designed to work in soils with stones that have a diameter from 20 to 25 cm.




Standard Equipment

  • 3-Point linkage cat. 2°-3°.
  • Single speed gearbox with 1000 rpm PTO.
  • Double transmission by gears.
  • Central support bearing.
  • 4/6 blades each flange type Rotostone.
  • Double frame made with special steel IMEX 700.
  • Adjustable and self- cleaned selection grill.
  • Rear bonnet adjustment with adjustable manual jacks.
  • Rear perforated metal roller Ø 600 mm (40 cm longer than the machine).
  • Pin and hole adjustment roller.
  • Folding frame with 4-hydraulic cylinders.
  • Side Cardan shaft with 4 discs clutch.
  • Central cardan shaft direct 1” 3/4 Z 20.
  • "CE" Safety guards.

N.B.: It is available a model with a higher frame to work in soils with big stones.
